Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Specifications >> BA09.40-P-1000-01K Turbocharger

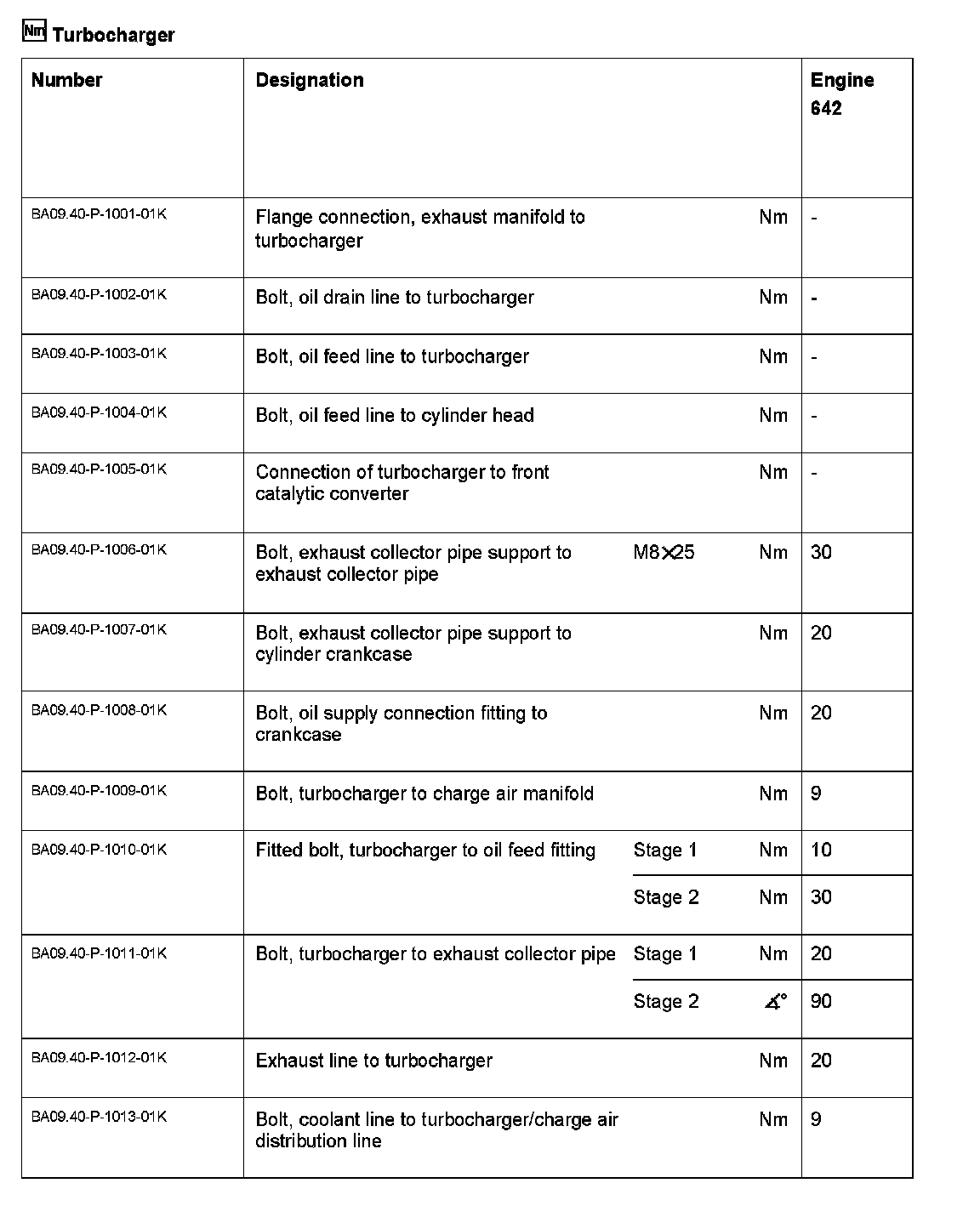

BA09.40-P-1000-01K Turbocharger



BA09.40-P-1000-01K Turbocharger
Engine 642
