GF07.16-P-0001-01TF Common Rail Diesel Injection (CDI), Location of Components



GF07.16-P-0001-01TF Common Rail Diesel Injection (CDI), Location Of Components

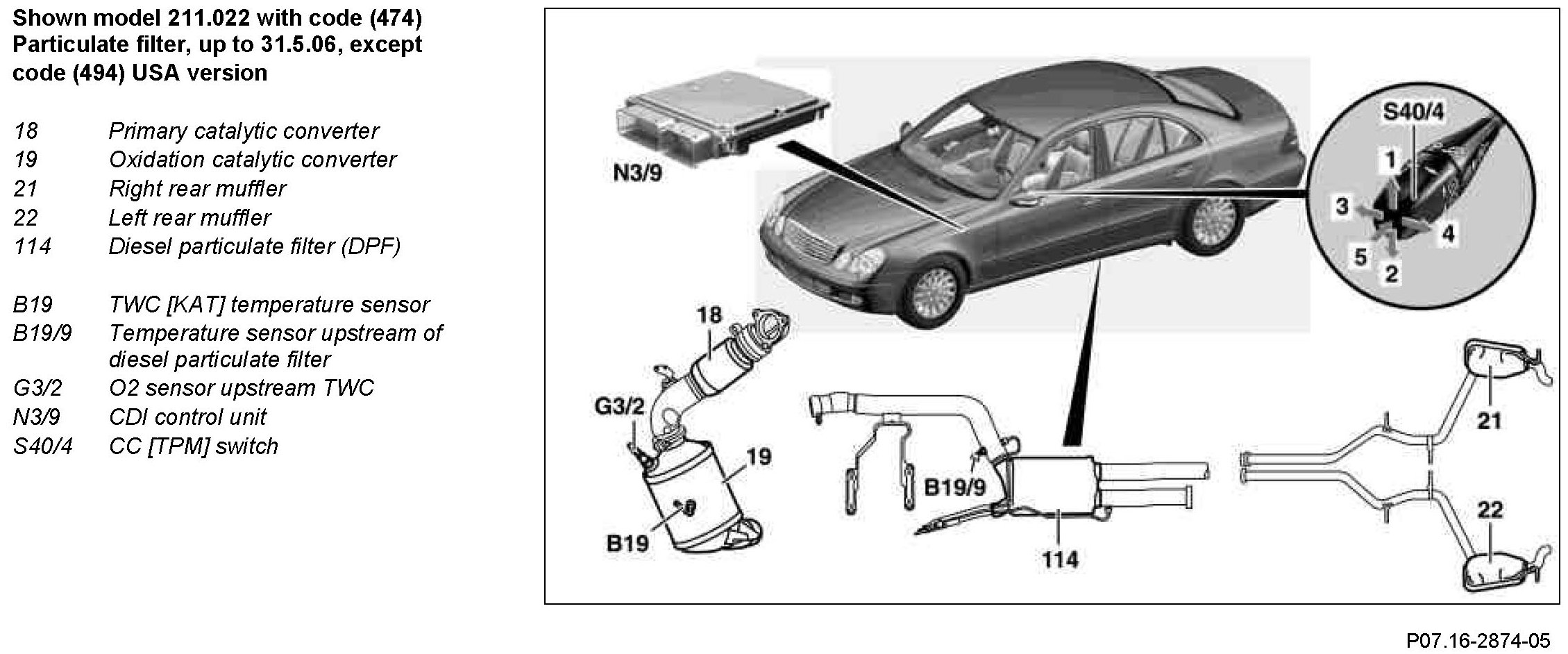

Component Identification:

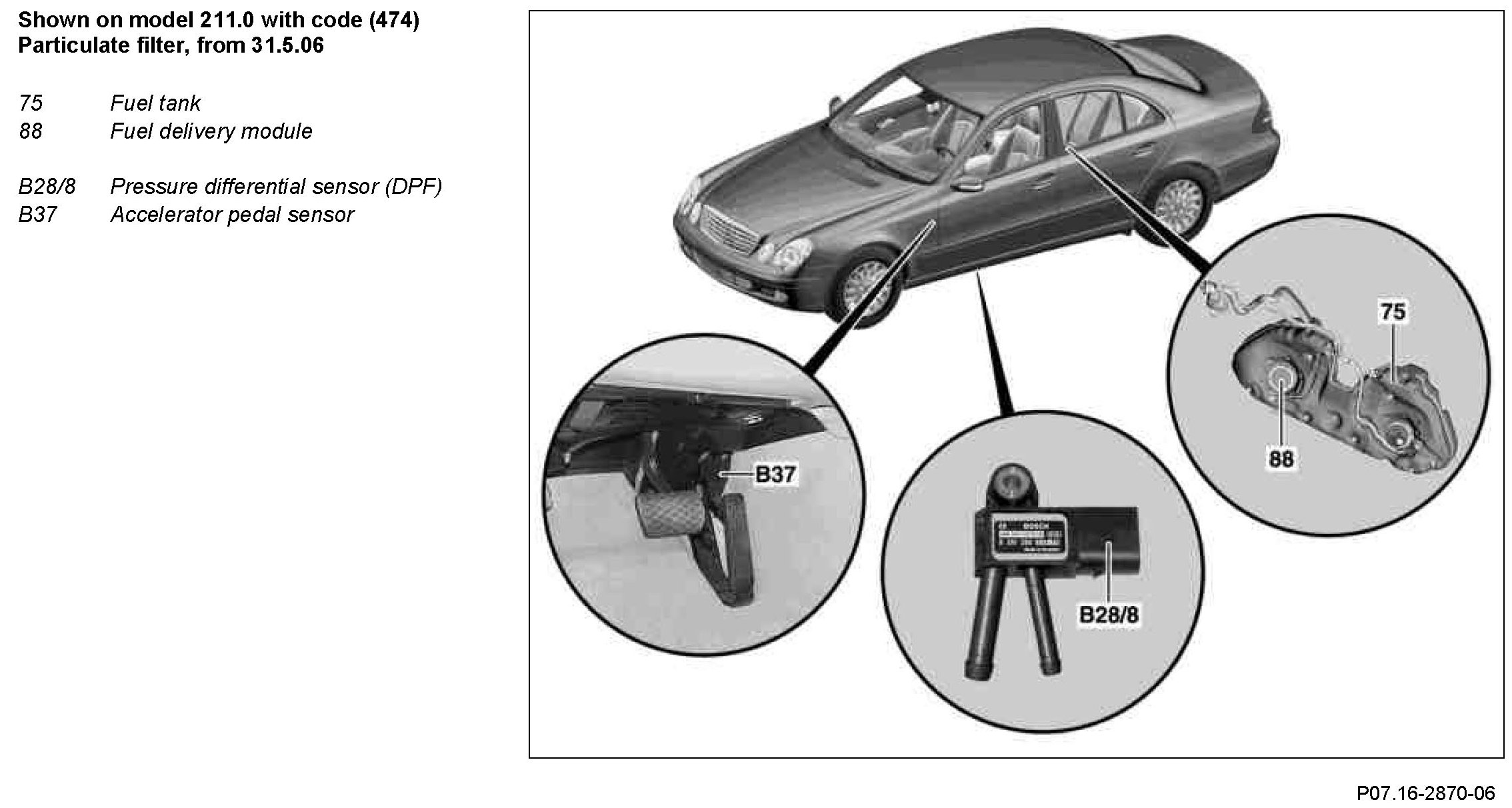

Component Identification:

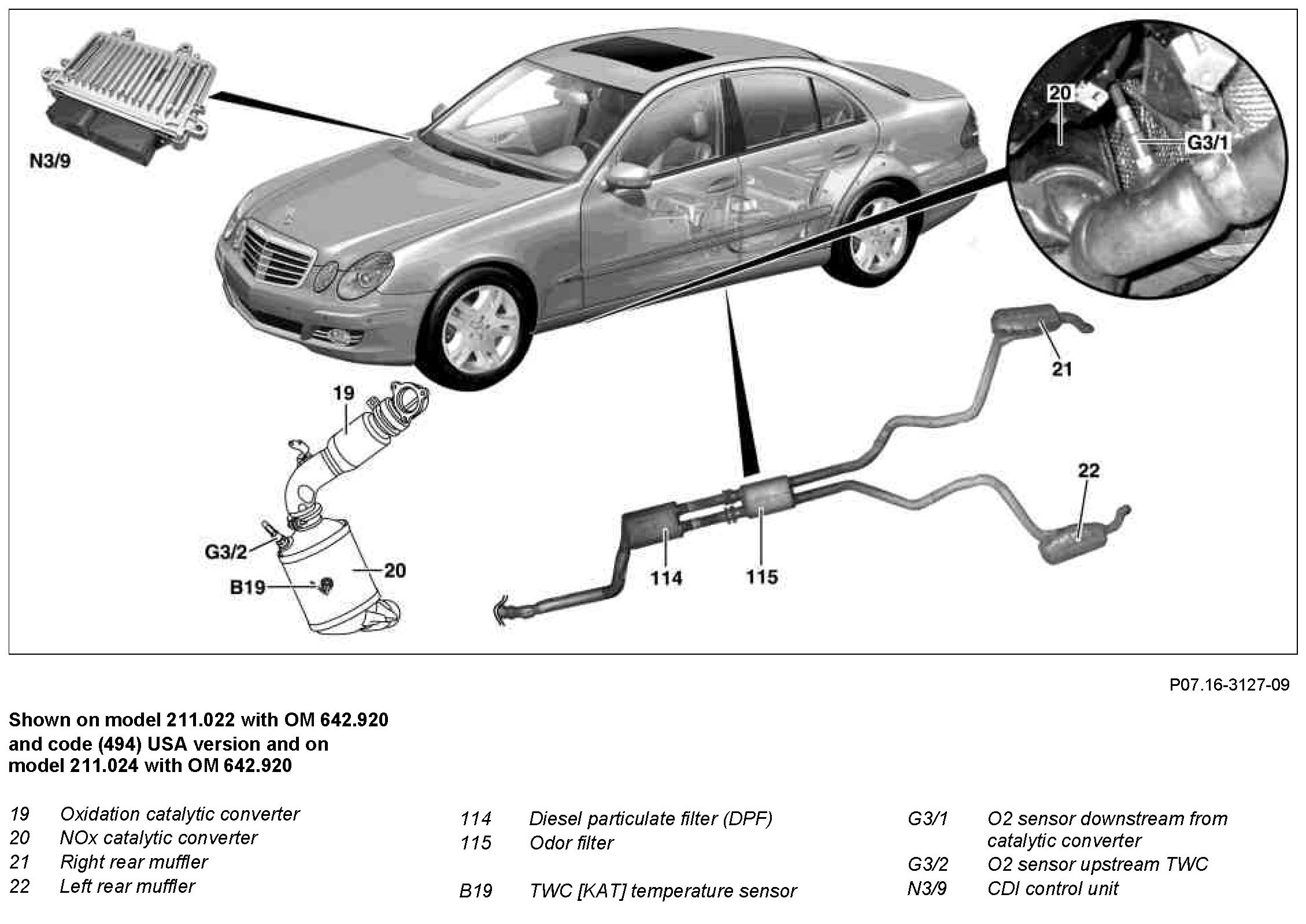

Component Identification:
