AR47.10-P-4000T Empty Fuel Tank on Systems With Faulty Fuel Pumps



AR47.10-P-4000T Empty Fuel Tank On Systems With Faulty Fuel Pumps
- with CODE (494) USA version

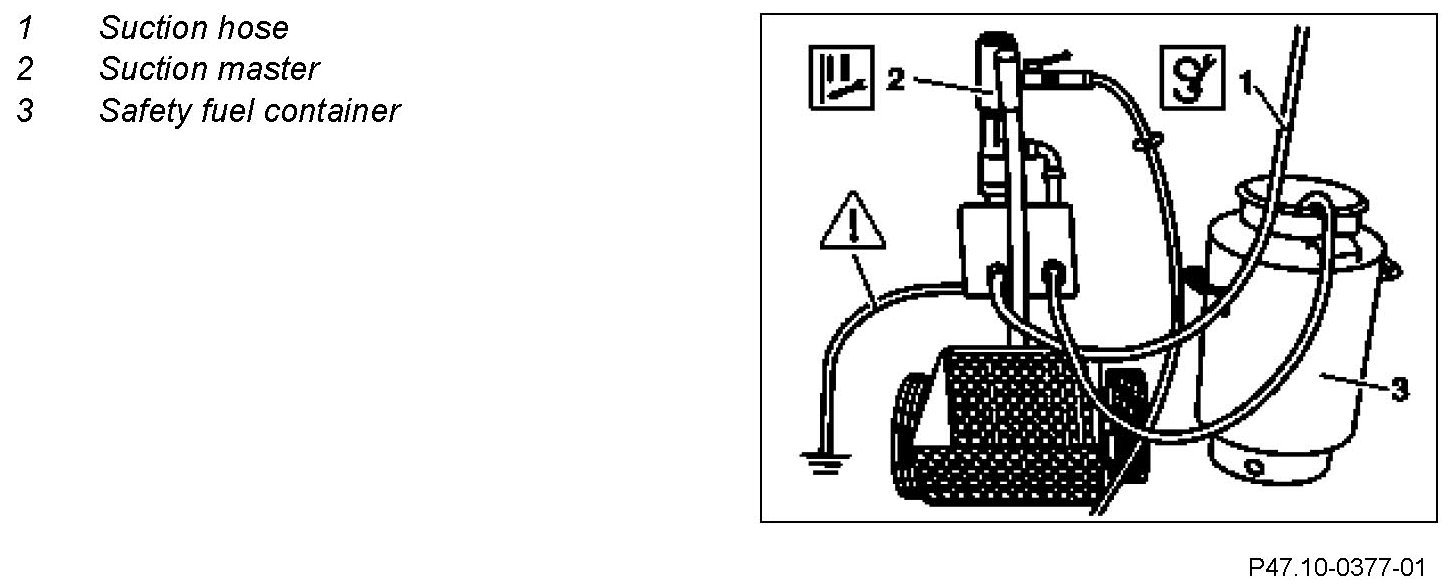

Component Identification:

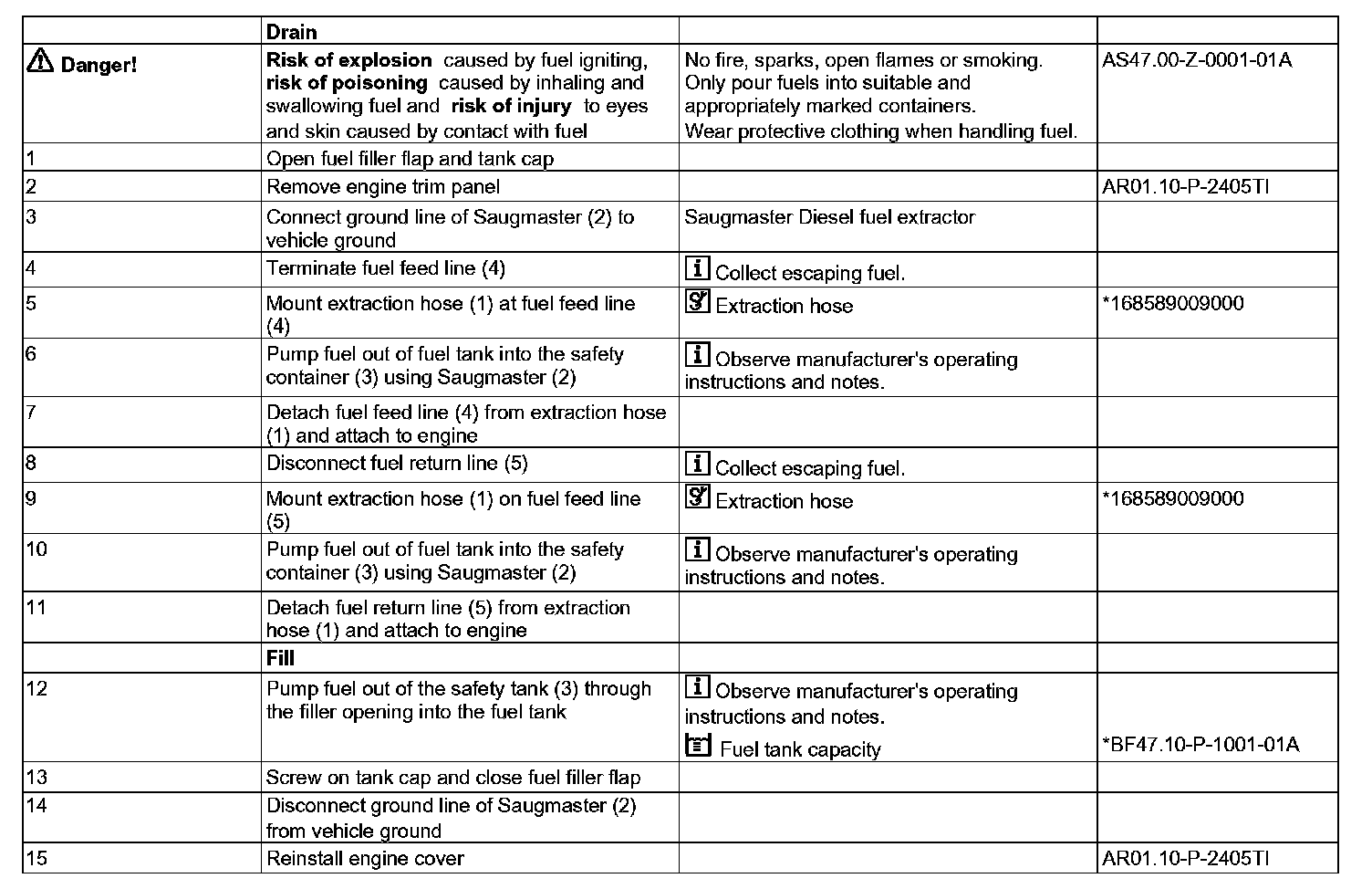

Steps 1 - 15:

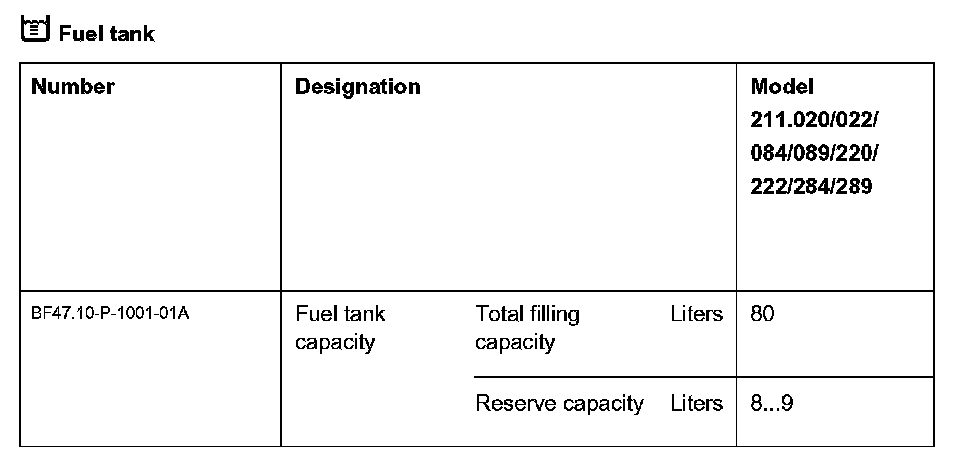

Fuel Tank:

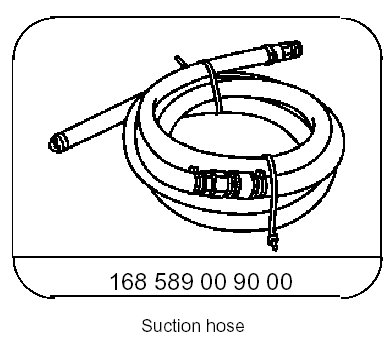

Special Tools:
