Fuel Pump: Service and Repair
AR47.20-P-5710TI Remove, Install
Fuel Pump

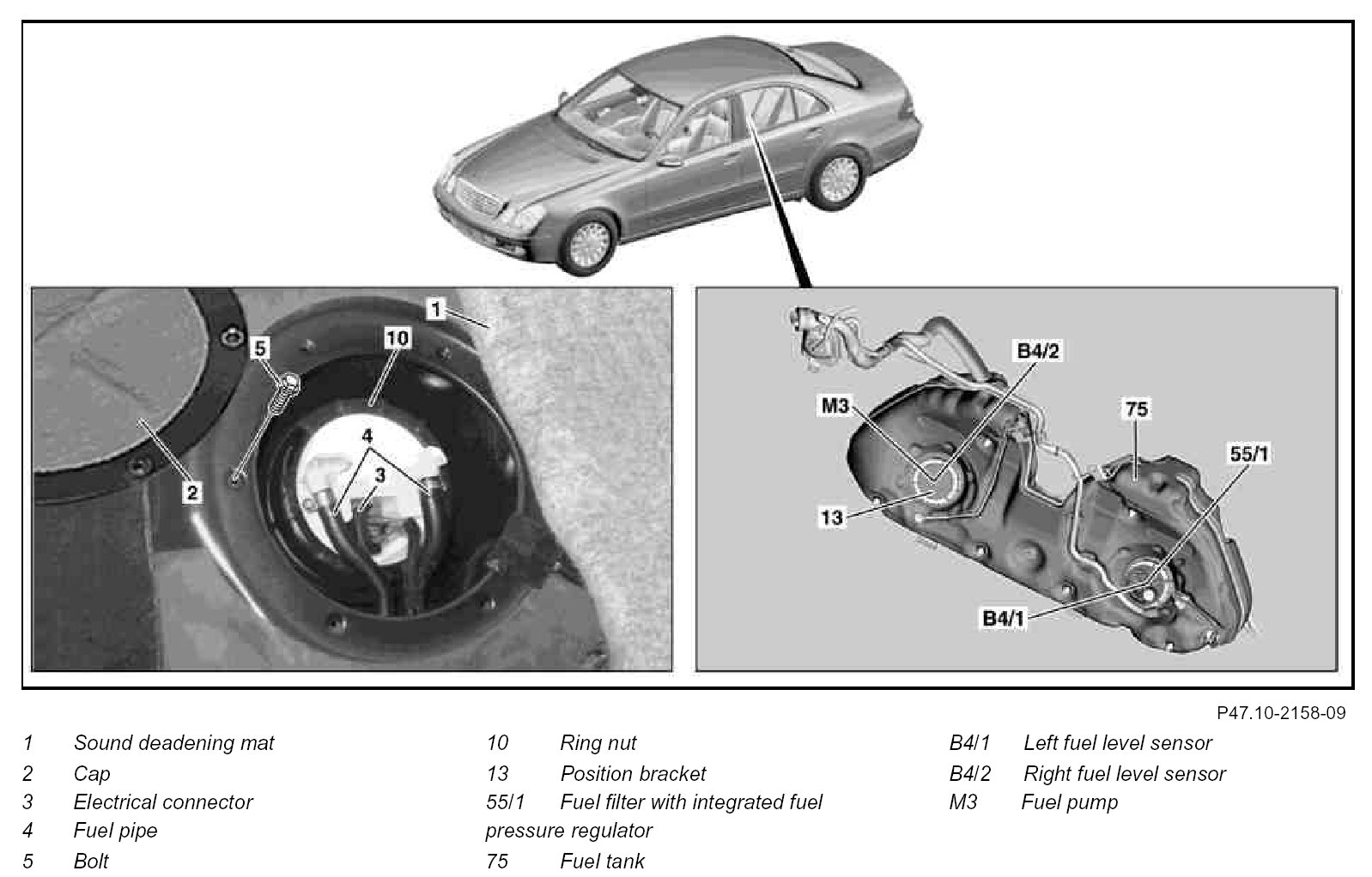

Component Identification:

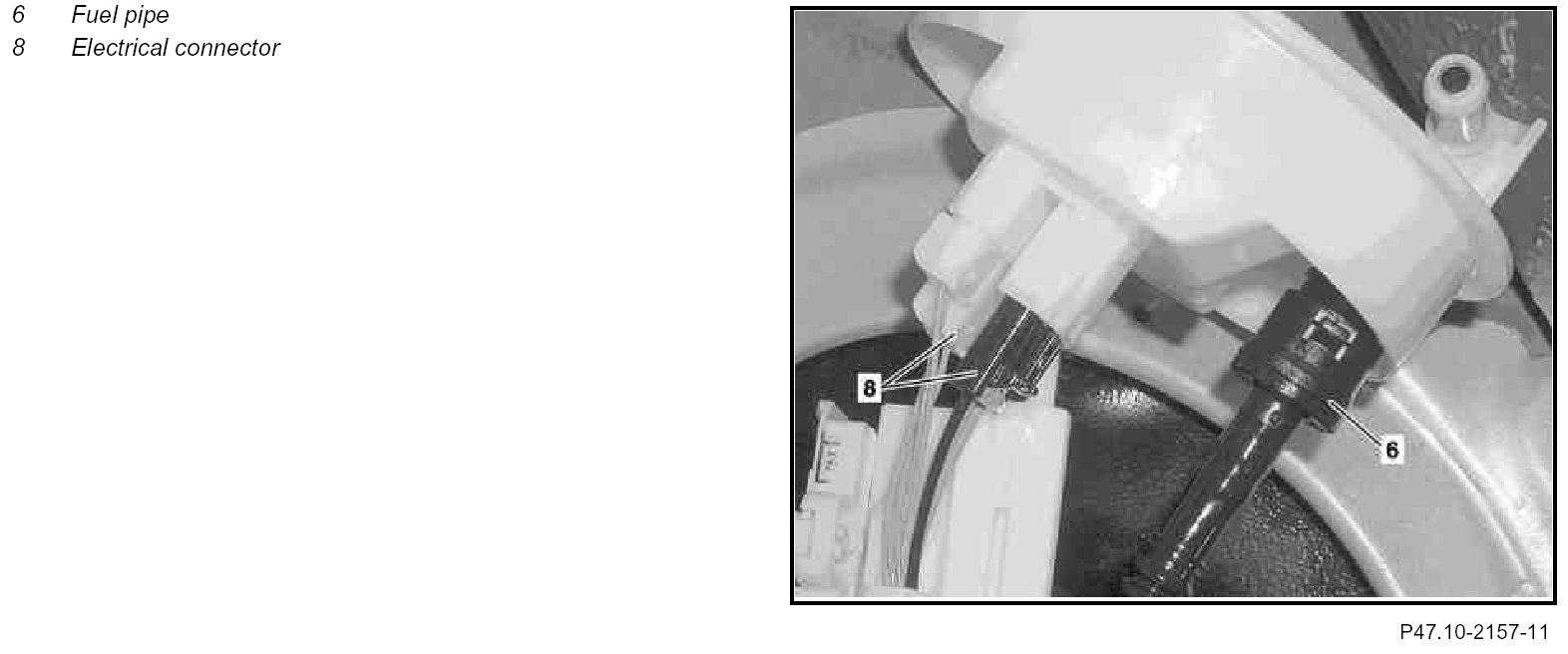

Component Identification:

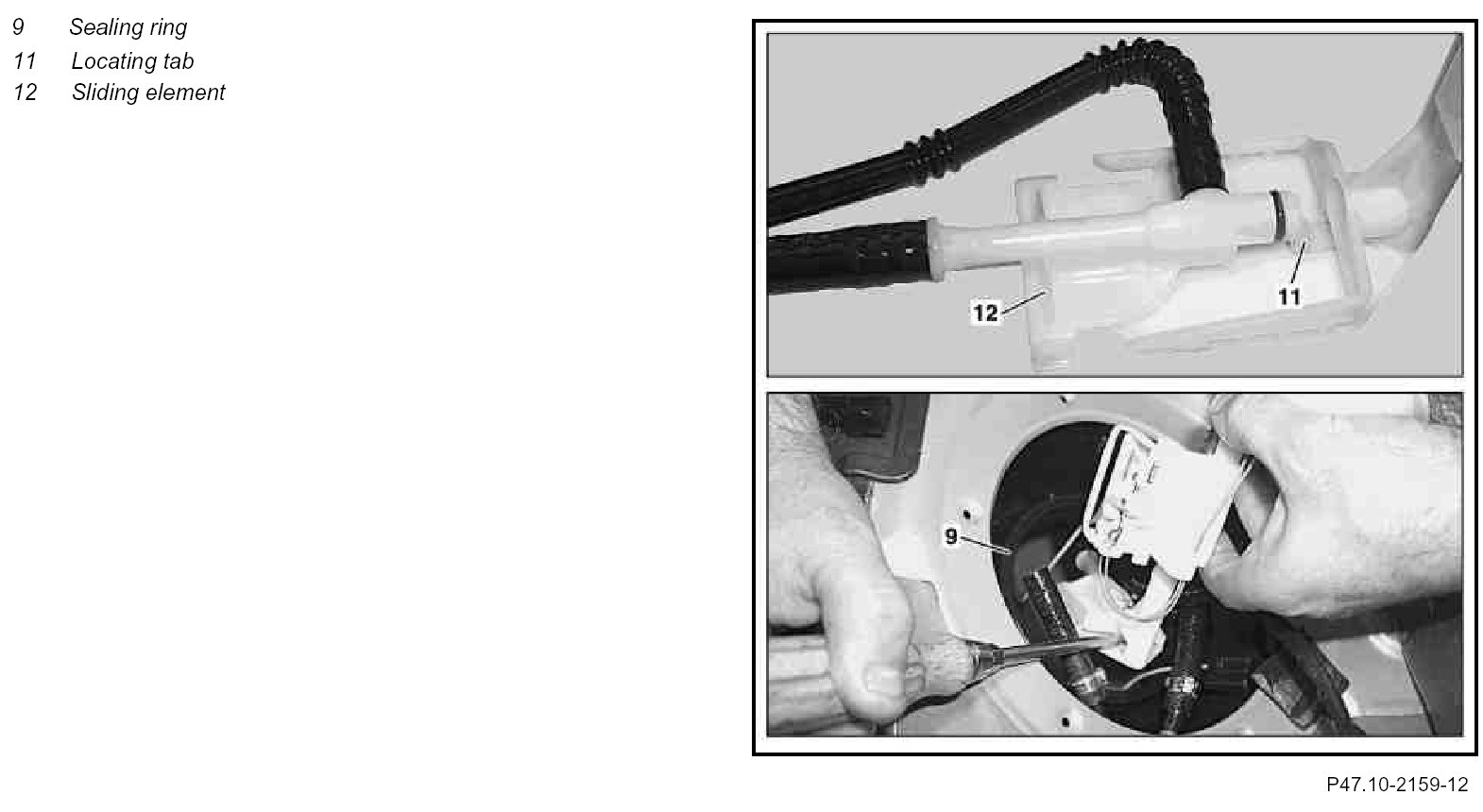

Component Identification:

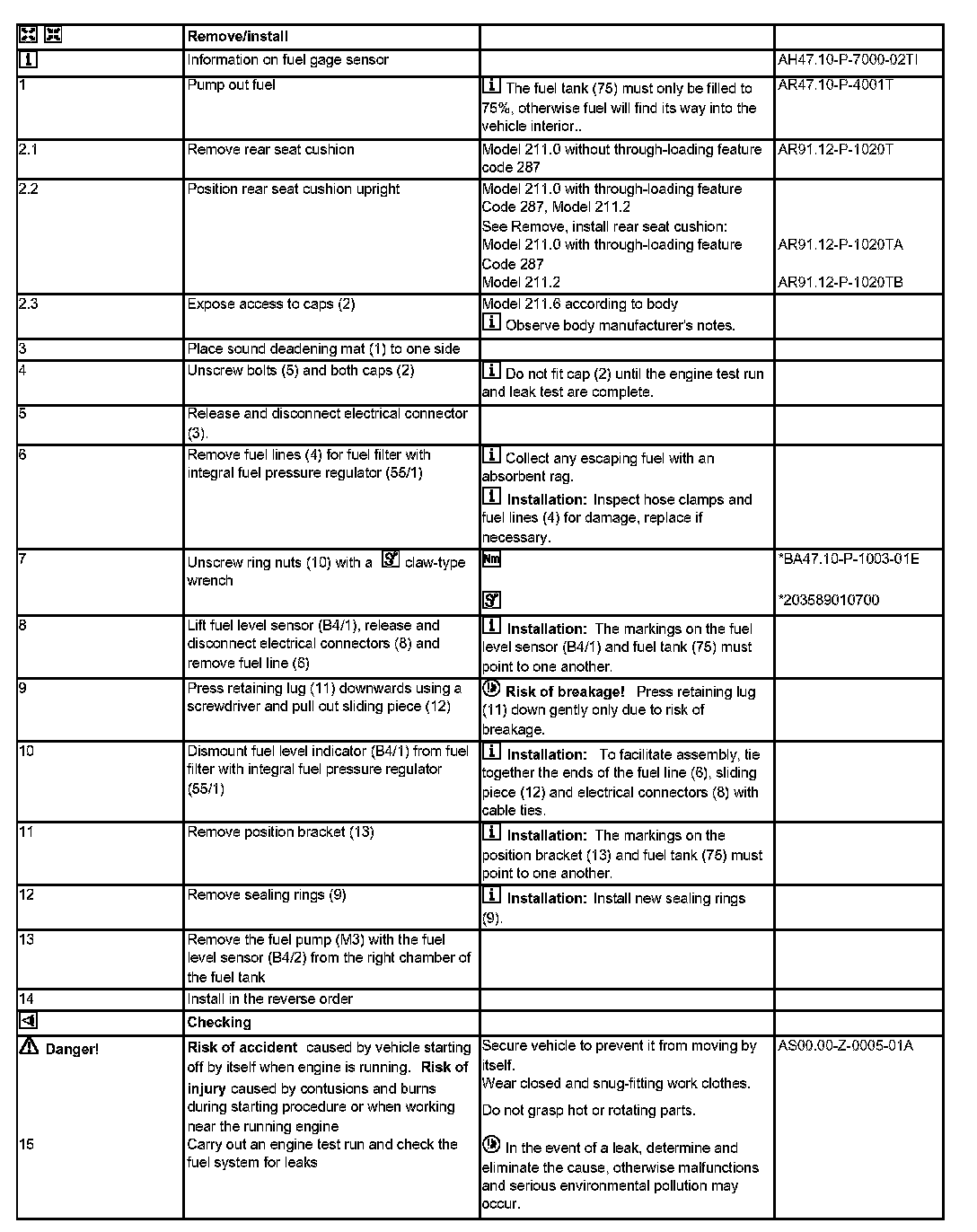

Steps 1 - 15:

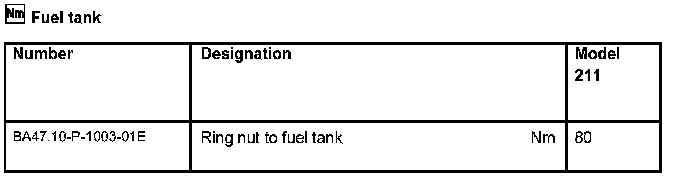

Fuel Tank:
Special Tools:
