AR07.16-P-1080TI Removing/Installing Injection Lines Of Common Rail Diesel Injection (CDI)



AR07.16-P-1080TI Removing/Installing Injection Lines Of Common Rail Diesel Injection (CDI)

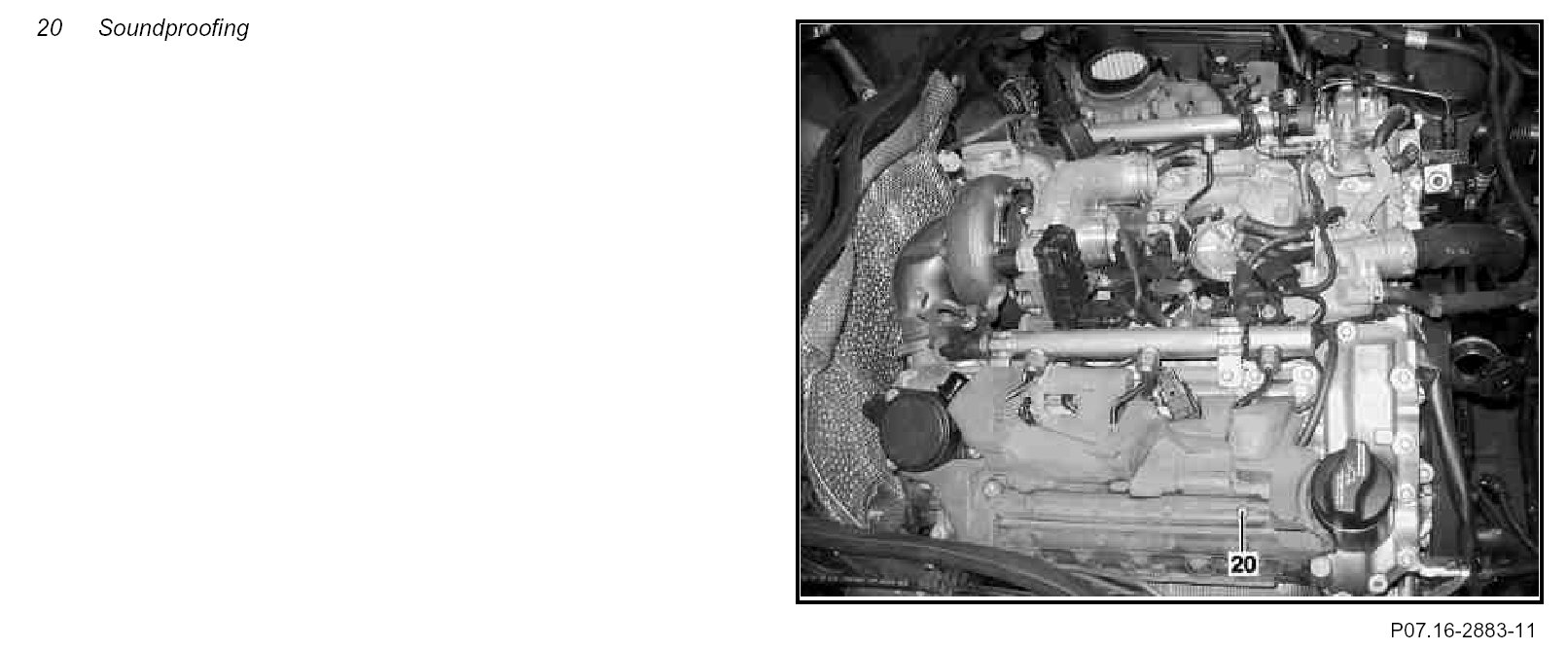

Component Identification:




Component Identification:

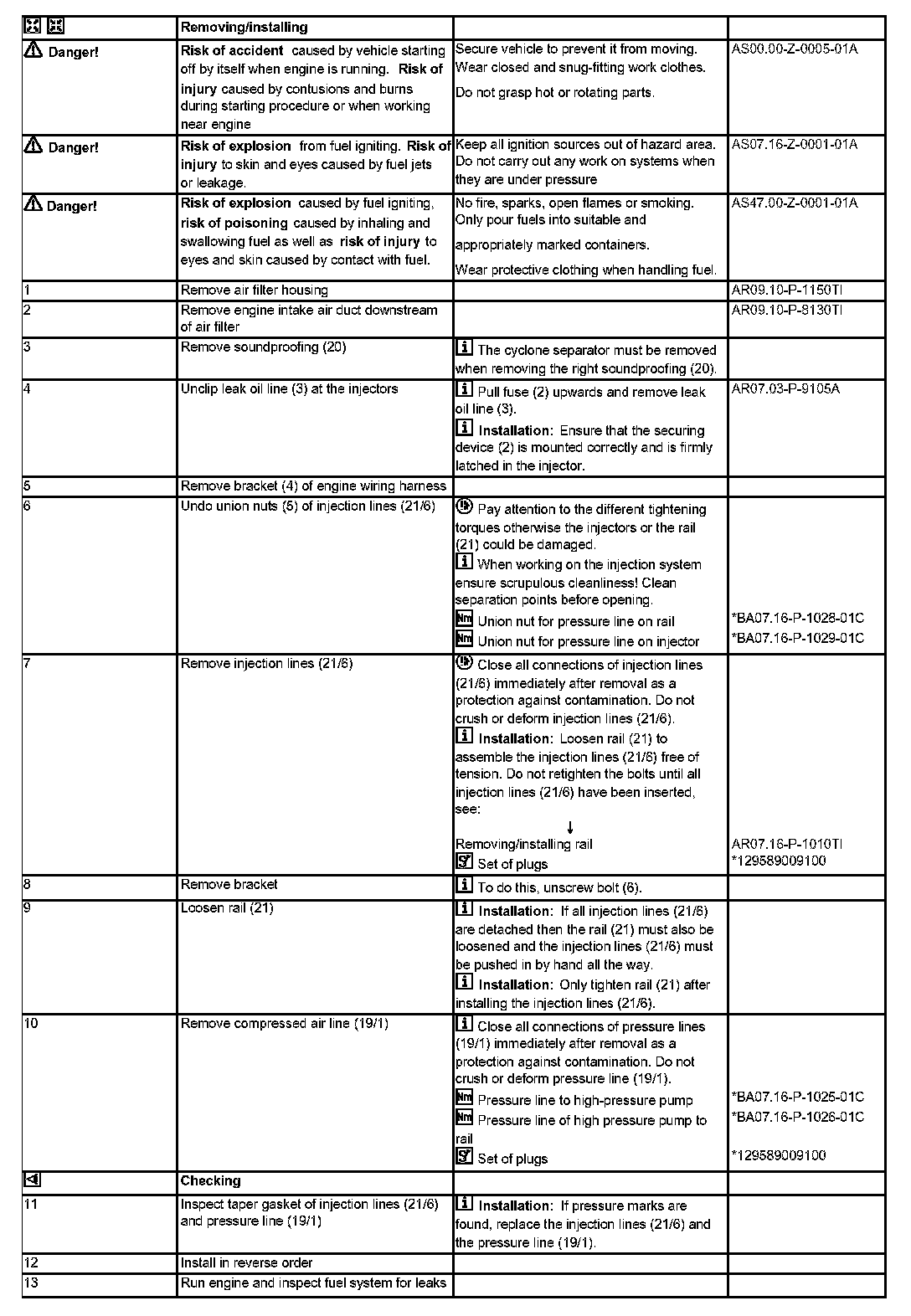

Steps 1 - 13:

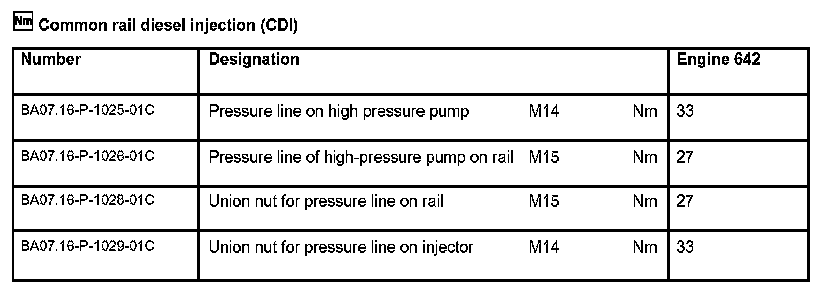

Common Rail Diesel Injection (CDI):

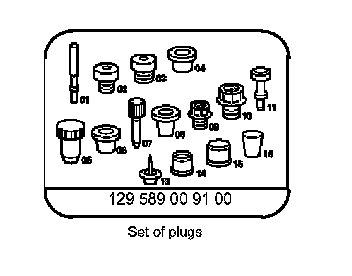

Special Tools:
