AR07.02-P-1020TI Remove High Pressure Pump, Install

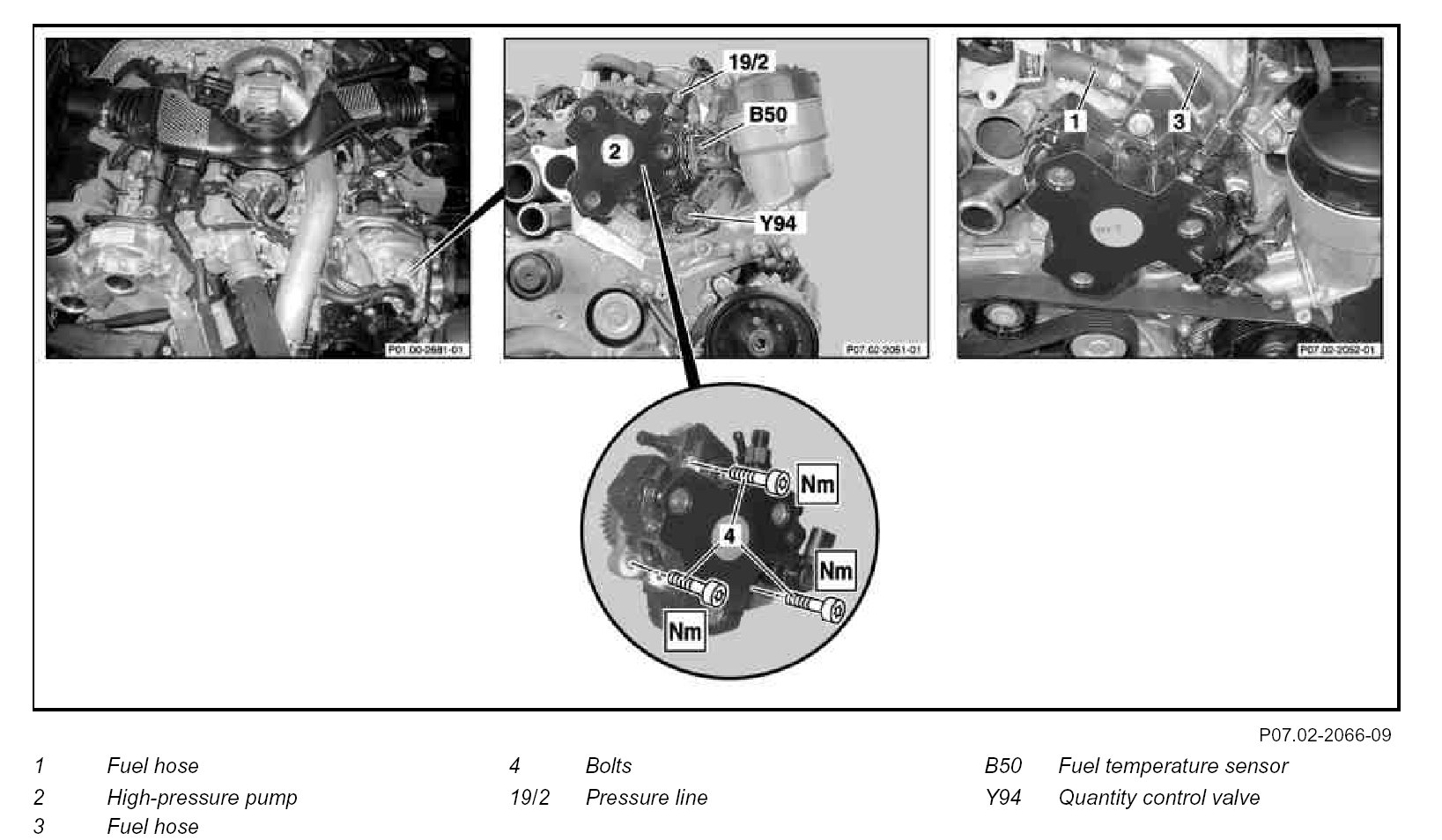

Component Identification:

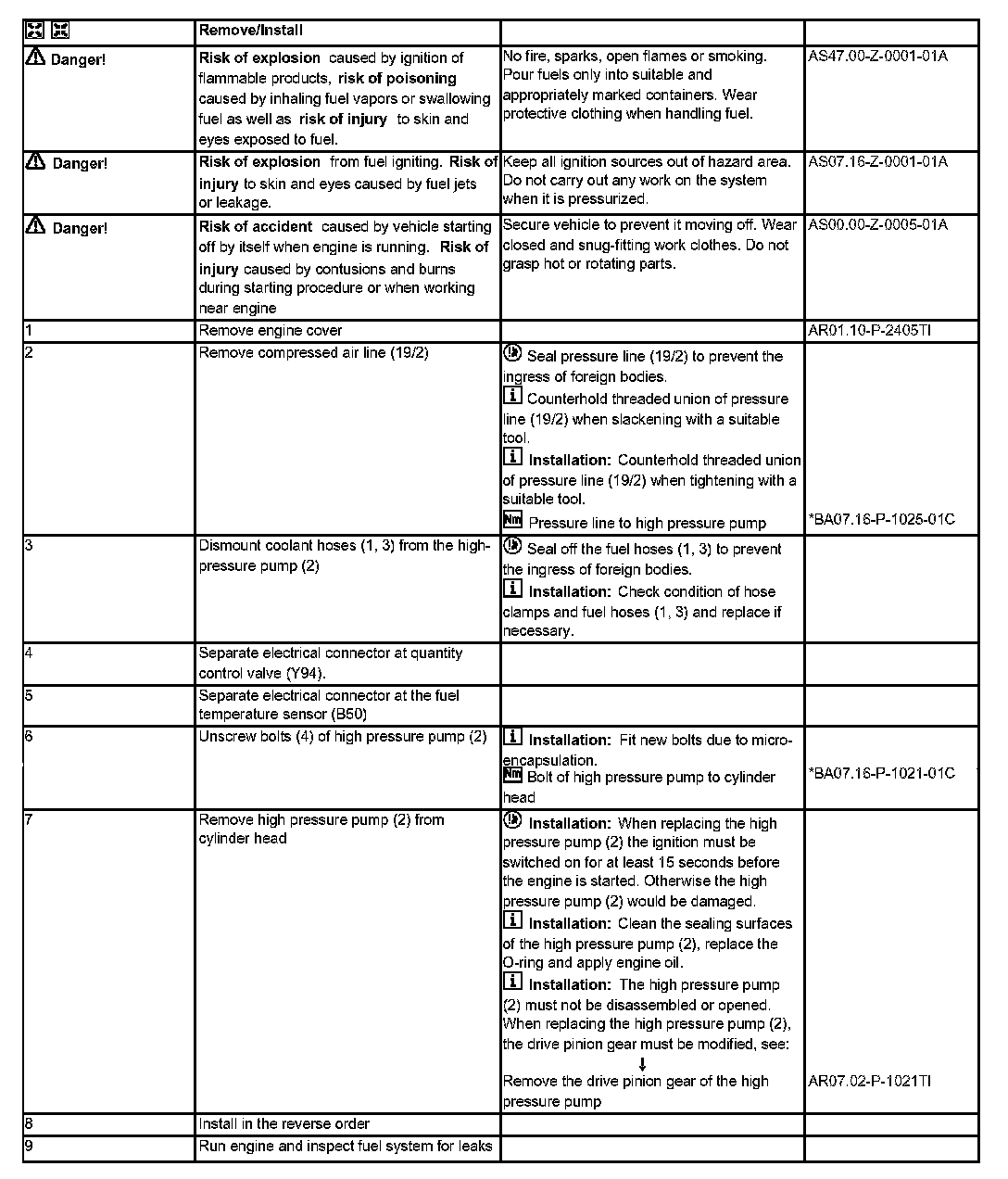

Steps 1 - 9:

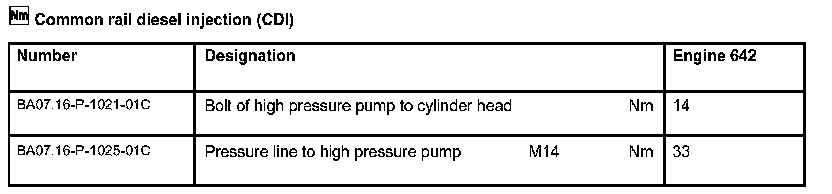

Common Rail Diesel Injection (CDI):
