GF07.16-P-0001-03TX Common Rail Diesel Injection (CDI) Function Diagram

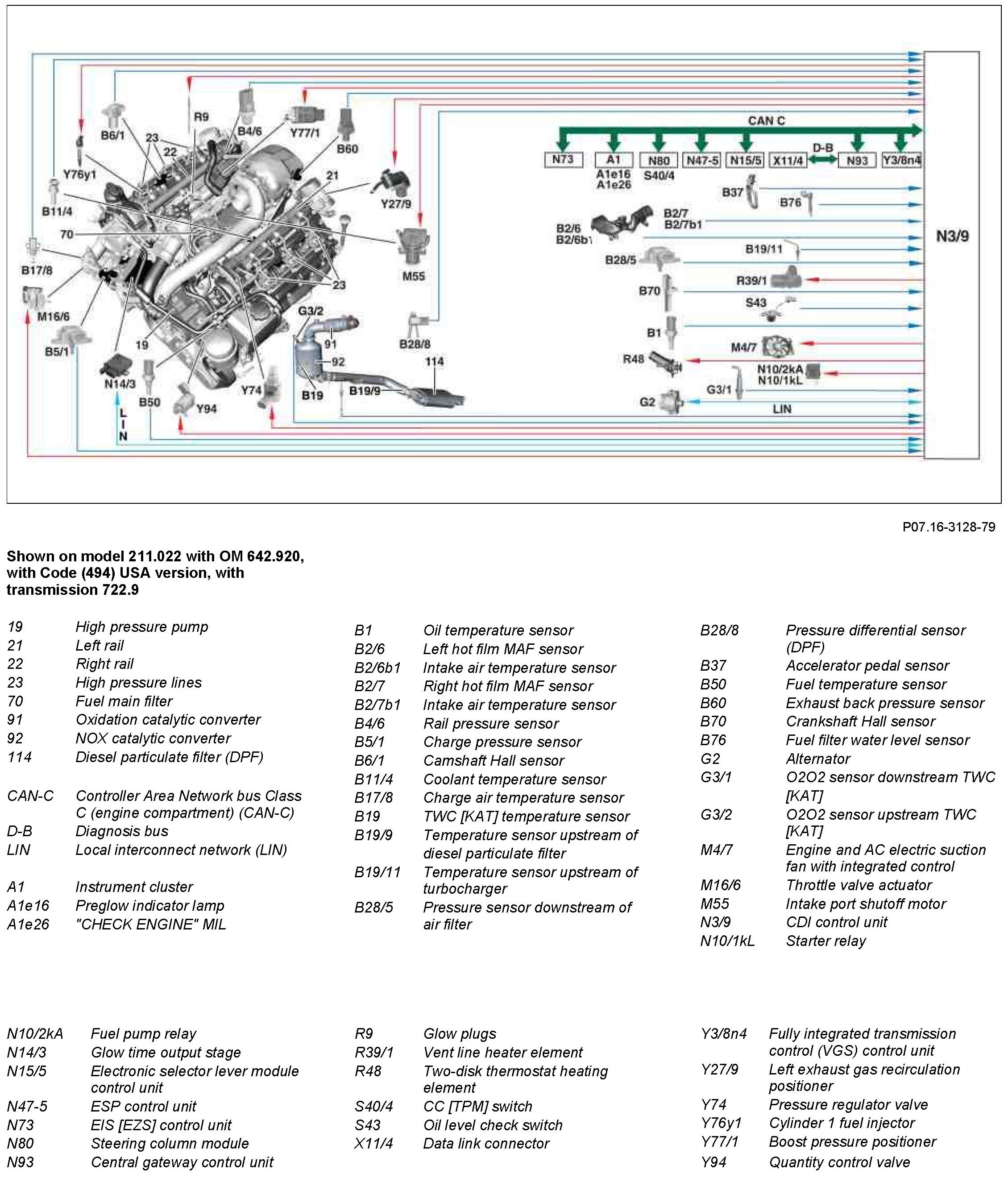

GF07.16-P-0001-03TX Common Rail Diesel Injection (CDI) Function Diagram

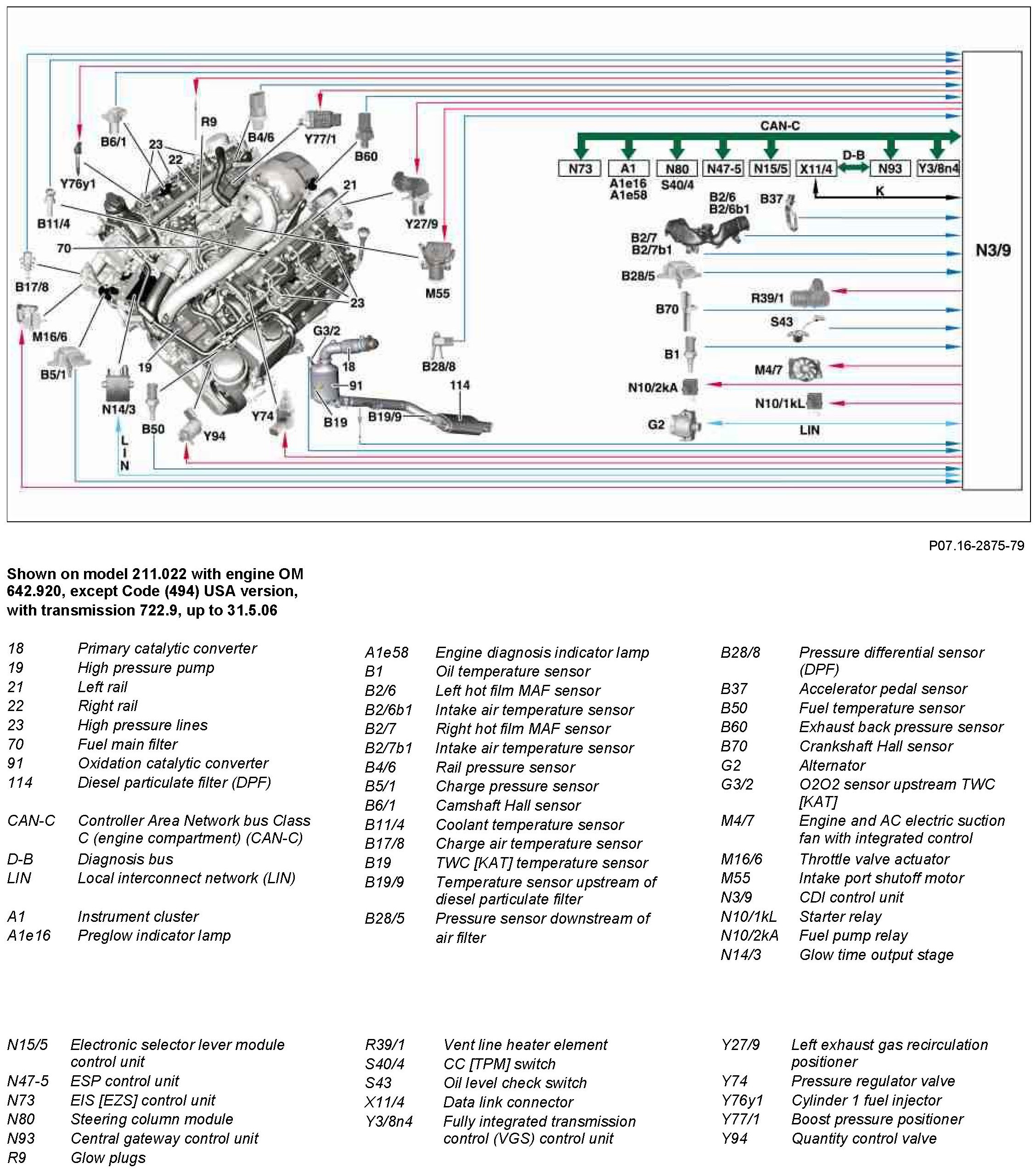

- with CODE (474) Particulate filter


Component Identification:





Component Identification:
