AR07.04-P-0004TI Remove/Install TWC Temperature Sensor
AR07.04-P-0004TI Remove/Install TWC Temperature Sensor
AR07.04-P-0004TI Remove/Install TWC Temperature Sensor

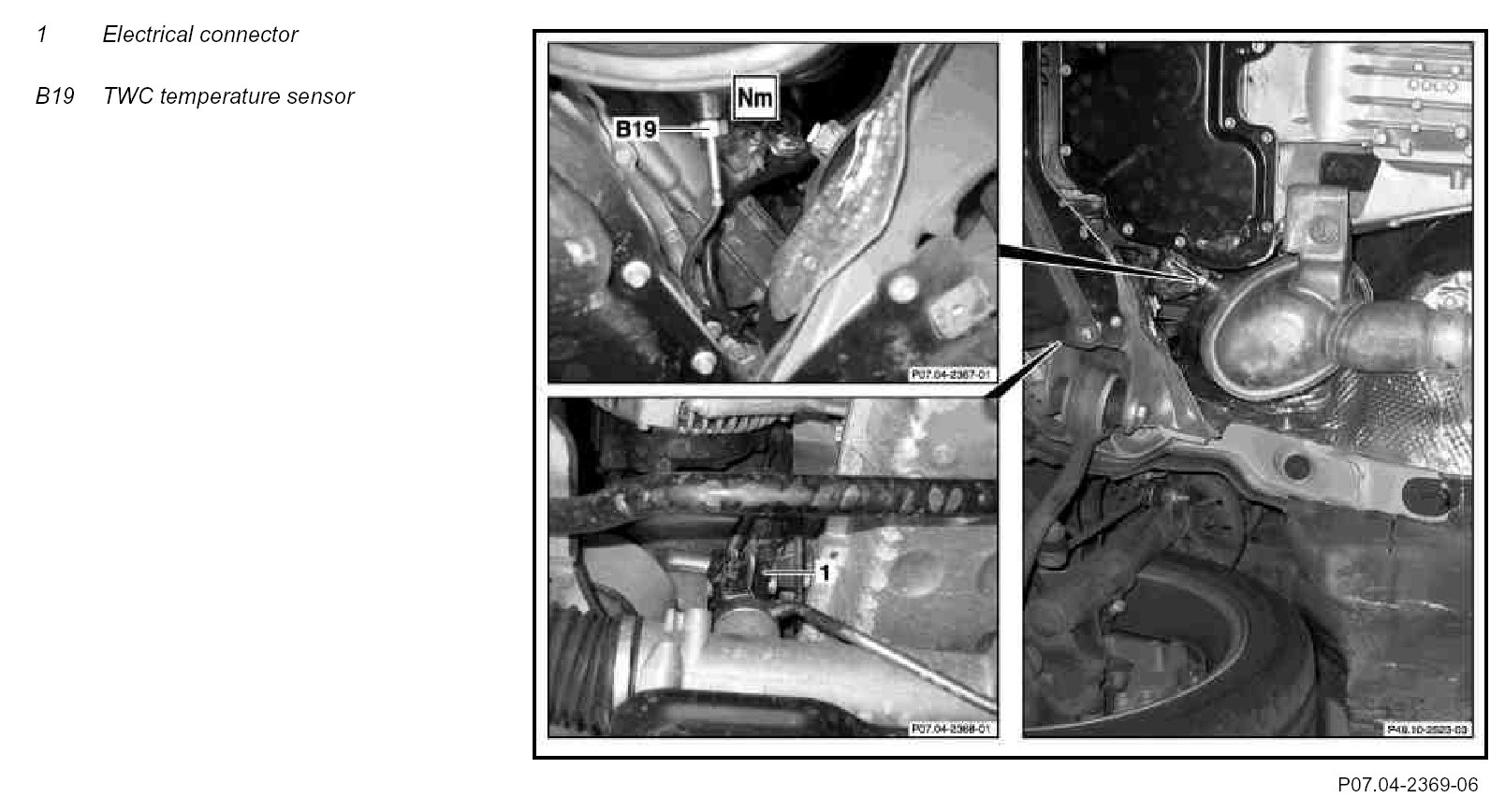

Component Identification:

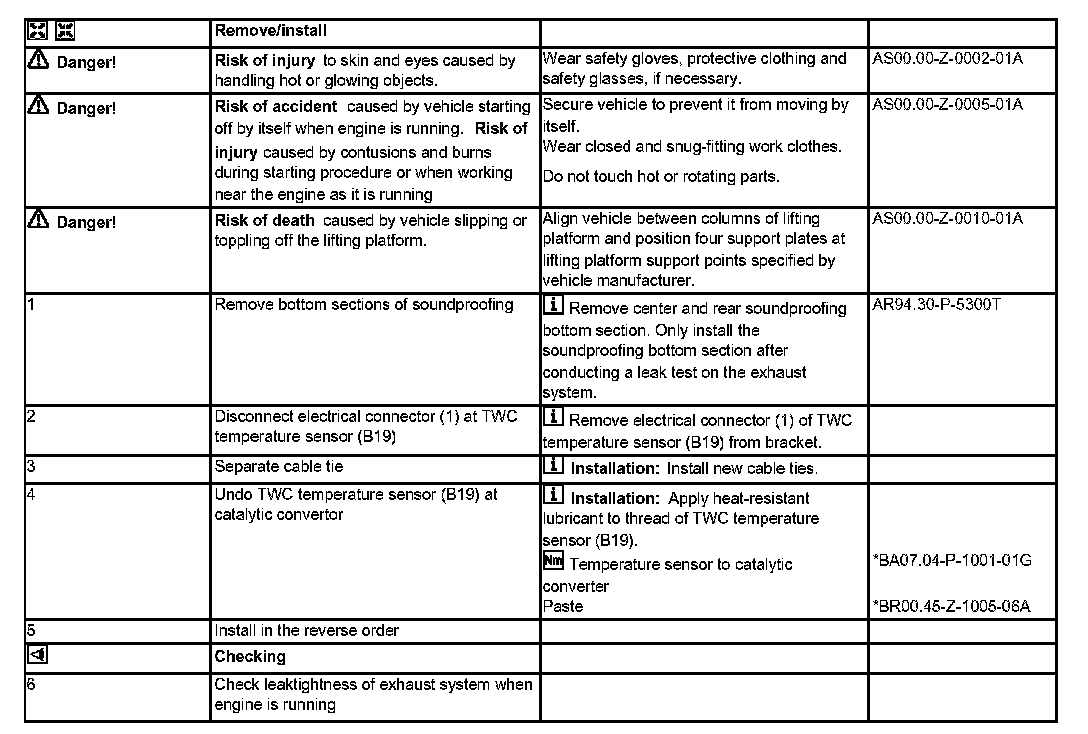

Steps 1 - 6:
Sensors:
Repair Materials:
