Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Service and Repair >> AR82.60-P-0001TI Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)

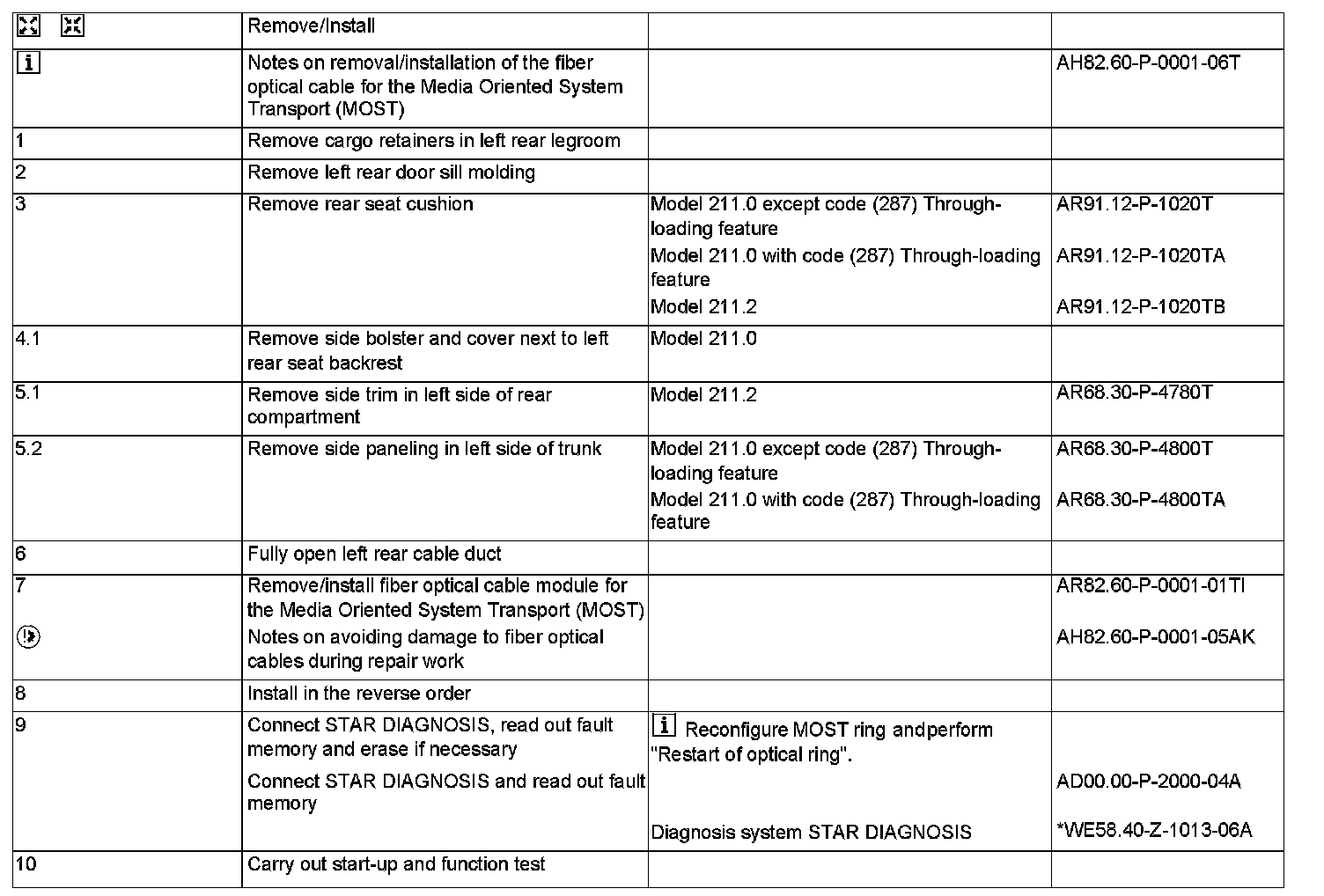

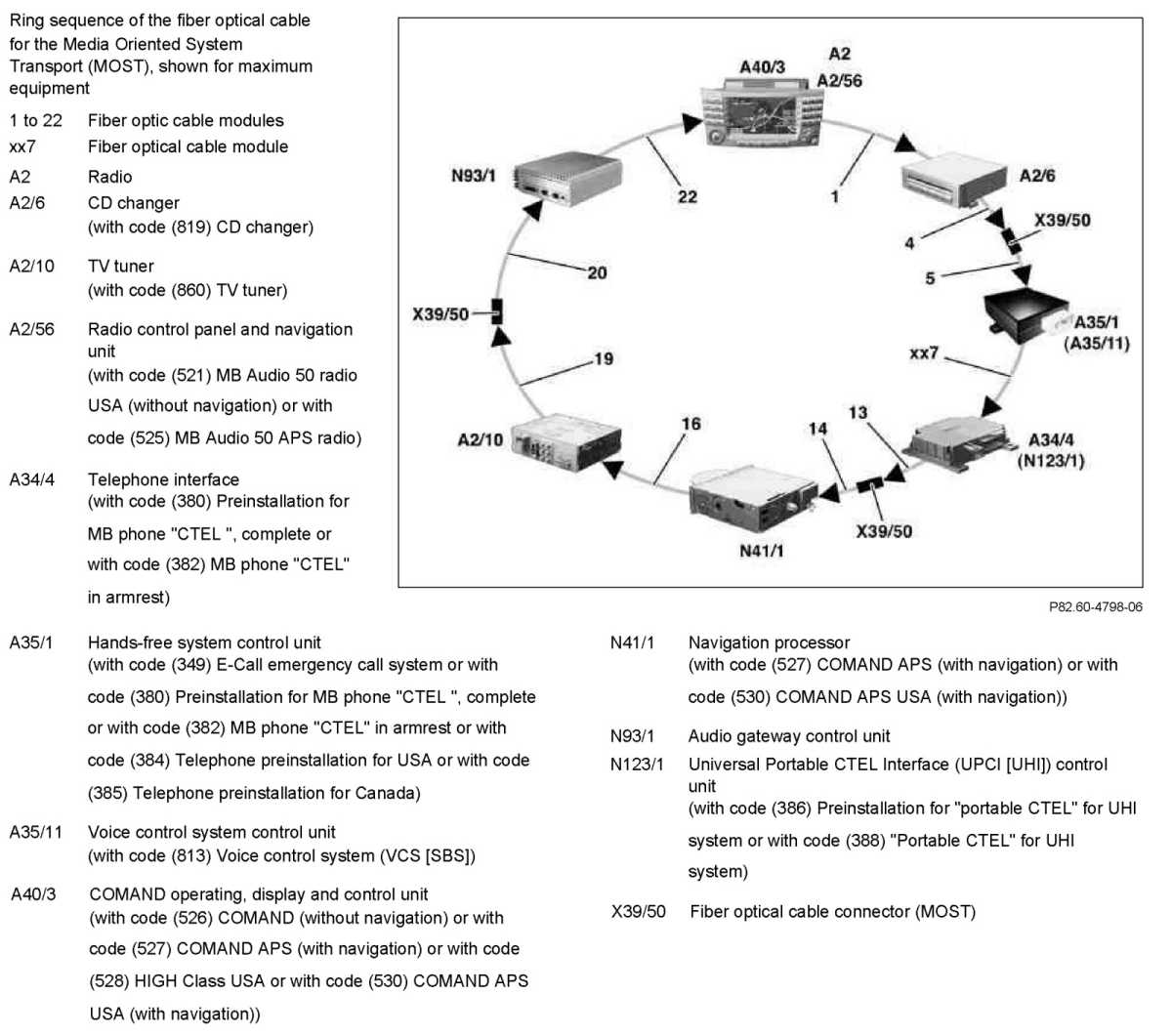

AR82.60-P-0001TI Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)



AR82.60-P-0001TI Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)

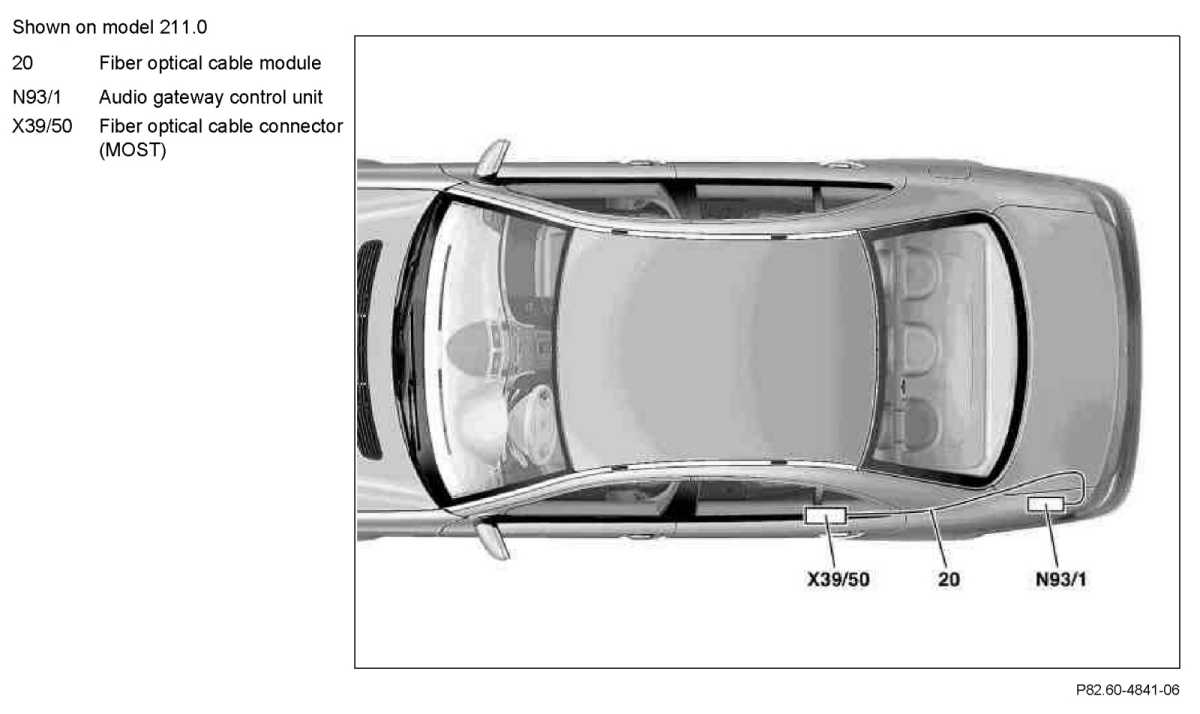

- Fiber optic cable (MOST) between fiber optical cable connector (MOST) and audio gateway control unit
