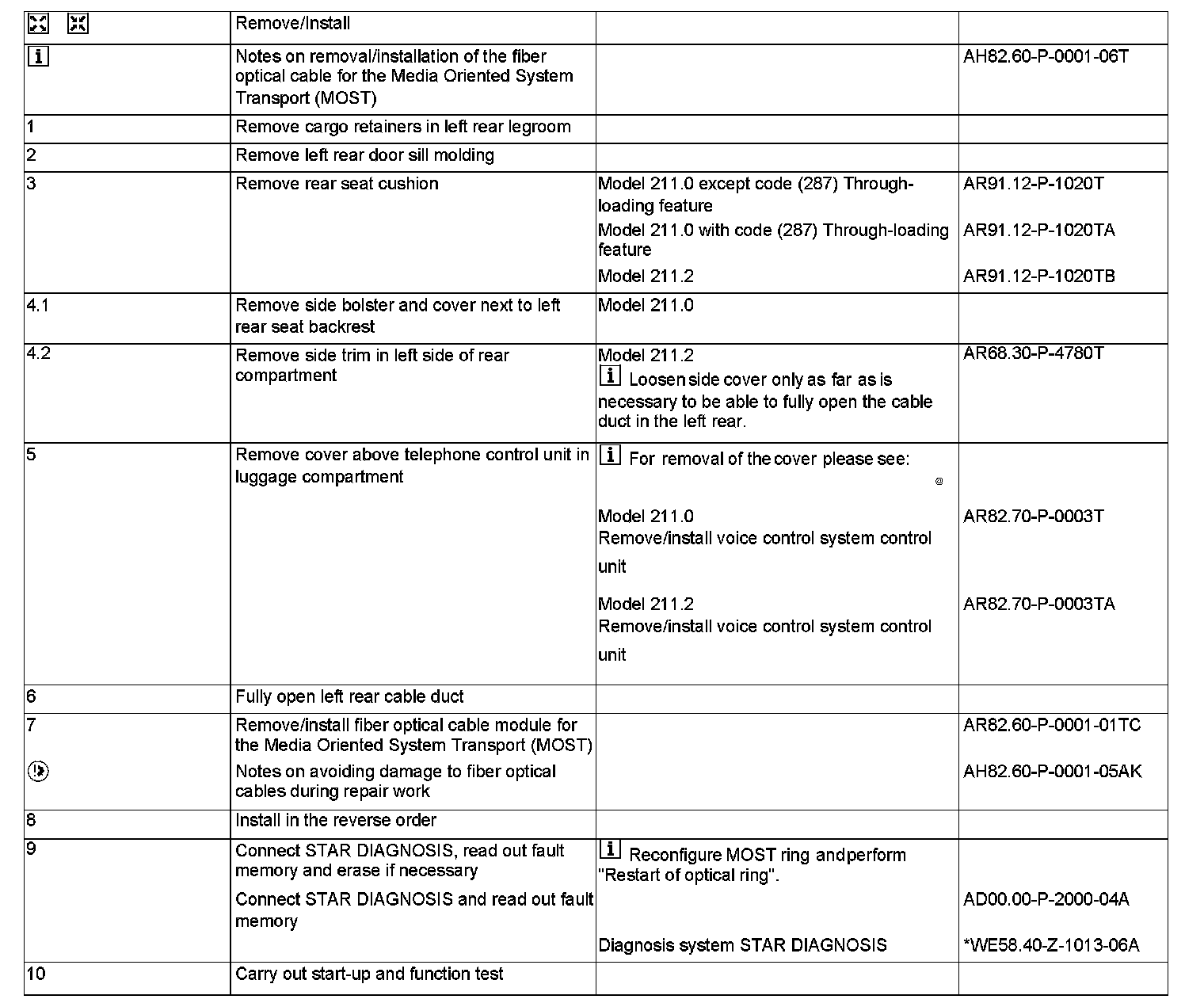

AR82.60-P-0001TC Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)



AR82.60-P-0001TC Remove/Install Fiber Optical Cable For the Media Oriented System Transport (MOST)
- with CODE (349) E-Call emergency call system
- with CODE (380) Preinstallation for MB phone "CTEL", complete
- with CODE (382) MB telephone "CTEL" in armrest
- with CODE (813) Voice control system (VCS)

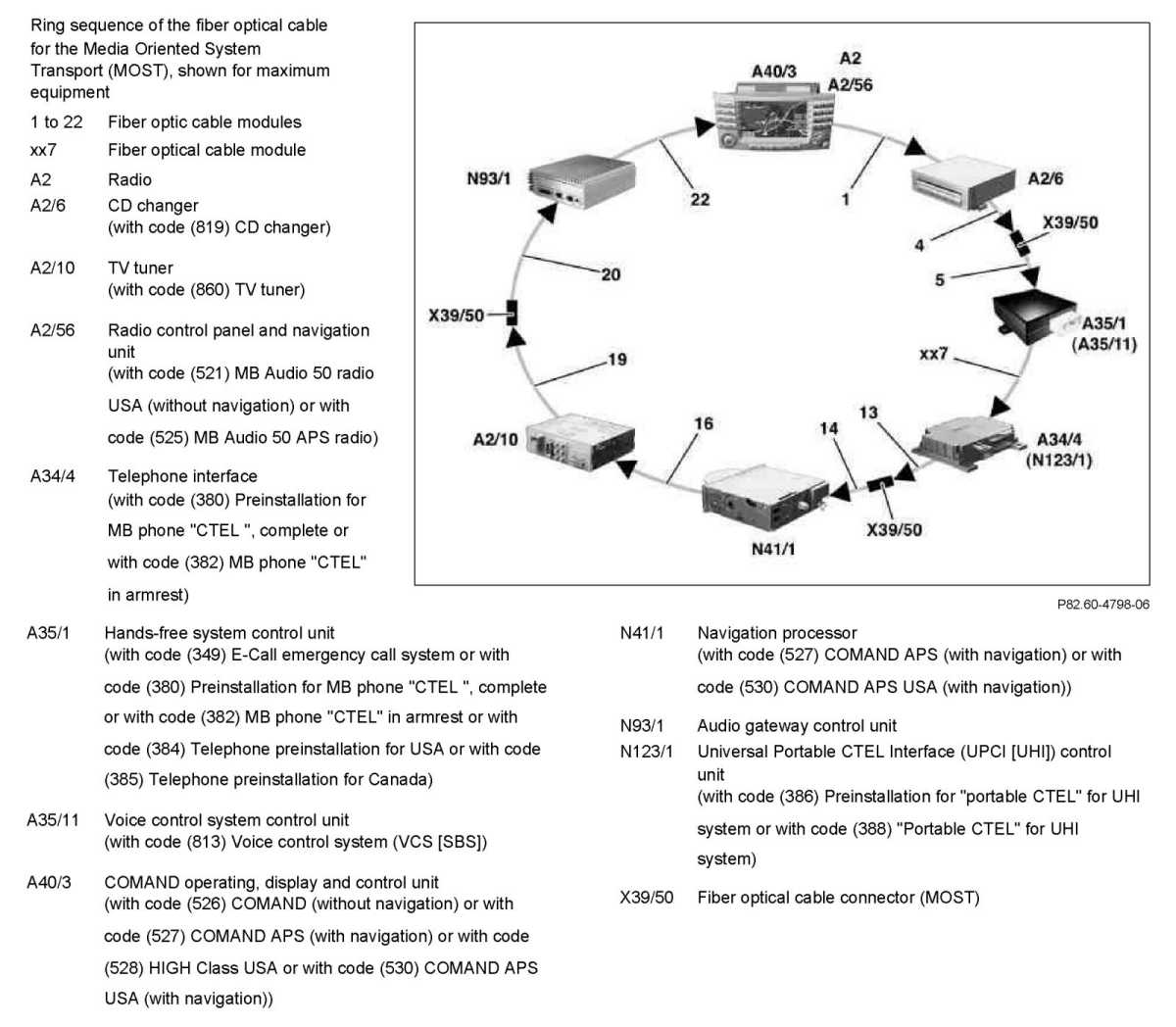

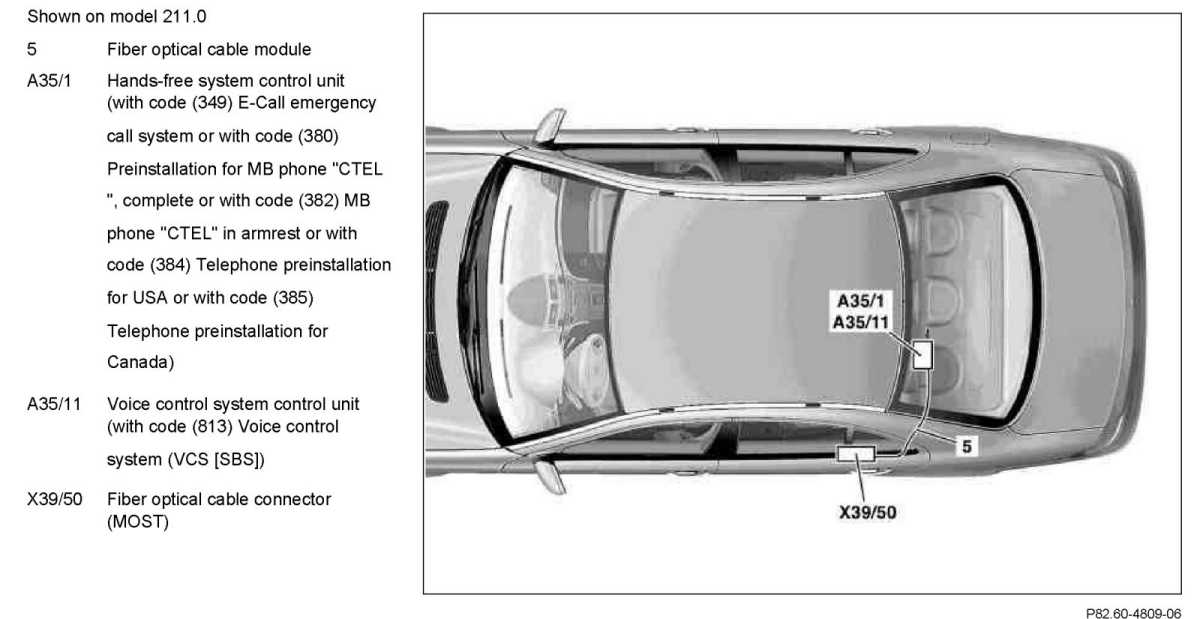

- Fiber optic cable (MOST) between fiber optical cable connector (MOST) and hands-free system control unit/VCS
