Electronic Throttle Actuator: Service and Repair
AR09.41-P-1321TI Removing/Installing The Throttle Valve Actuator

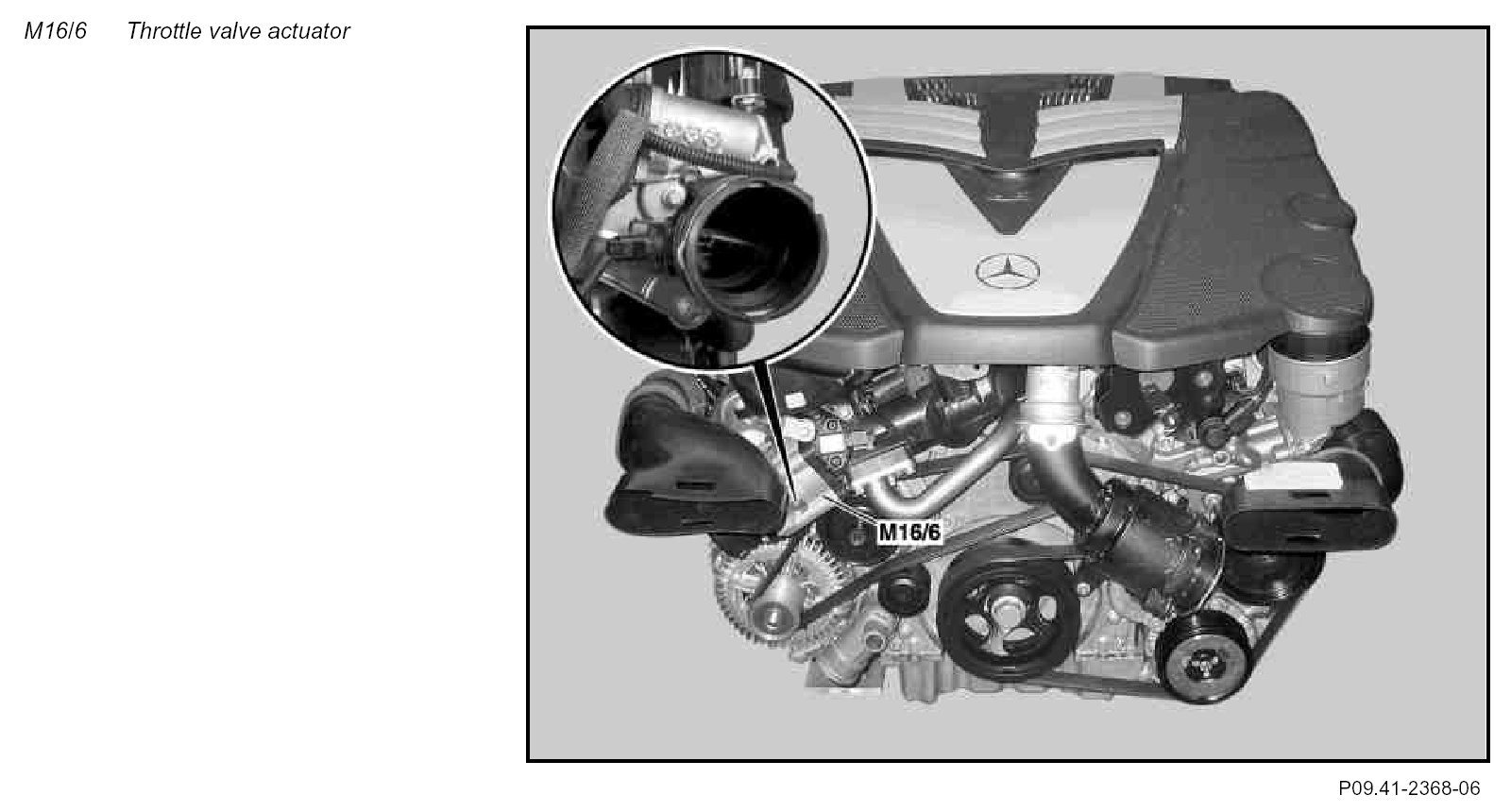

Component Identification:

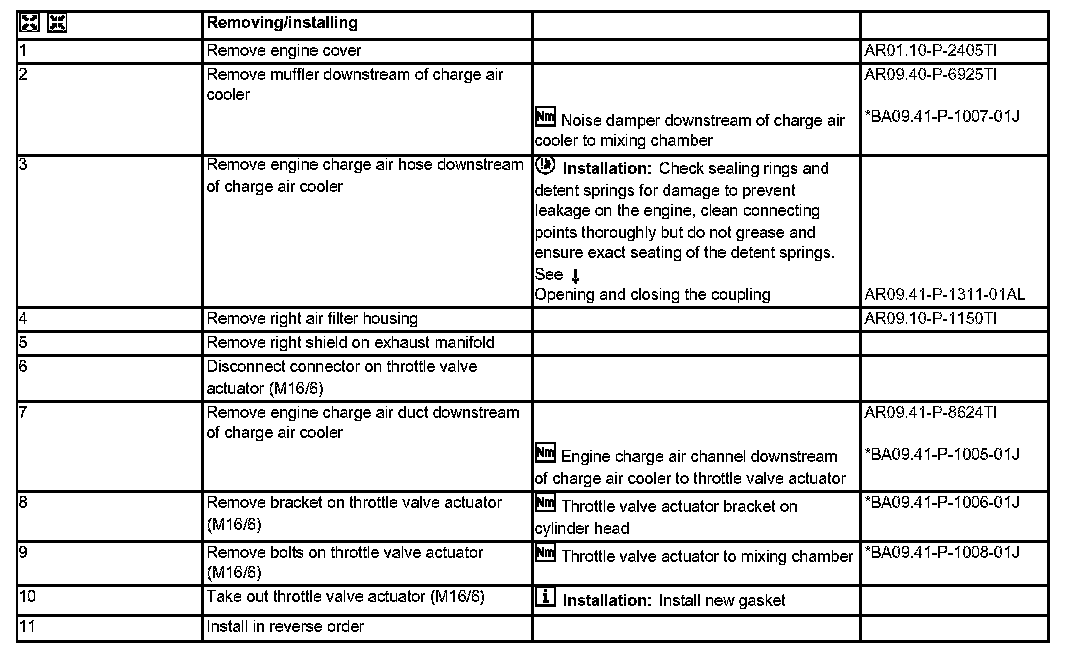

Steps 1 - 11:

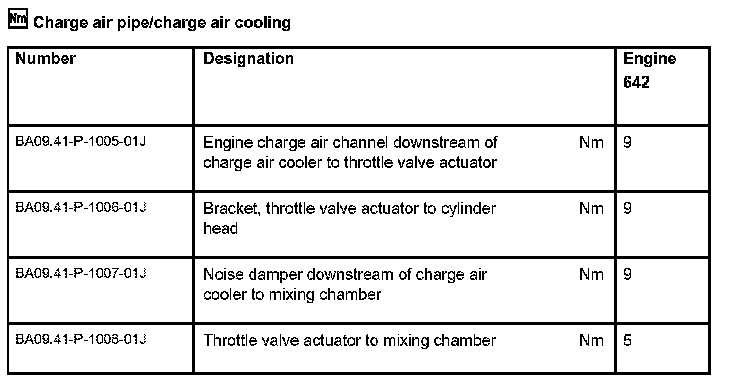

Charge Air Pipe/Charge Air Cooling:
AR09.41-P-1321TI Removing/Installing The Throttle Valve Actuator
