AR35.20-P-0130TX Remove/Install Rear Axle Shaft Flange and Angular Ball Bearing



AR35.20-P-0130TX Remove/install rear axle shaft flange and angular ball bearing

Component Identification:




Modification notes:




Steps 1-6:

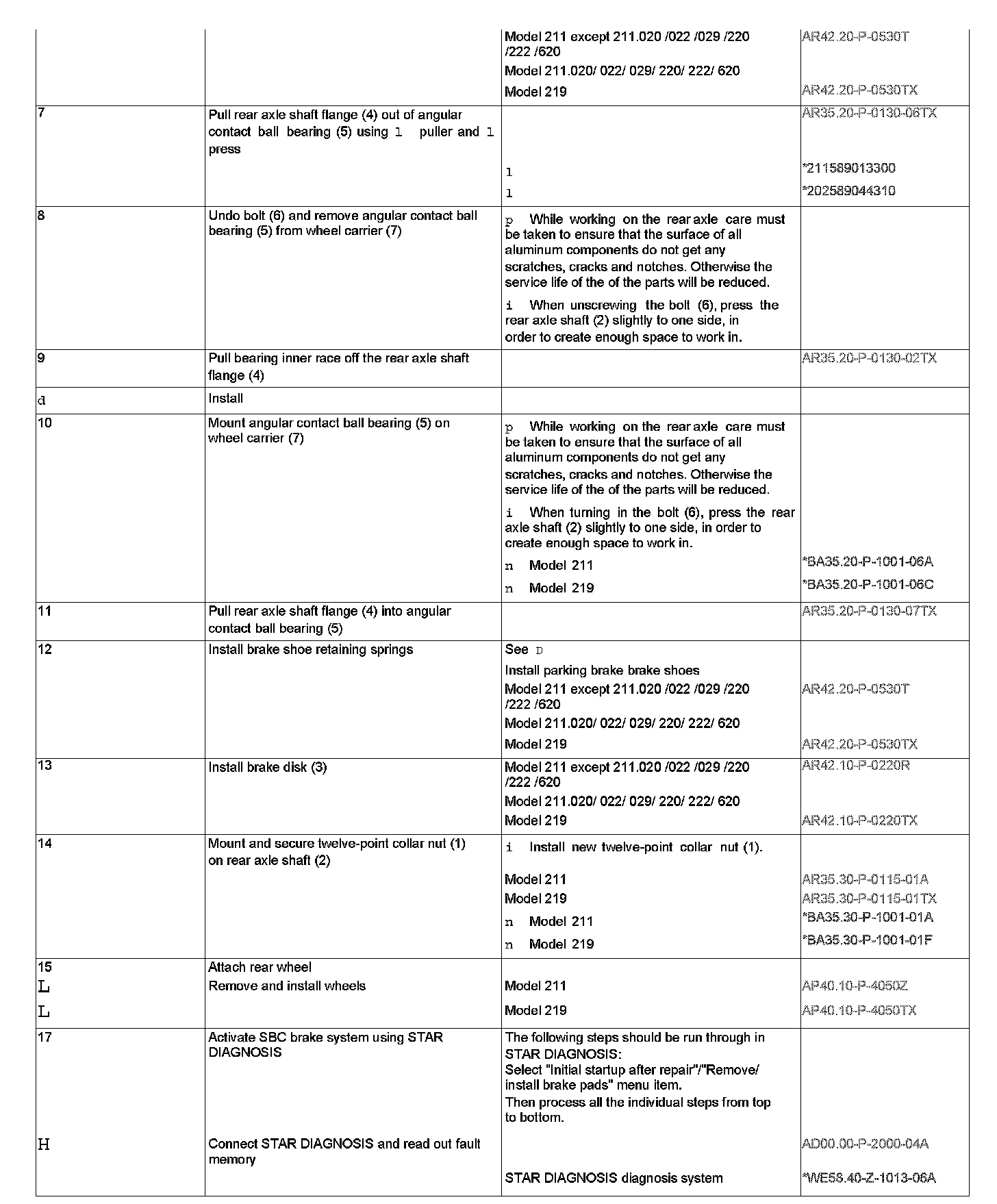

Remove/install Steps 7-17:

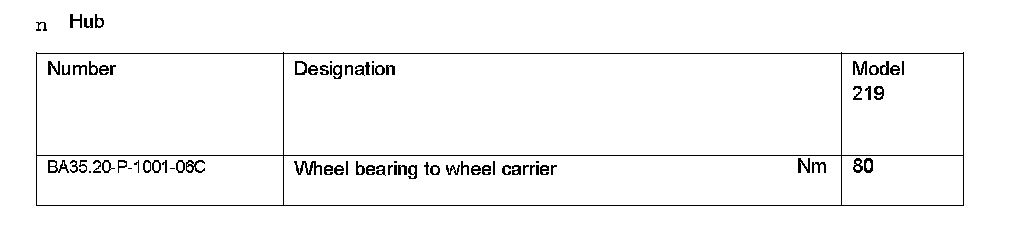

Hub:




Hub:

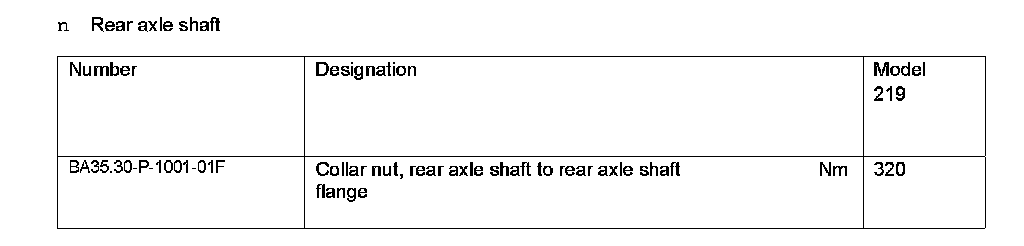

Rear axle shaft:




Rear axle shaft:

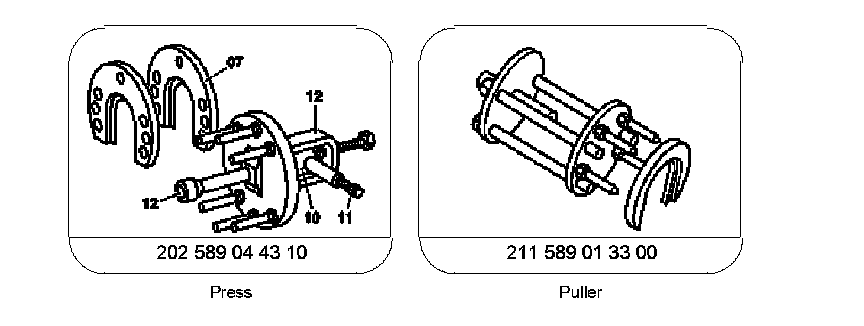

Special Tools:




Workshop equipment/MB testers:
