AR40.30-P-0402-01T Carrying Out Distance and Comparative Measurements on Front Axle

AR40.30-P-0402-01T Carrying out distance and comparative measurements on front axle

Modification Notes:

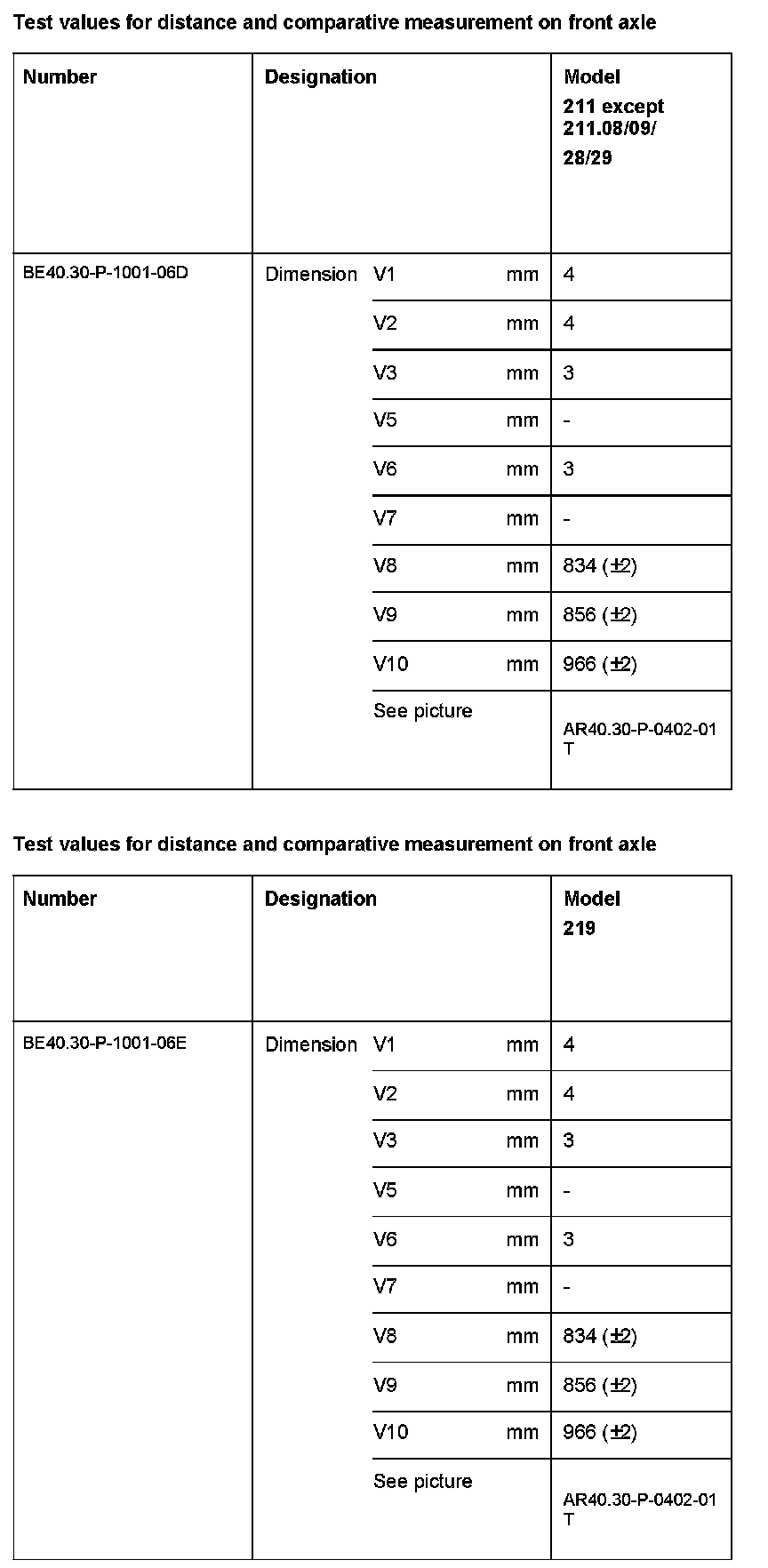

Test Values For Distance And Comparative Measurement On Front Axle:

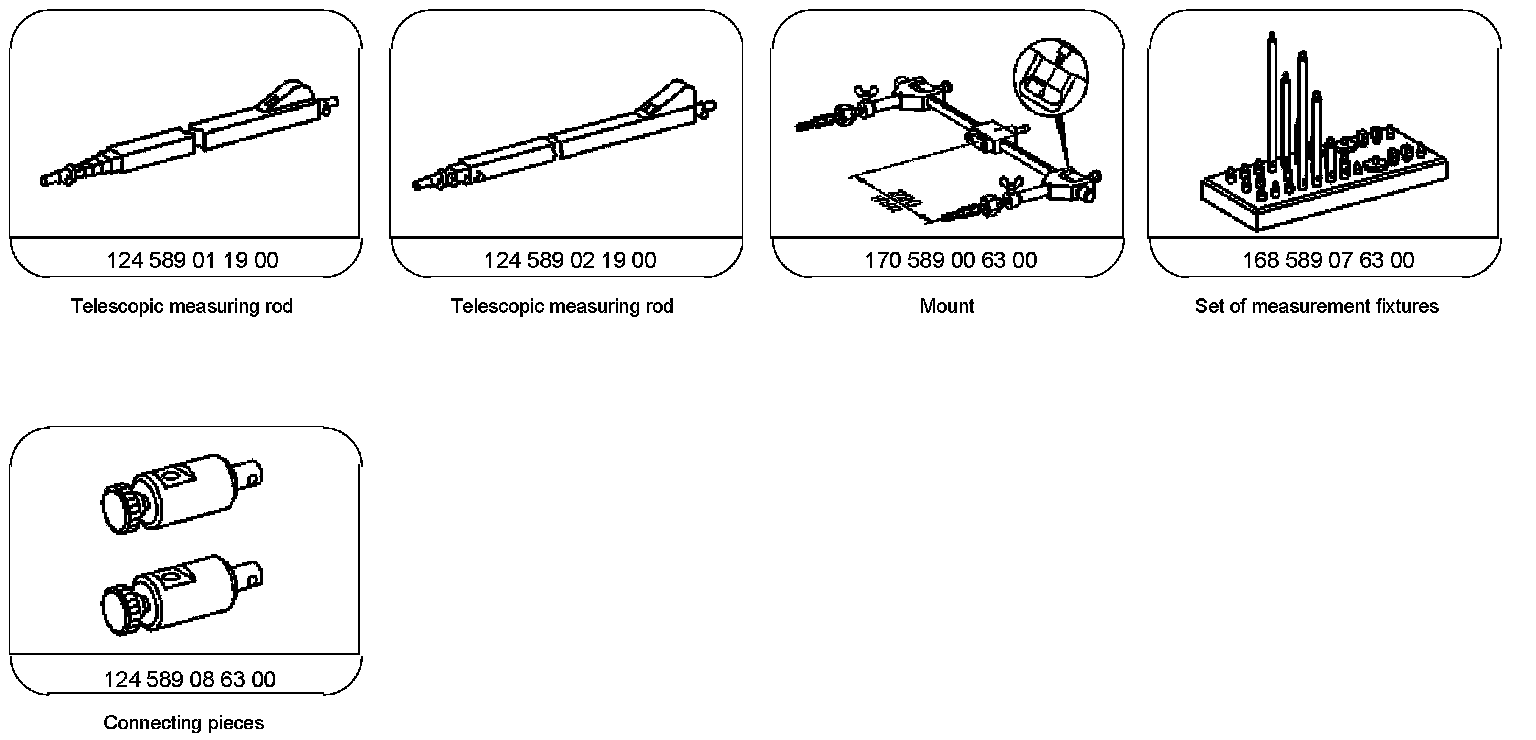

Special Tools:

The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.

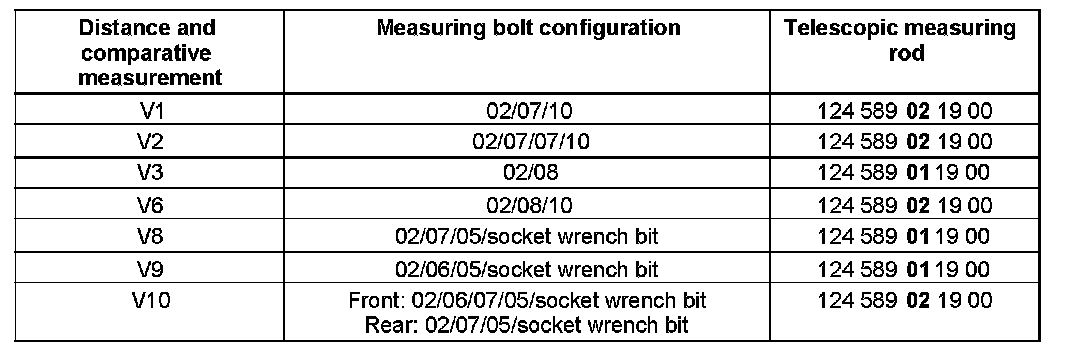

The configuration of the measuring bolts is shown in the table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers. For example: 02/08/10 168 589 07 63 02 (support stud) 168 589 07 63 06 (extension) 168 589 07 63 10 (measuring tip)

Component Identification:

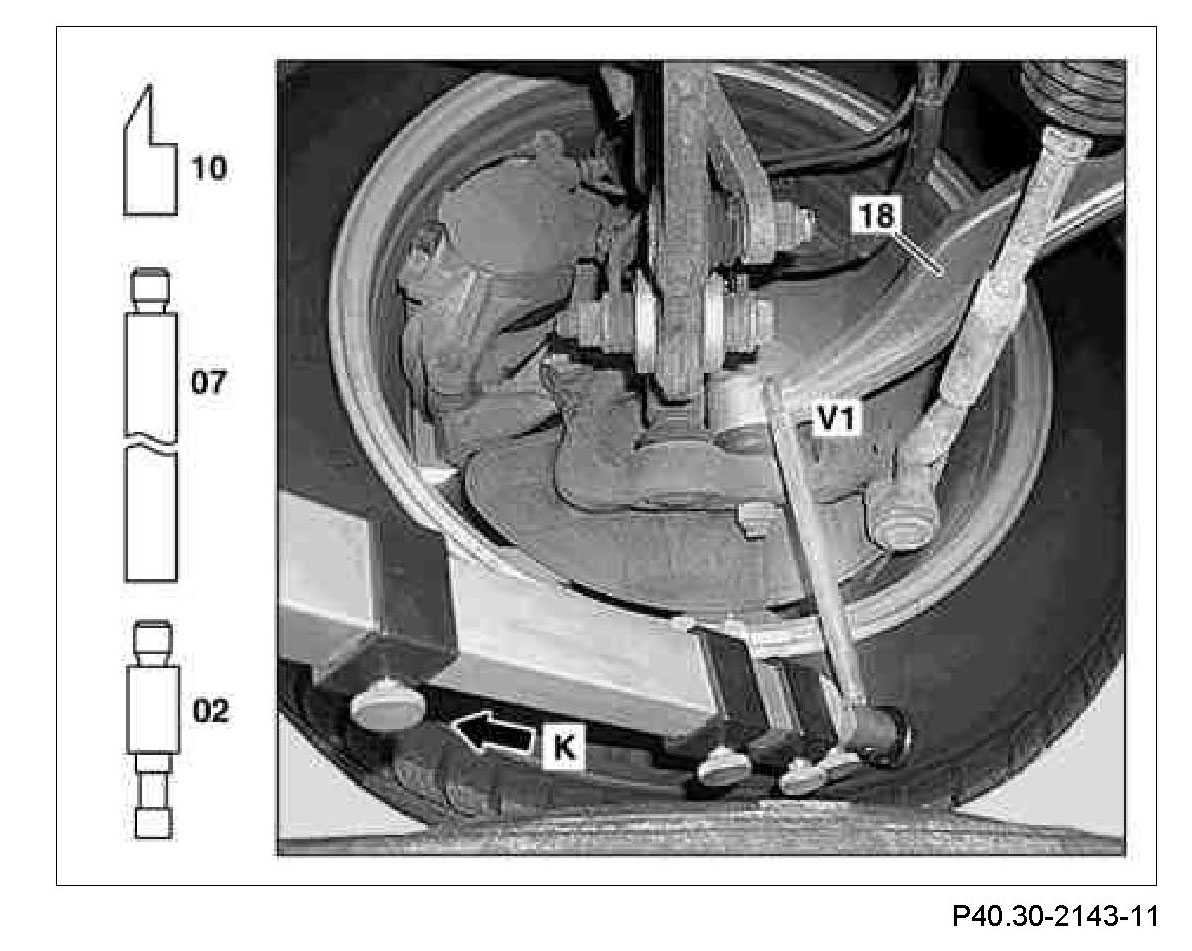

1 Measure comparative measurement (V1) from the check point (K) to the cast surface on the torque strut (18). Measure on the left and right side in each case.

In order to assess the effects of accident damage, the bearings on the torque strut and spring control arm must be undamaged. Because of the inaccuracies resulting from the tolerances of the bearings, the dimension (V1) is only partially usable.

Shows on model 211

Component Identification:

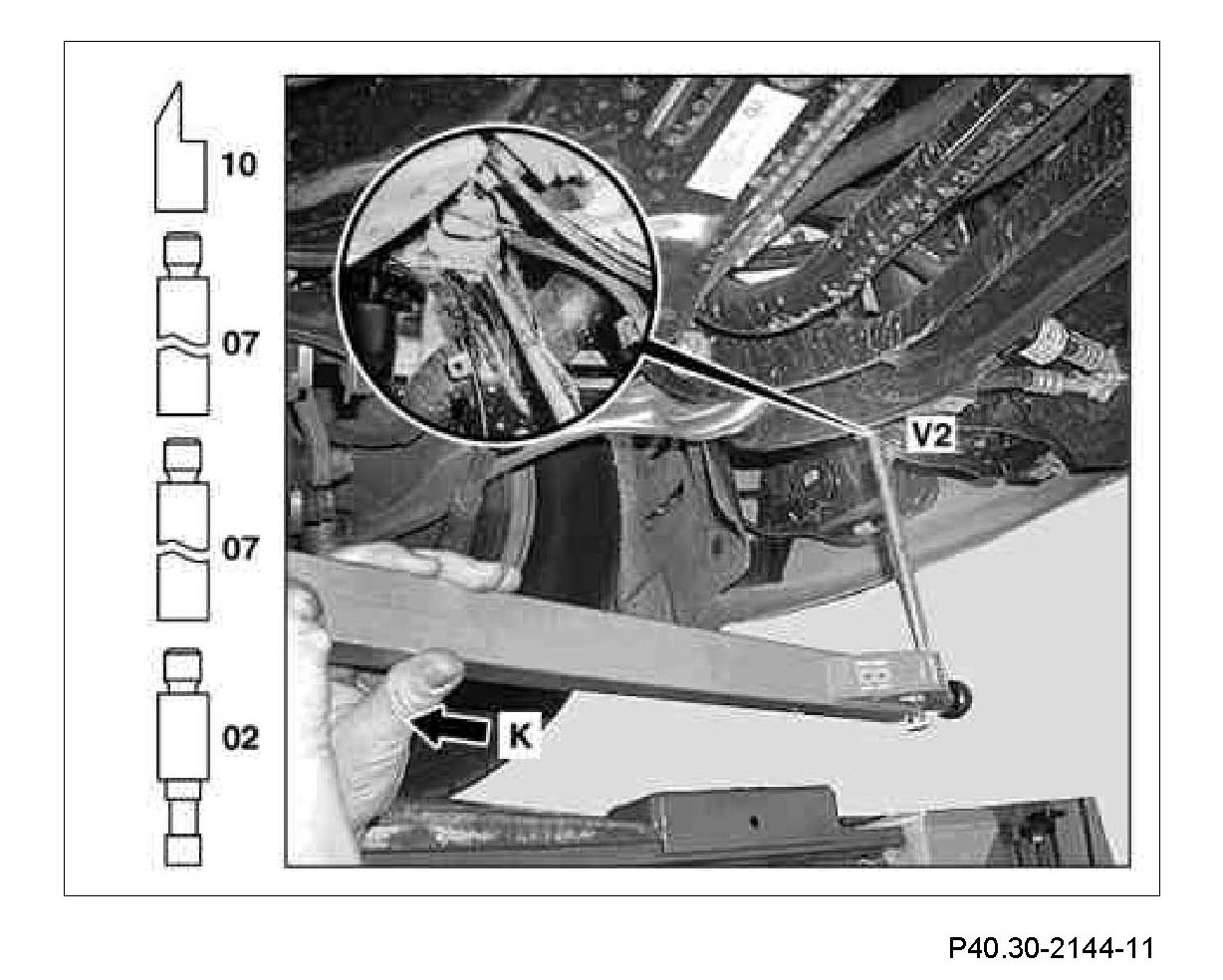

2 Measure comparative measurement (V2) from the check point (K) to the longitudinal member of the body. Measure on the left and right side in each case.

This measurement is a reference dimension for the body.

Shows on model 211

Component Identification:

Shows model 219

Component Identification:

3 Measure comparative measurement (V3) from the check point (K) to the centering point of the mounting bolt of the spring control arm on the front axle carrier. Measure on the left and right side in each case.

Shows on model 211

Component Identification:

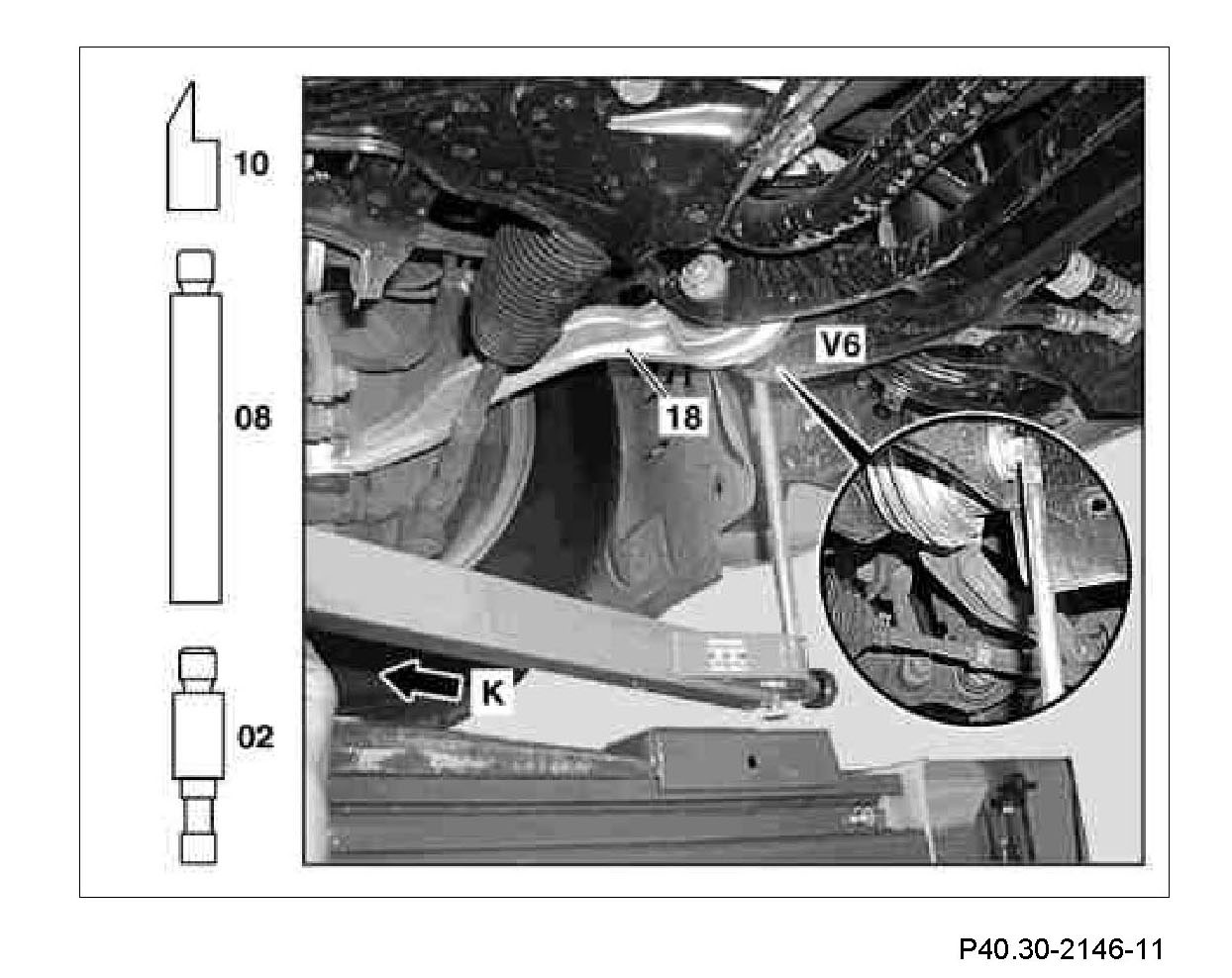

4 Measure comparative measurement (V6) from the check point (K) to the centering point of the mounting bolt of the torque strut on the front axle carrier, left to right. Measure on the left and right side in each case.

Shows on model 211

Component Identification:

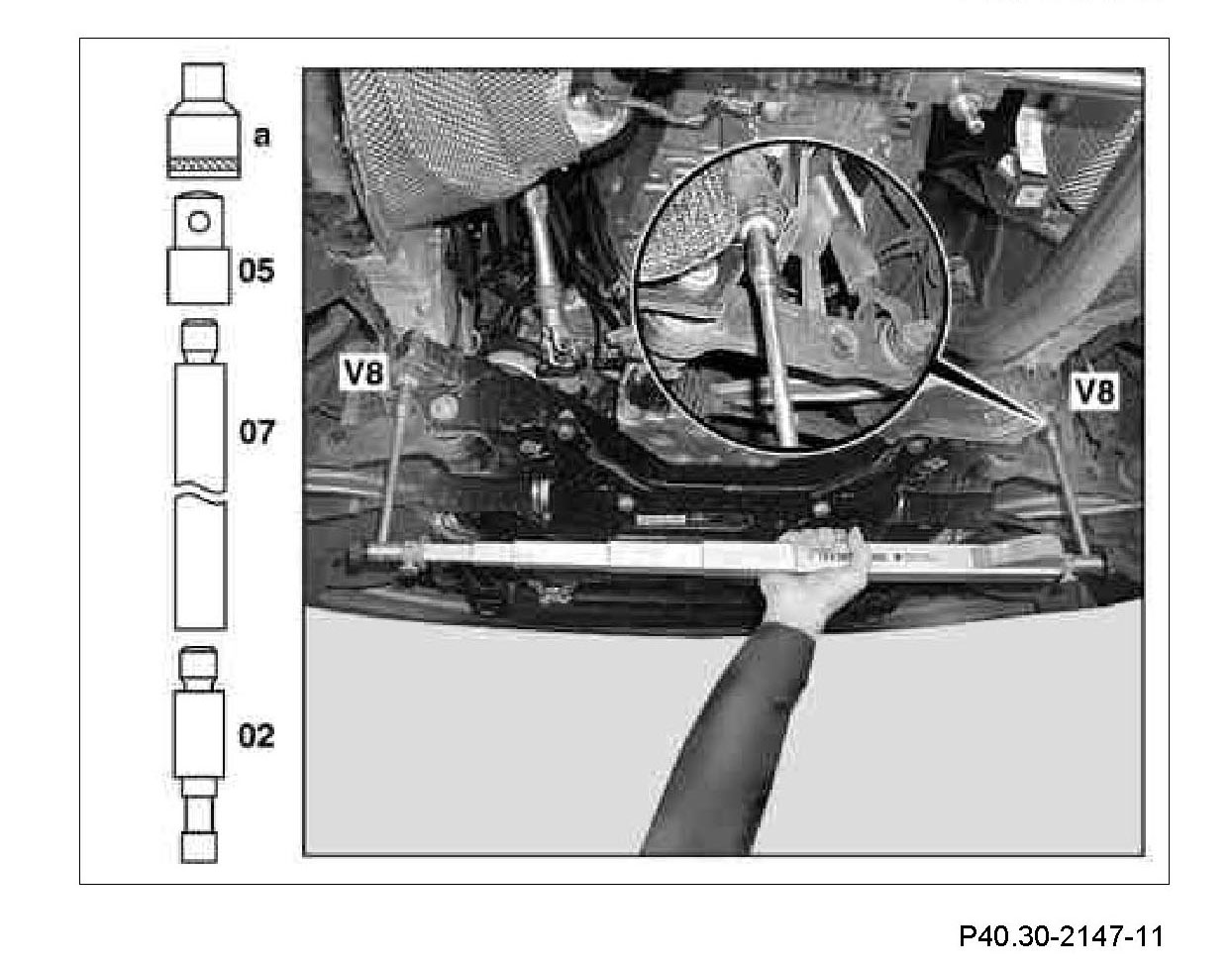

5 Measure distance dimension (V8) from the centering point of the Torx bolt heads between the rear bearings of the front axle carrier.

Shows on model 211

Component Identification:

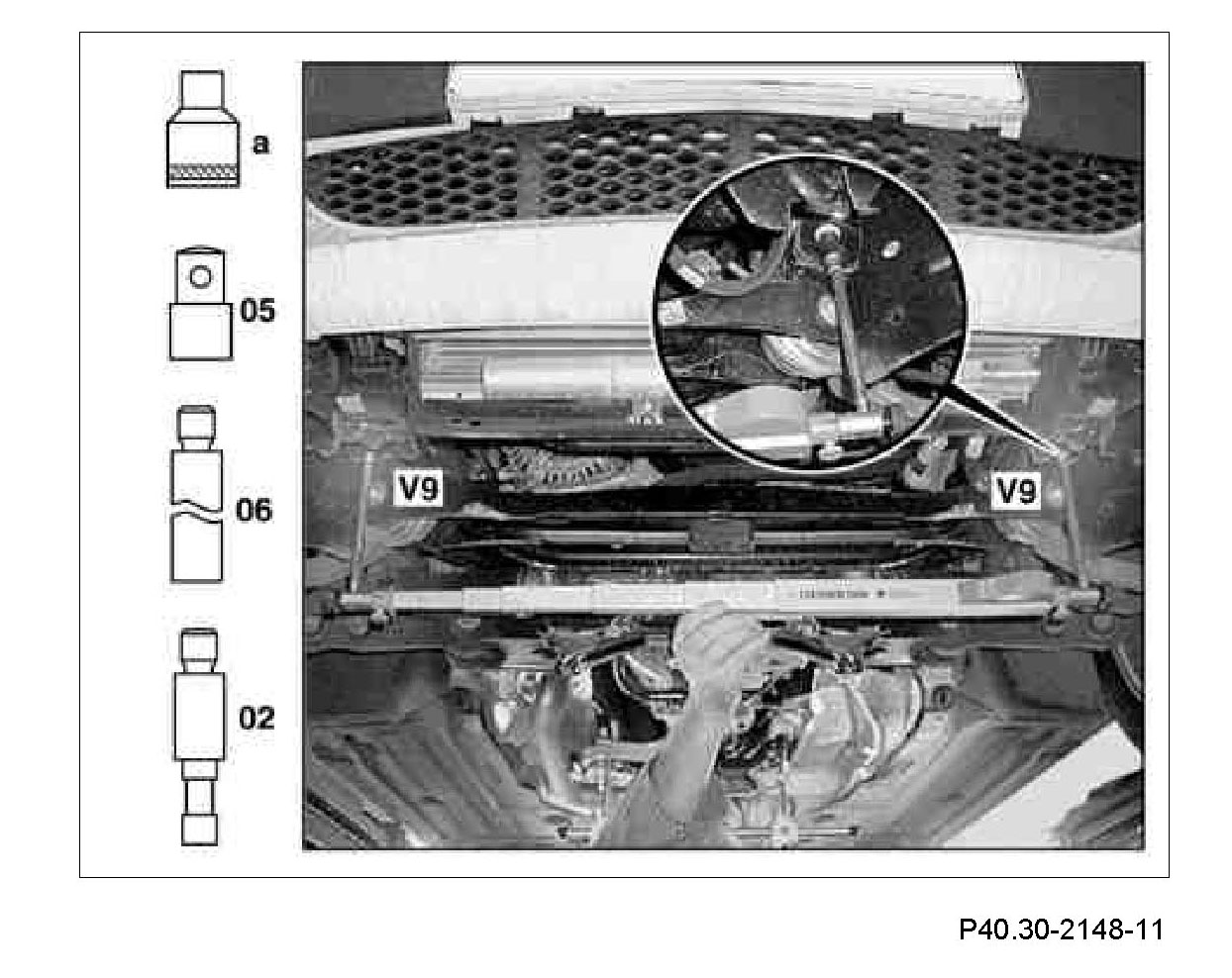

6 Measure distance dimension (V9) from the centering point of the Torx bolt heads between the front bearings of the front axle carrier.

Shows on model 211

Component Identification:

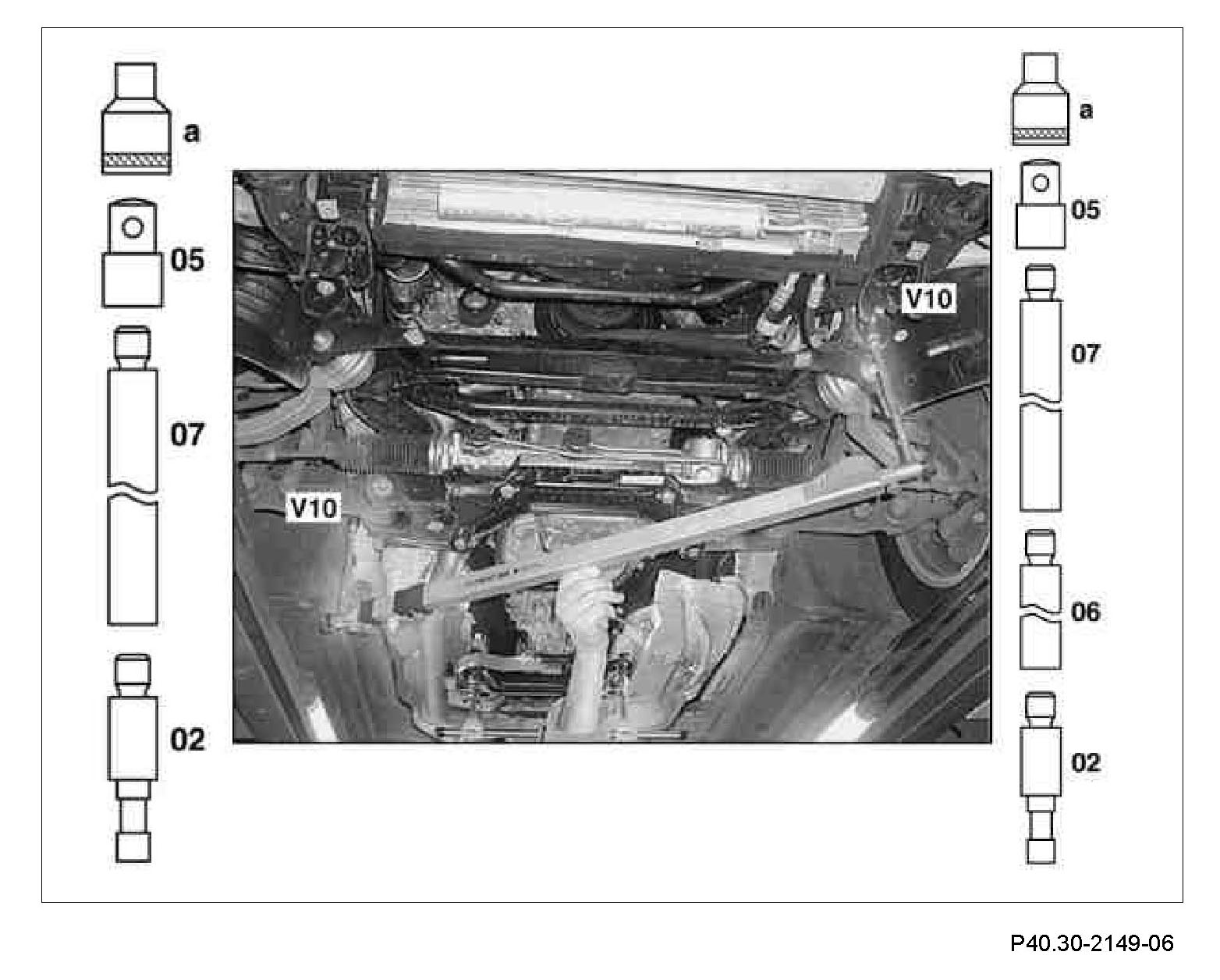

7 Measure distance dimension (V10) diagonally from the centering point of the Torx bolt heads between the front and rear mount of the front axle carrier, left to right.

Shown on model 211
