GF82.25-P-0001-02T Special Signal System, Government/ Emergency Vehicles, Networking of Components



GF82.25-P-0001-02T Special Signal System, Government/ Emergency Vehicles, Networking Of Components
- with CODE (970) police emergency vehicles







Networking

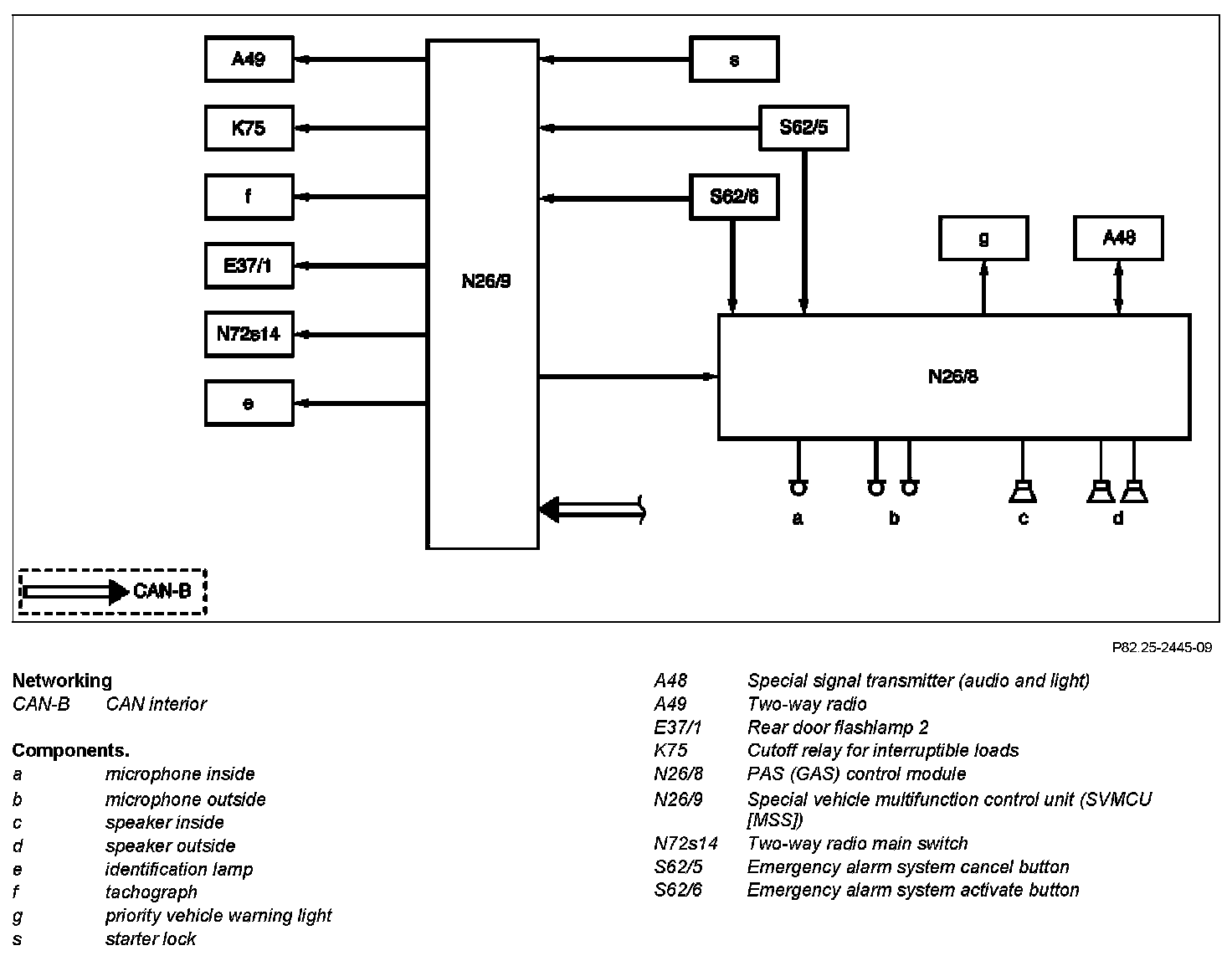

The two figures illustrate networking of the major system components for the government and emergency vehicle special signal system with panic alarm system (GAS).


Component Identification:




Component Identification:
