Center Mounted Brake Lamp: Service and Repair

AR82.10-P-5375T Remove/Install Center High-Mounted Stop Lamp







1 Remove paneling at trunk lid

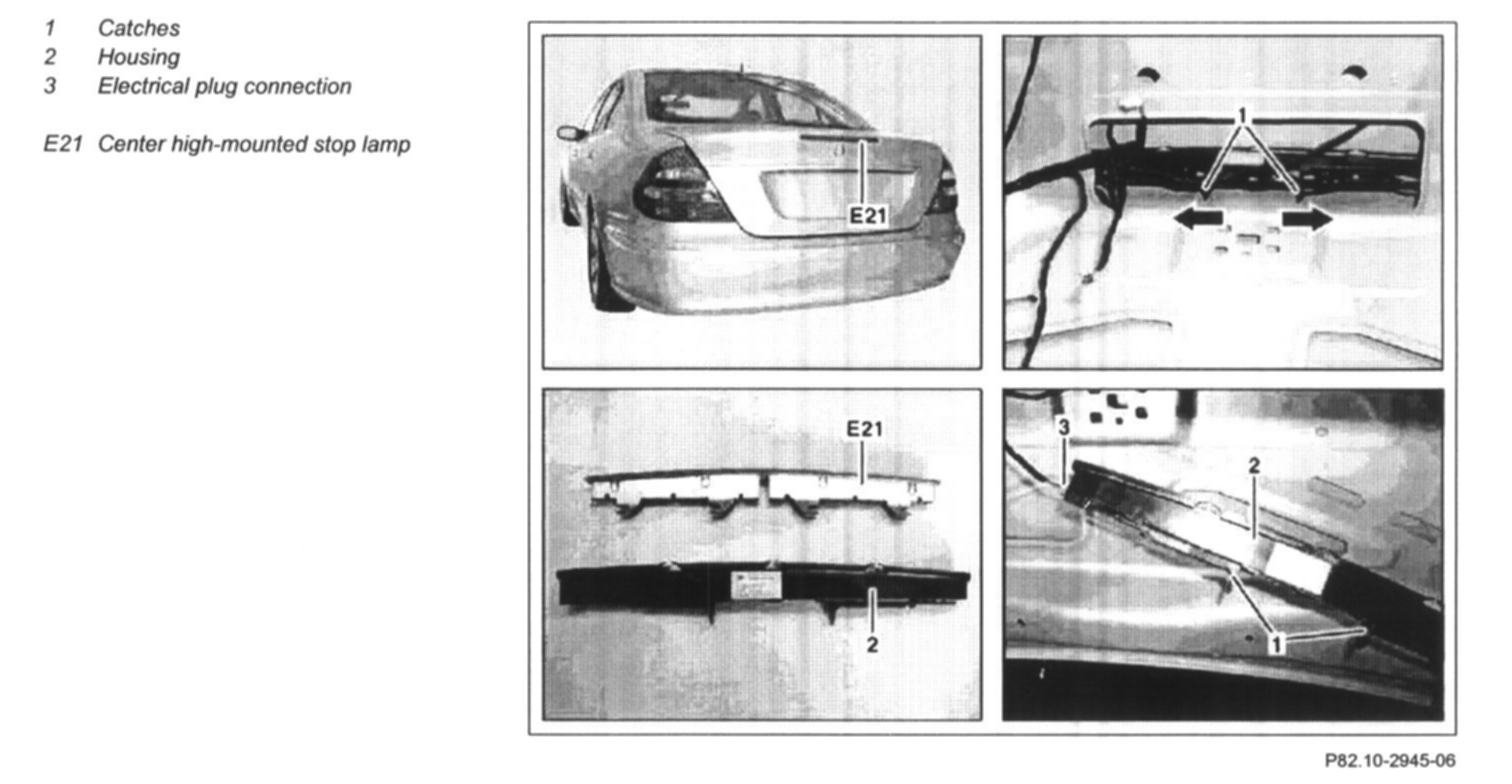

2 Slide catches (1) in direction of arrow and remove the casing (2) of the center high-mounted stop lamp (E21) out of the trunk lid until the electrical connector (3) is accessible
3 Separate electrical plug connection (3)
4 Unclip and remove center high-mounted stop lamp (E21) out of the trunk lid
5 Install in the reverse order
