Removal and Replacement



AR54.10-P-0030TX Remove/Install Cigarette Lighter
- except CODE (279) Electronic gear selector [model 212]

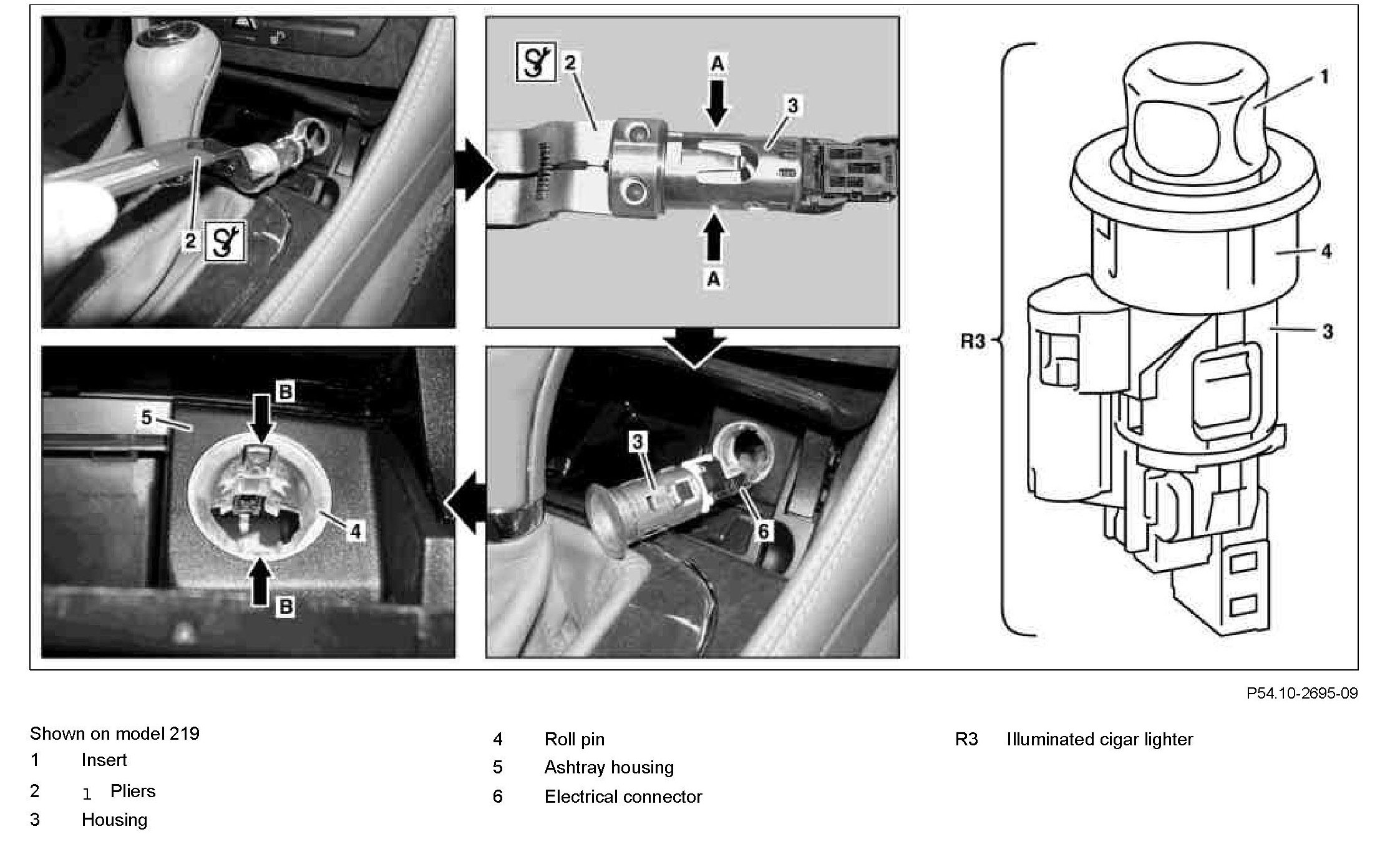

Component Identification:

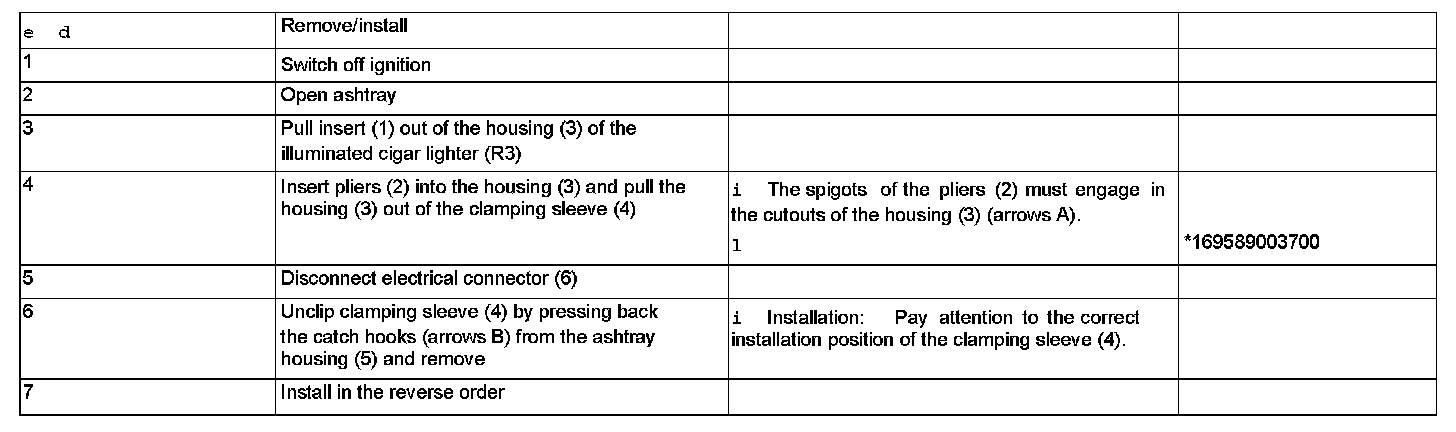

Steps 1 - 7:




Special Tools:
