High Pressure Safety Valve HVAC: Description and Operation

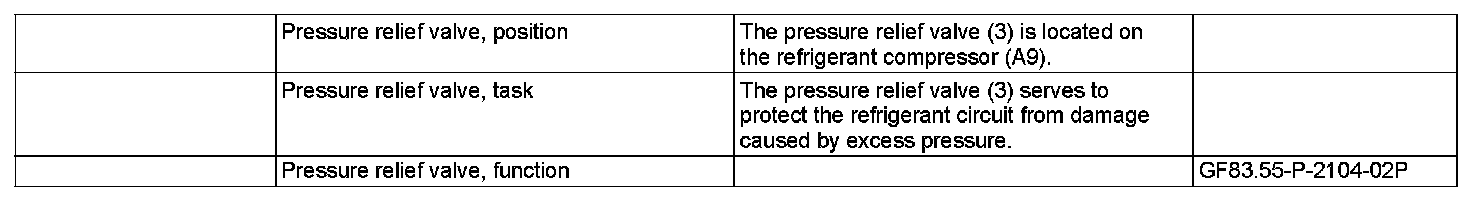

GF83.55-P-2104T Pressure Relief Valve, Location / Task / Function

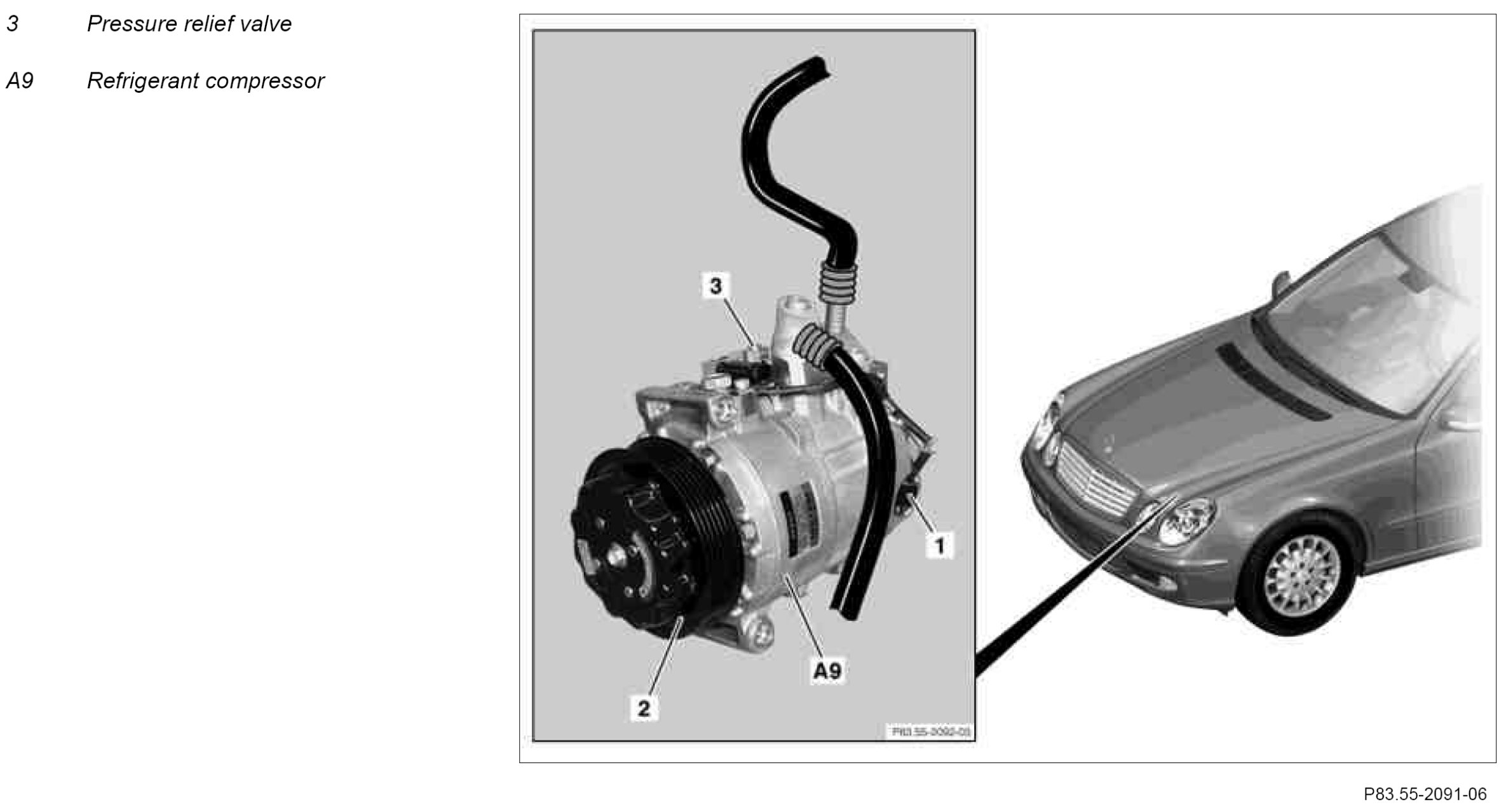

Component Identification:
