Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Heating and Air Conditioning >> Description and Operation >> Automatic Air Conditioning (AAC) Component Networking

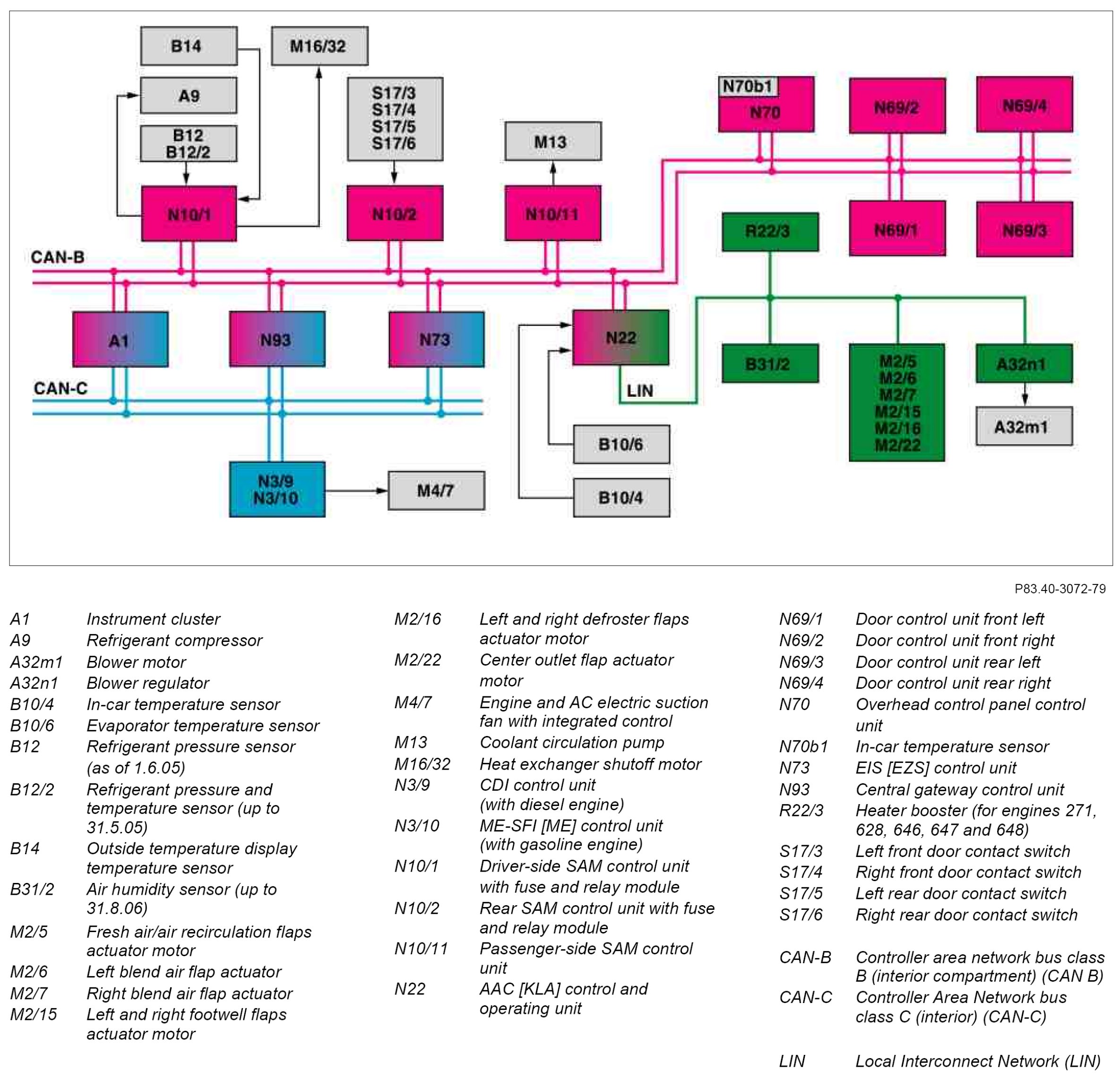

Automatic Air Conditioning (AAC) Component Networking



GF83.40-P-0001-02T Automatic Air Conditioning (AAC) Component Networking
- except CODE (581) Comfort automatic air conditioning


Component Identification:
