Compressor Pulley: Service and Repair



AR83.55-P-7685D Remove/install Refrigerant Compressor Belt Pulley

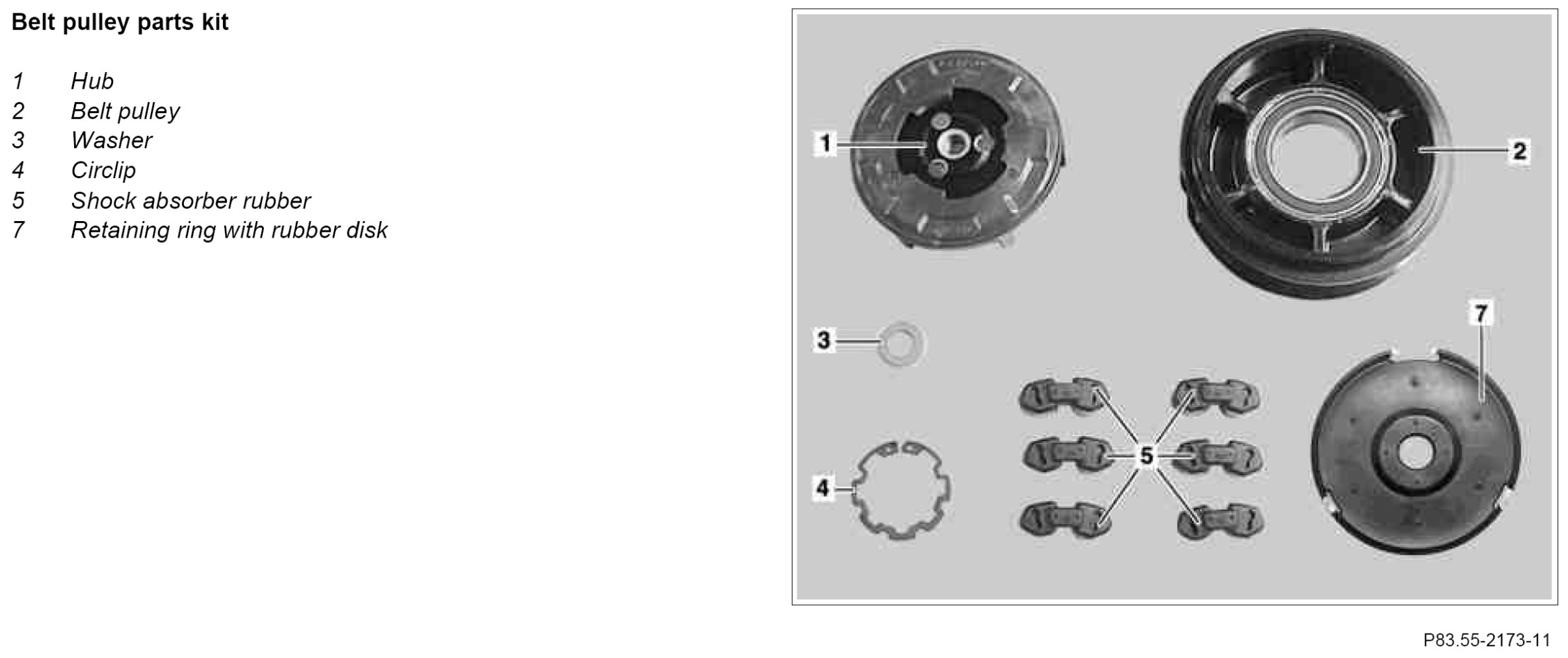

Belt pulley parts kit


Component Identification:

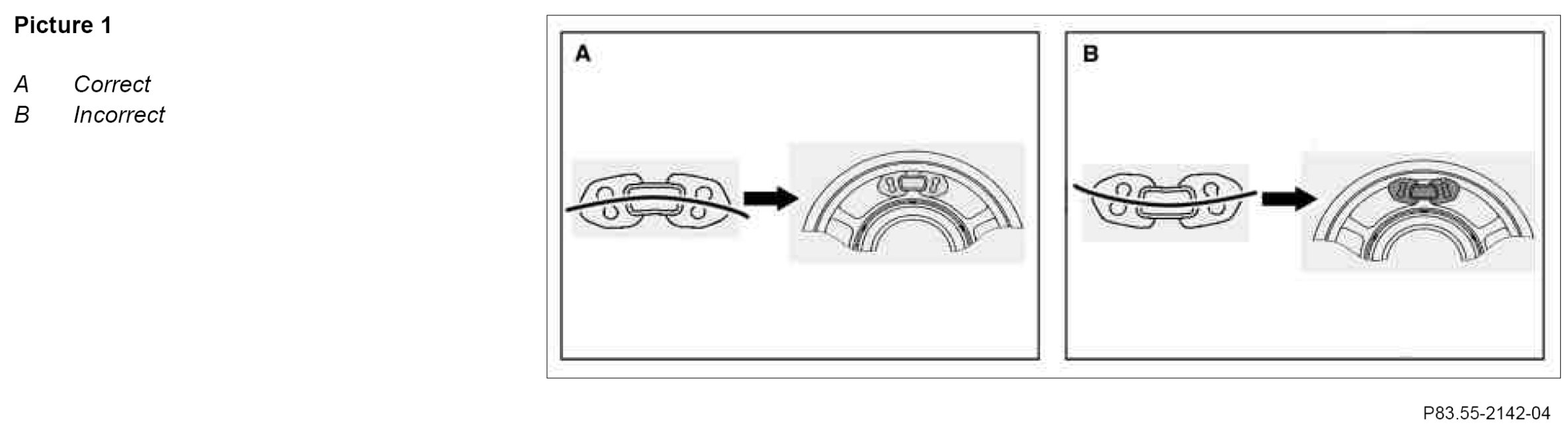

Picture 1


Component Identification:

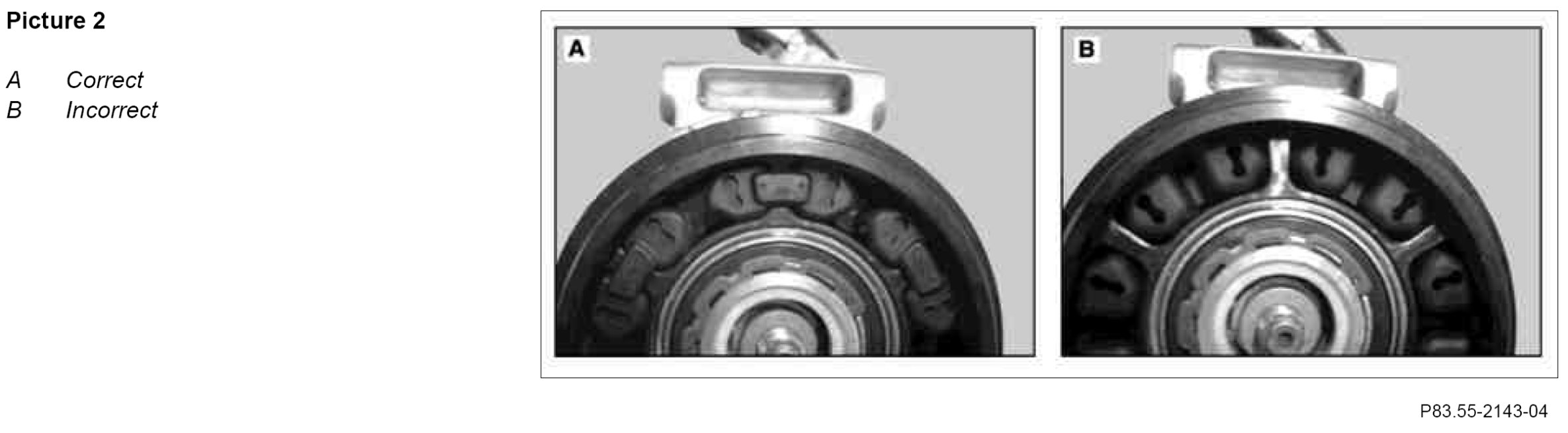

Picture 2


Component Identification:

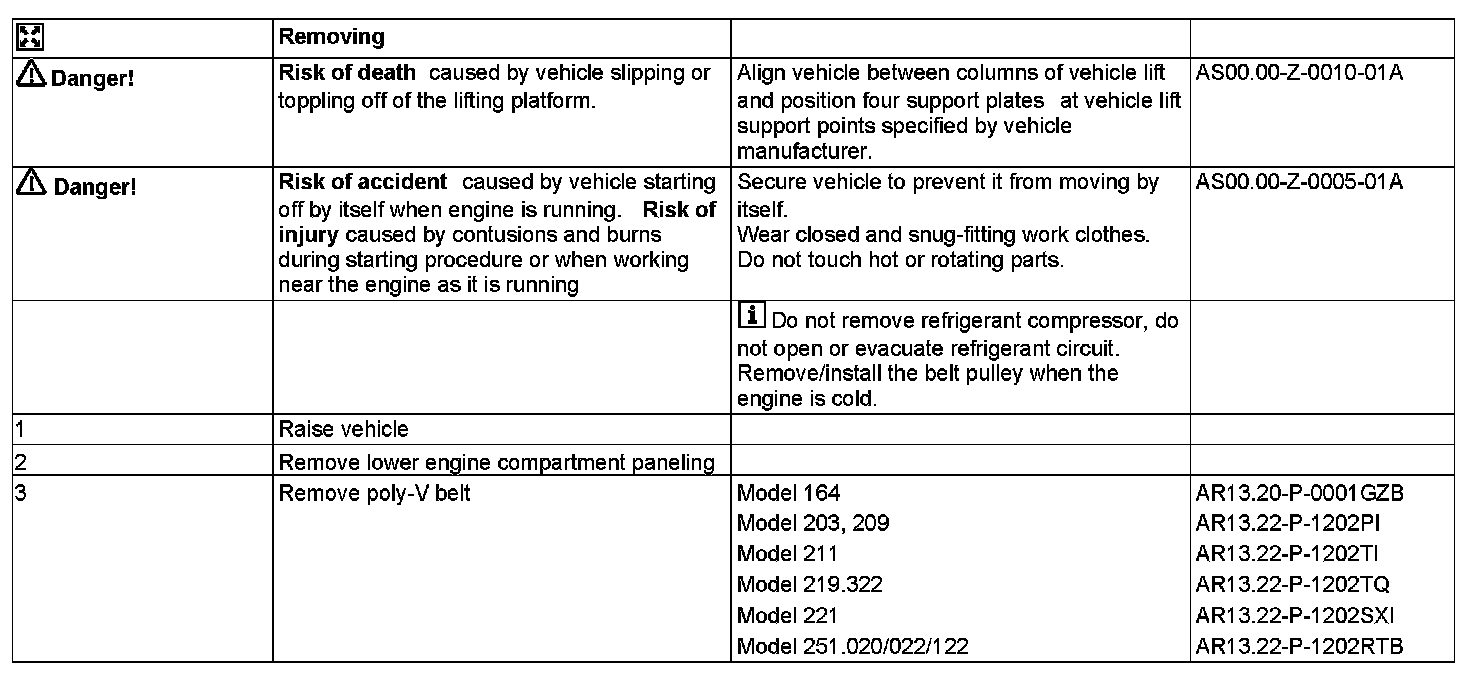

Steps 1-3:

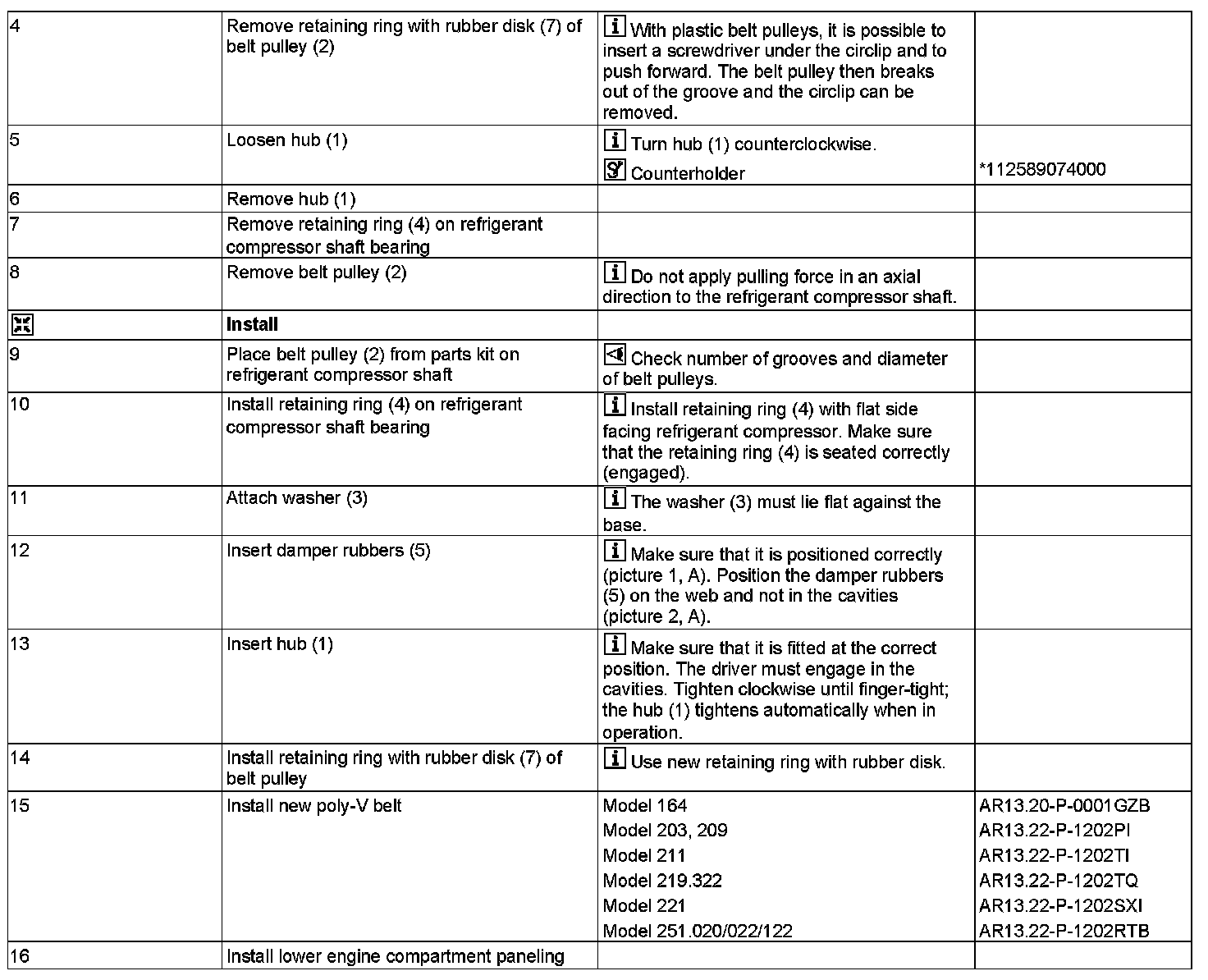

Steps 4-16:

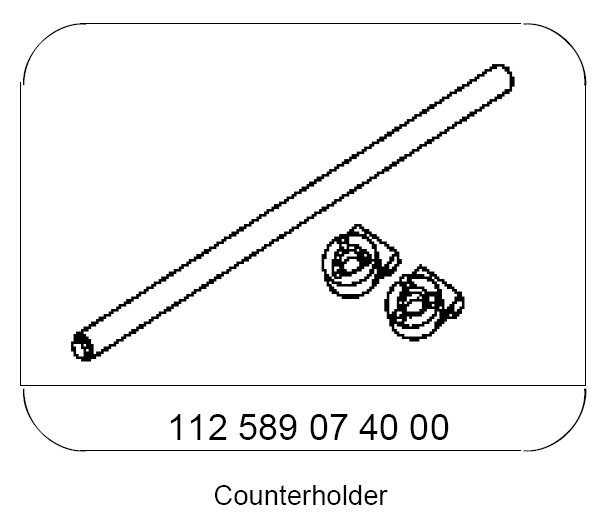

Special Tools:
