Blower Motor Resistor: Service and Repair

AR83.25-P-1220T Remove/Install Electronic Blower Control Unit

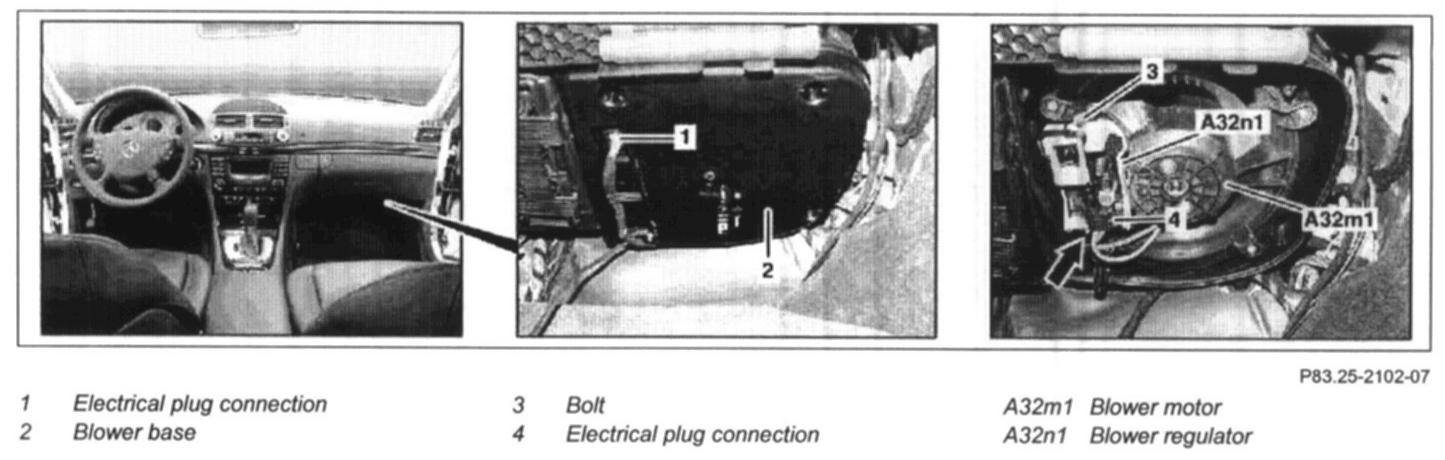

1 Disconnect ground cable of battery
2 Remove cover below instrument panel (right)
3 Disconnect electrical connector (1).
4 Unscrew screws from blower base (2)
5 Remove blower base (2)
6 Disconnect electrical connector (4) of the blower motor (A32m1) on the blower regulator (A32n1)
7 Unscrew screw (3) and hidden screw (arrow) and remove blower regulator (A32n1)
8 Install in the reverse order.
9 Perform function check.
