FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Auxiliary Cabin Heater
>>
Description and Operation
>>

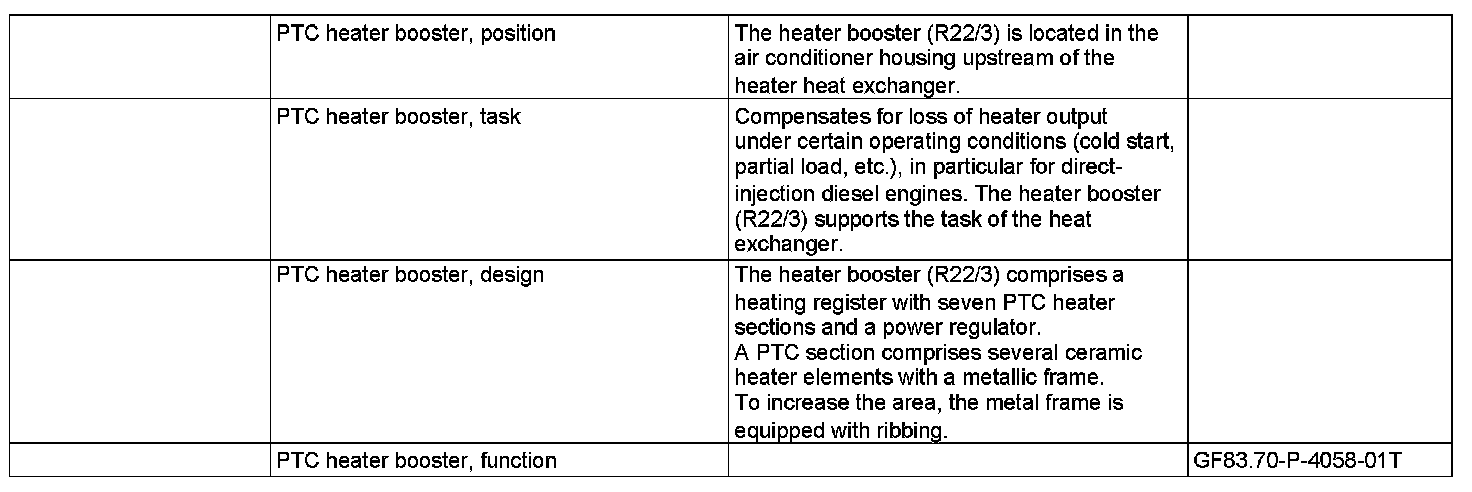

GF83.70-P-4058T PTC Heater Booster, Location/Task/Design/Function
GF83.70-P-4058T PTC Heater Booster, Location/Task/Design/Function
GF83.70-P-4058T PTC Heater Booster, Location/task/design/function

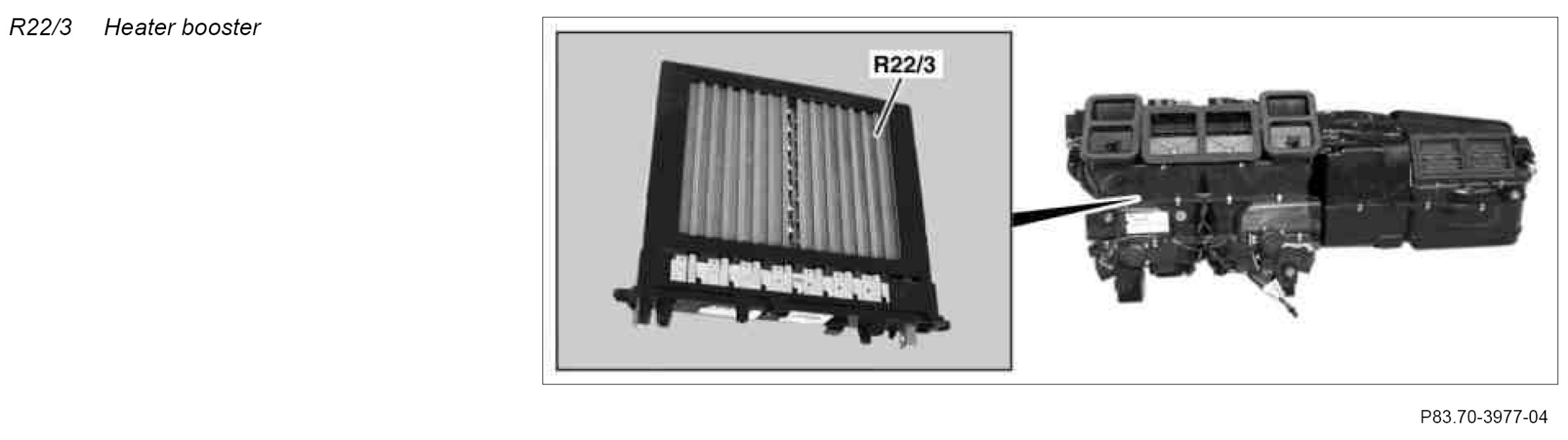

Component Identification:
