FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Exhaust System
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR49.10-P-7000TI Remove, install
exhaust system
complete

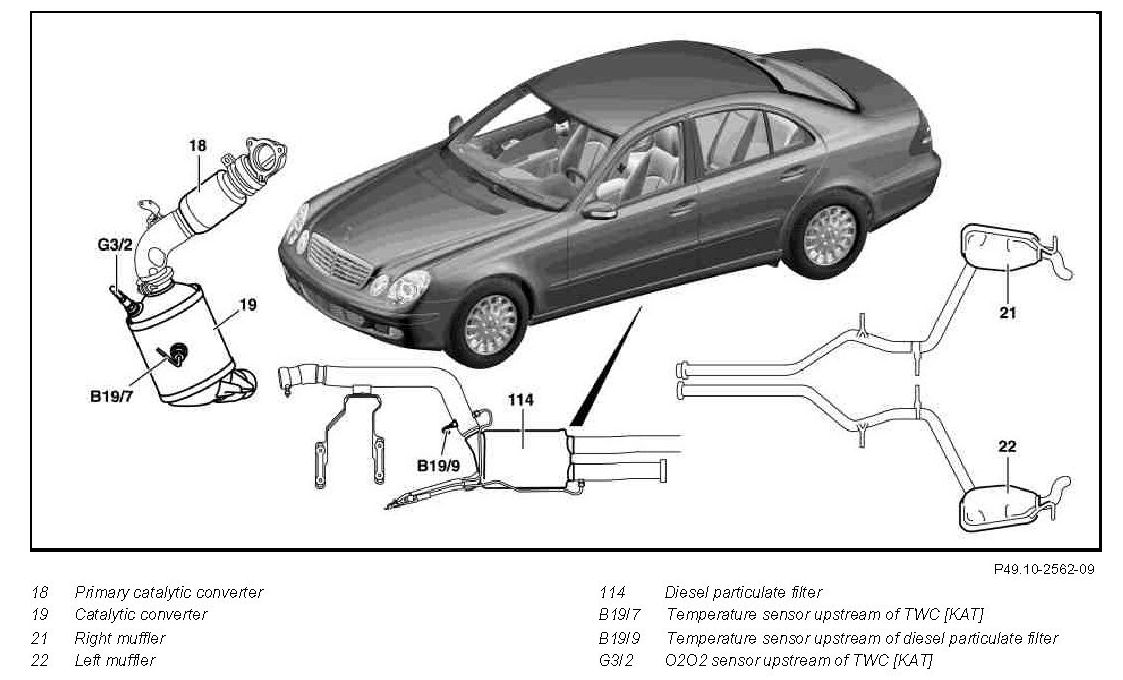

Component Identification:

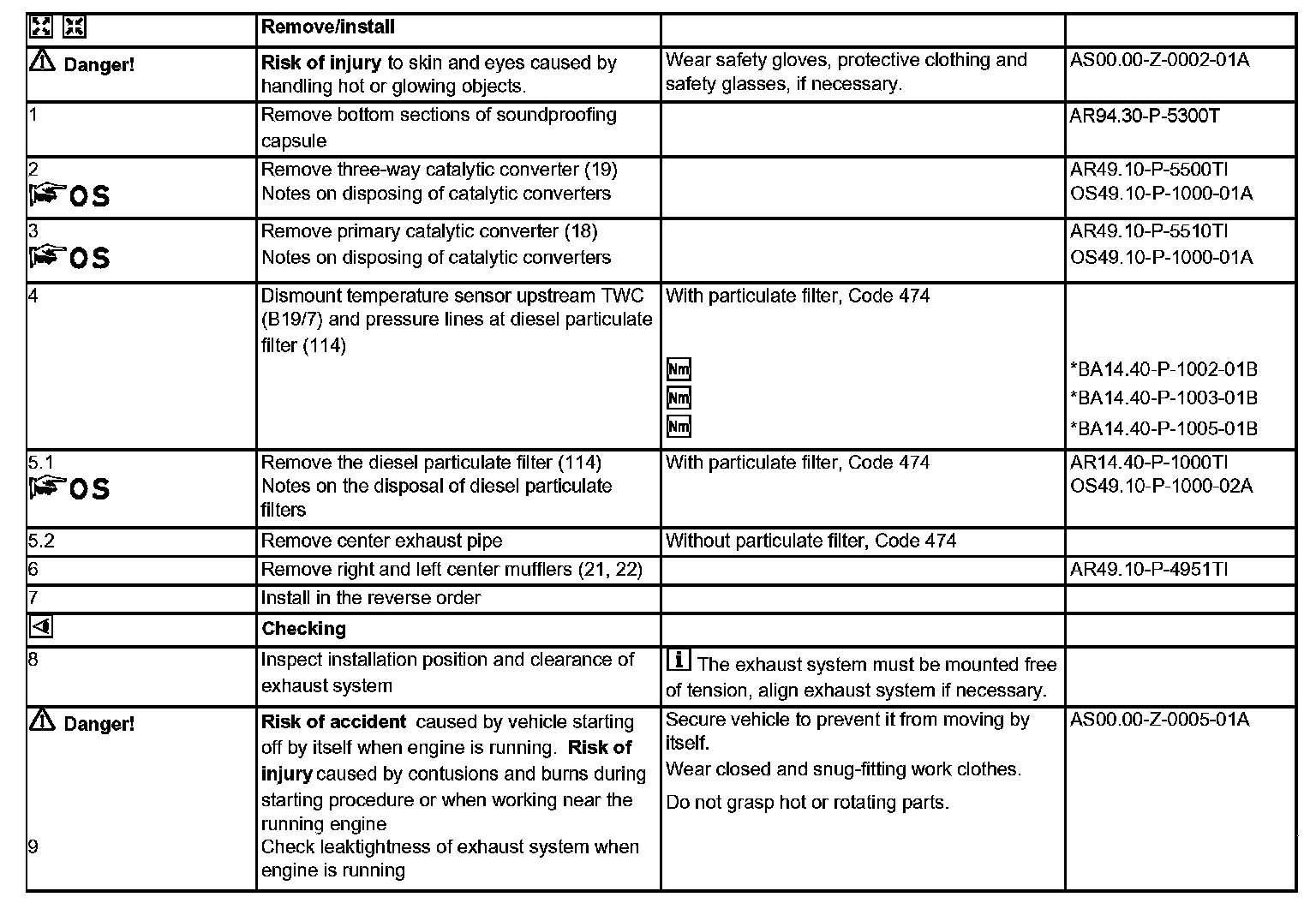

Remove/install Steps 1-9:

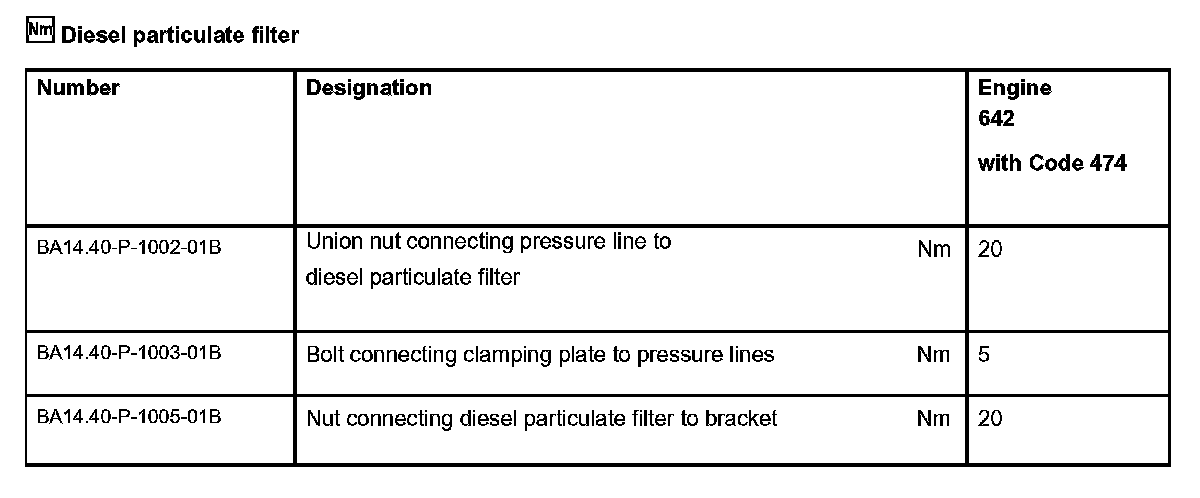

Diesel particulate filter:
