AR01.00-P-1300TI Check Cylinders For Leaks
AR01.00-P-1300TI Check Cylinders For Leaks
AR01.00-P-1300TI Check cylinders for leaks

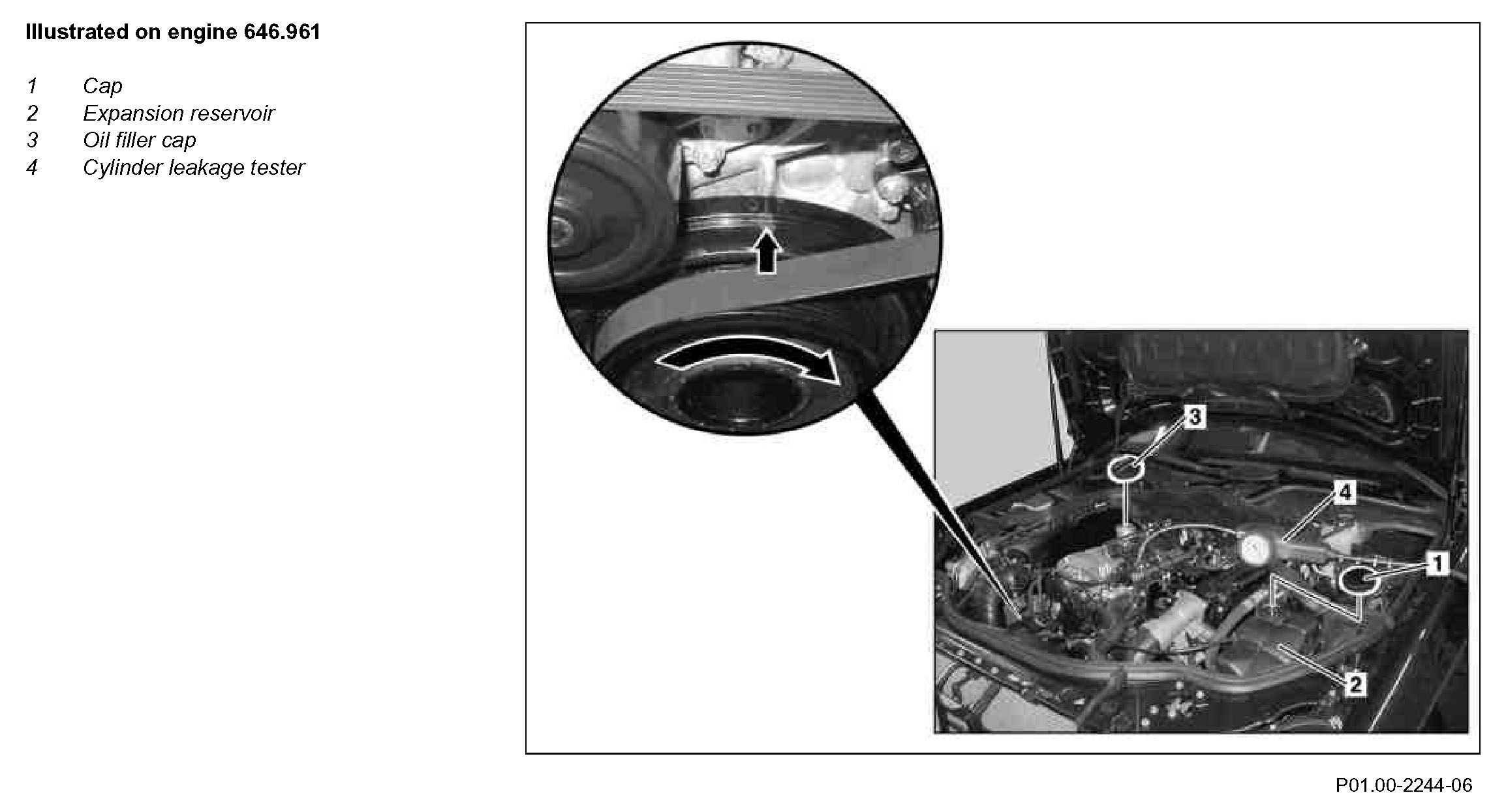

Component Identification:

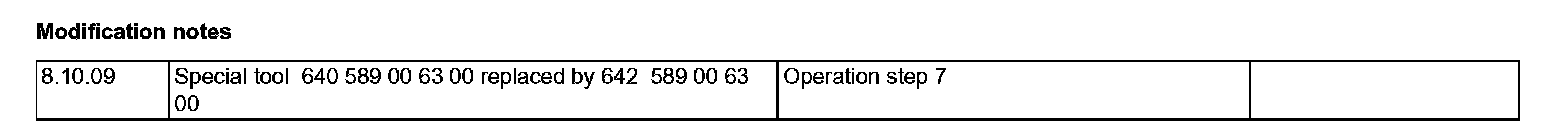

Modification notes:

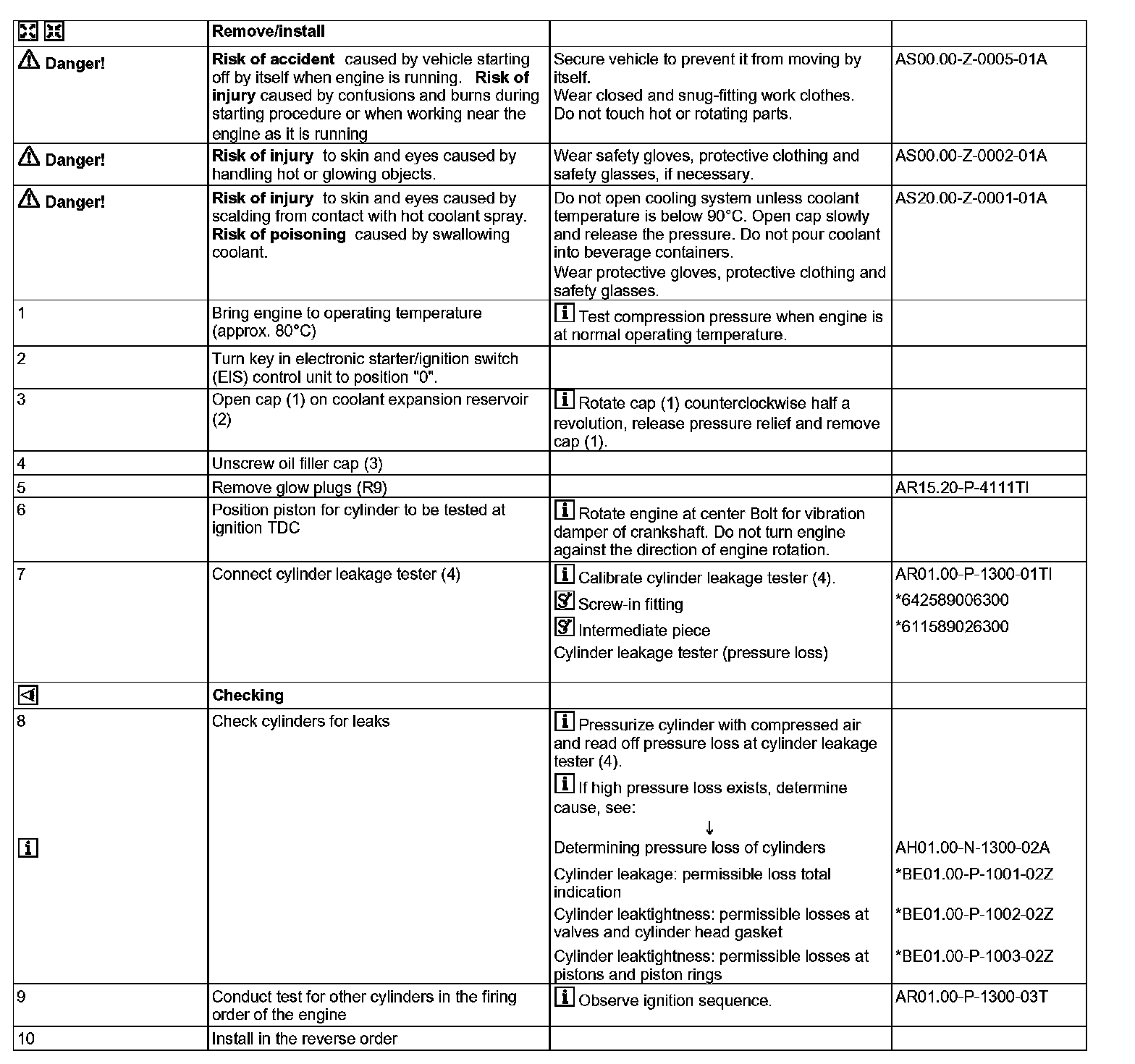

Steps 1-10:

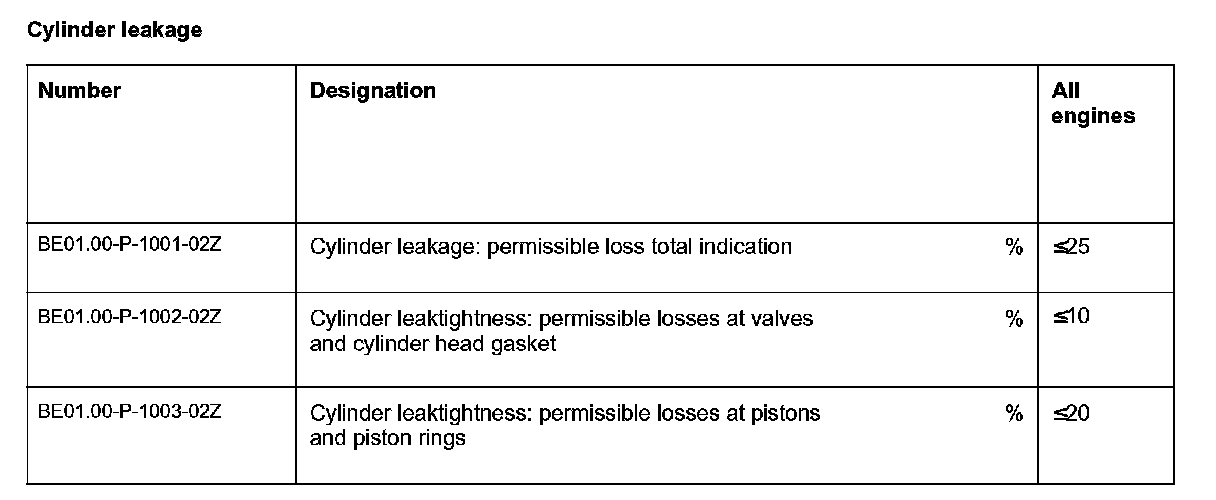

Cylinder leakage:
Special Tools:
