AR18.10-P-2140OM Replace the Oil Pump Chain

AR18.10-P-2140OM Replace The Oil Pump Chain
ENGINES 642

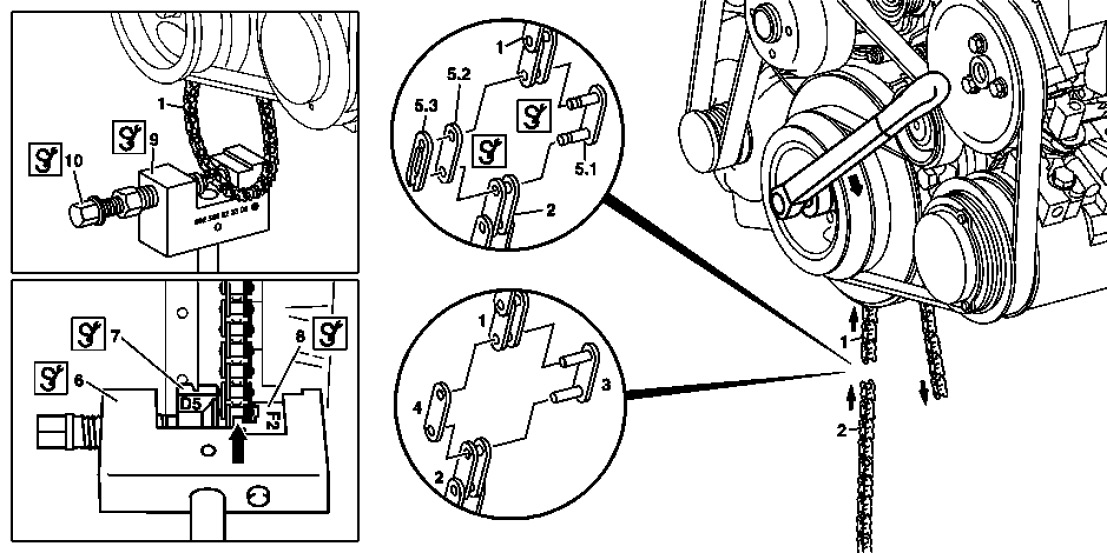

1 Old oil pump chain
2 New oil pump chain
3 Link
4 Outer plate
5.1 Assembly clip fastener
5.2 Assembly outer plate
5.3 Assembly locking element
6 Rivet press tool
7 Assembly insert (digit D5)
8 Assembly insert (digit F2)
9 Chain separating tool
10 Thrust spindle








602 589 00 98 00
Case





602 589 05 63 00
Thrust spindle





602 589 02 33 00
Chain separating tool





602 589 05 63 01
Thrust pins





602 589 04 63 00
Thrust spindle





602 589 04 63 01
Thrust pins





103 589 01 63 00
Assembly inserts





602 589 00 39 00
Riveting tool





602 589 02 40 00
Assembly links
