AR18.10-P-2140-02OM Rivet Oil Pump Chain

AR18.10-P-2140-02OM Rivet Oil Pump Chain





602 589 00 39 00
Riveting tool





602 589 02 40 00
Assembly links





103 589 01 63 00
Assembly inserts





602 589 00 98 00
Case

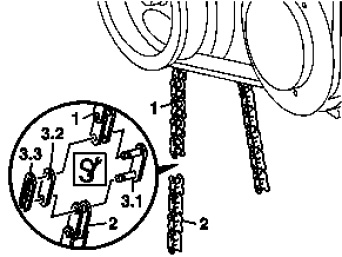

1 Connect new oil pump chain (2) and old oil pump chain (1) with assembly link (3.1), outer plate (3.2) and assembly locking element (3.3).

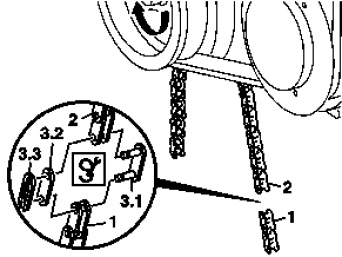

2 Slowly rotate crankshaft in the direction of engine rotation (arrowed) until it is possible to connect the ends of the new oil pump chain (2).

3 Remove assembly locking element (3.3), assembly outer plate (3.2) and assembly connecting link (3.1). Place old oil pump chain (1) to the side.

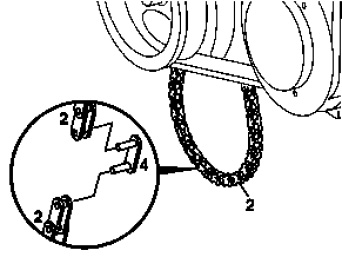

4 Connect the ends of the new oil pump chain (2) with a new riveted link (4).
Insert riveted link (4) from the rear.

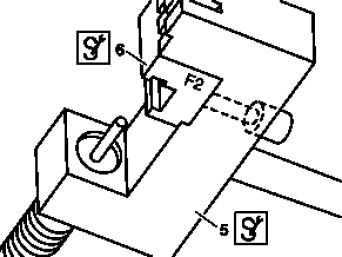

5 Place assembly insert (6) with digit F2 into riveting tool (5) and attach.

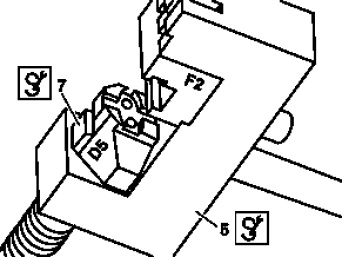

6 Place assembly insert (7) with the digit D5 into the riveting tool (5).





7 Place new outer plate (8) into the assembly insert (7).
The outer plate (8) is held by a magnet.

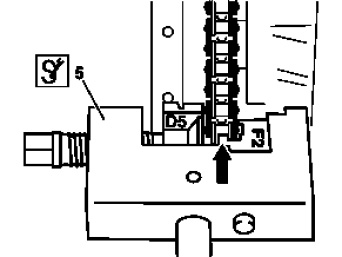

8 Fit on rivet press tool (5)
Place rivet press tool (5) in such a way that the spacer webs (arrow) lie on the rolls of the riveted link.

9 Tighten pressure screw on rivet press tool (5) until a firm resistance is felt.
While turning the screw ensure that pins of the riveted link are inserted into the holes of the outer plate (8).

10 Take off riveting tool (5).

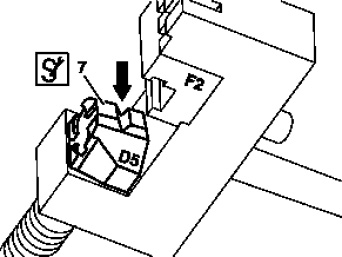

11 Transfer assembly insert (7) with the digit D5 on the riveted section (arrow).

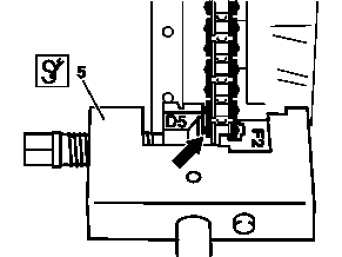

12 Fit on rivet press tool (5) exactly above the center of the pin (arrow).
Rivet every pin of the riveted link individually.

13 Tighten thrust spindle at riveting tool (5).

14 Take off riveting tool (5).

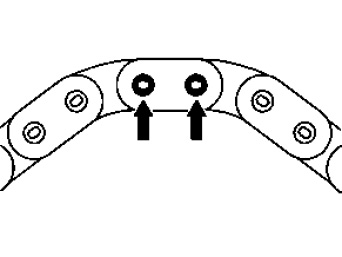

15 Check riveting (arrows) and re-rivet if required.
