AR22.10-P-4350TI Remove/Install Left Engine Support
AR22.10-P-4350TI Remove/Install Left Engine Support
AR22.10-P-4350TI Remove/install left engine support

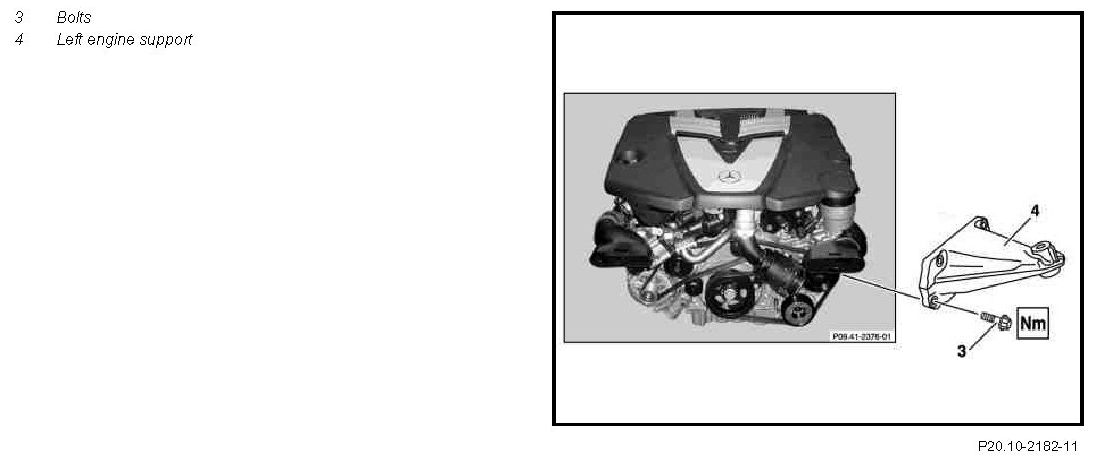

Component Identification:

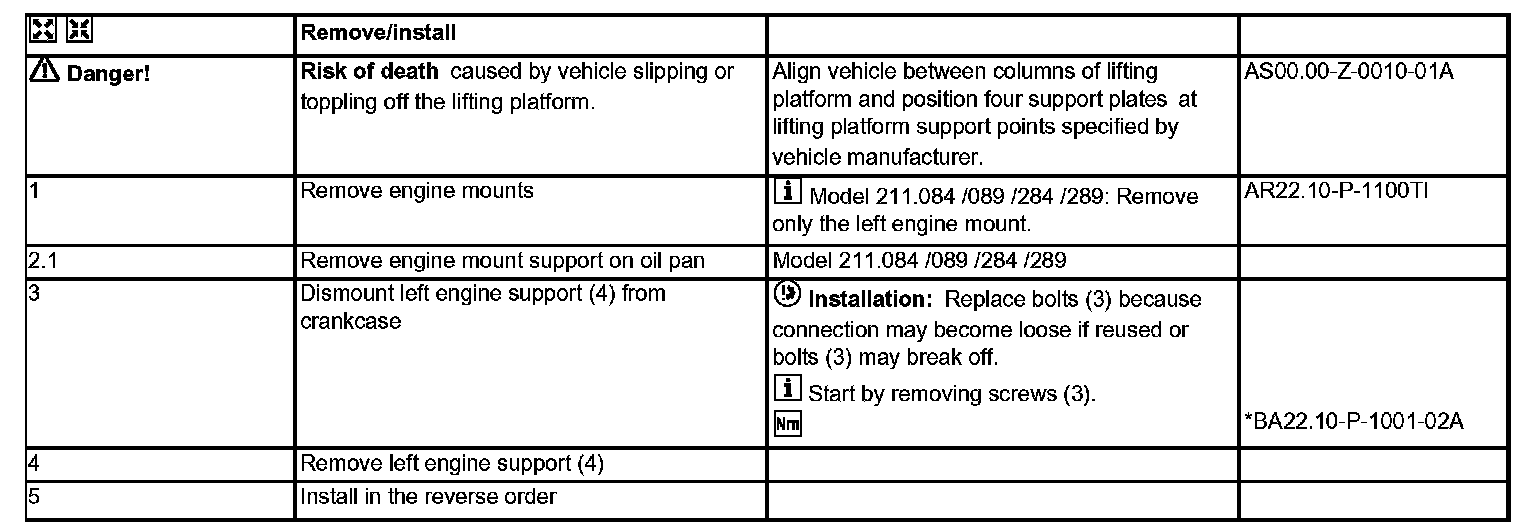

Remove/install Steps 1-5:

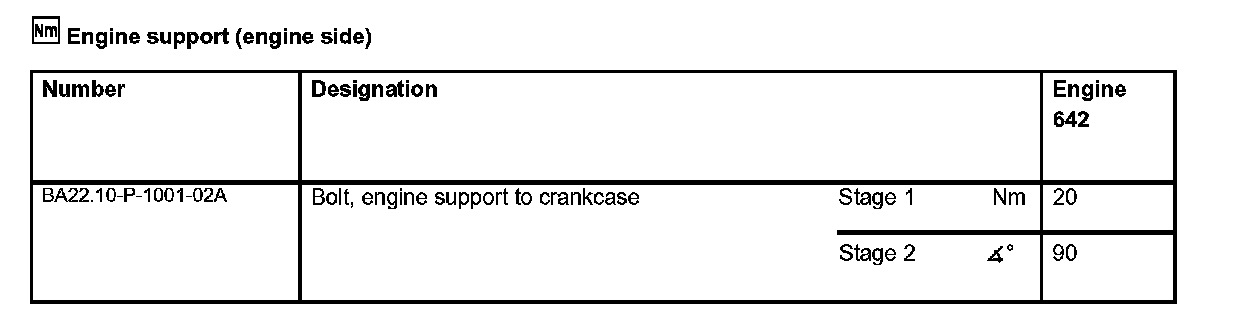

Engine support (engine side):
