AR22.10-P-4340TI Remove/Install Right Engine Support
AR22.10-P-4340TI Remove/Install Right Engine Support
AR22.10-P-4340TI Remove/install right engine support

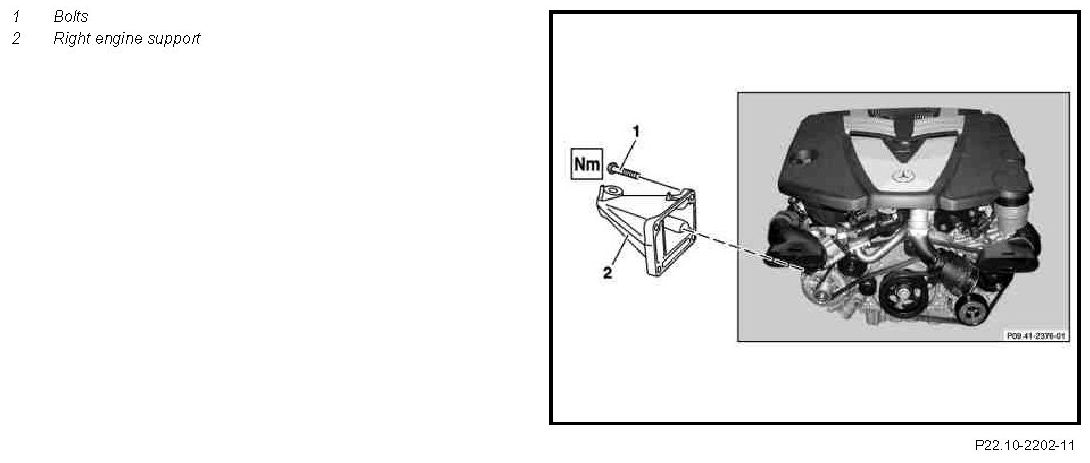

Component Identification:

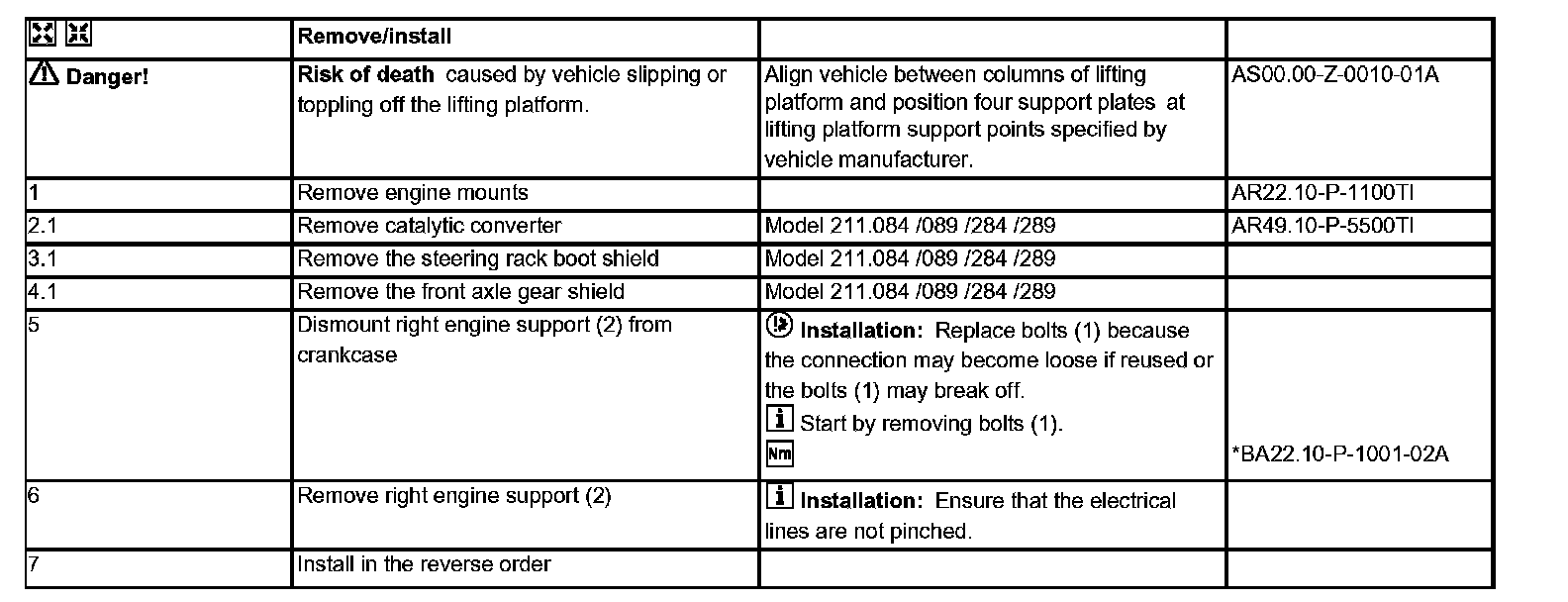

Remove/install Steps 1-7:

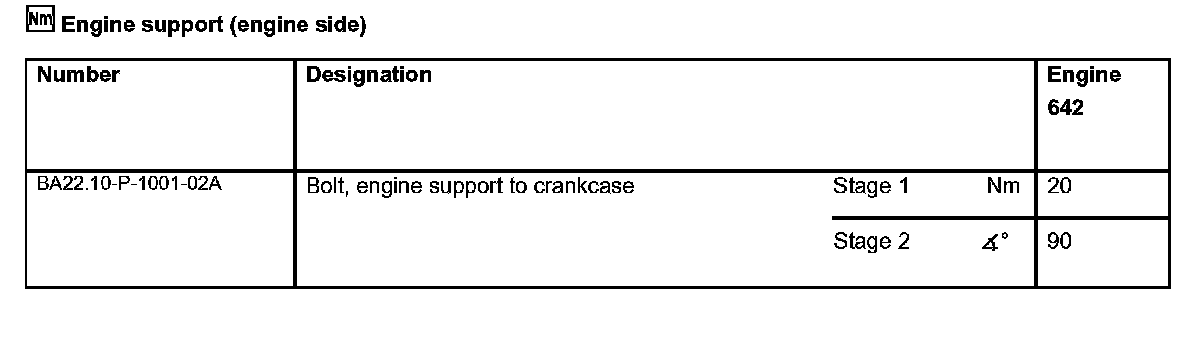

Engine support (engine side):
