AR22.10-P-4320TI Remove/Install Front Engine Supports



AR22.10-P-4320TI Remove/install front engine supports

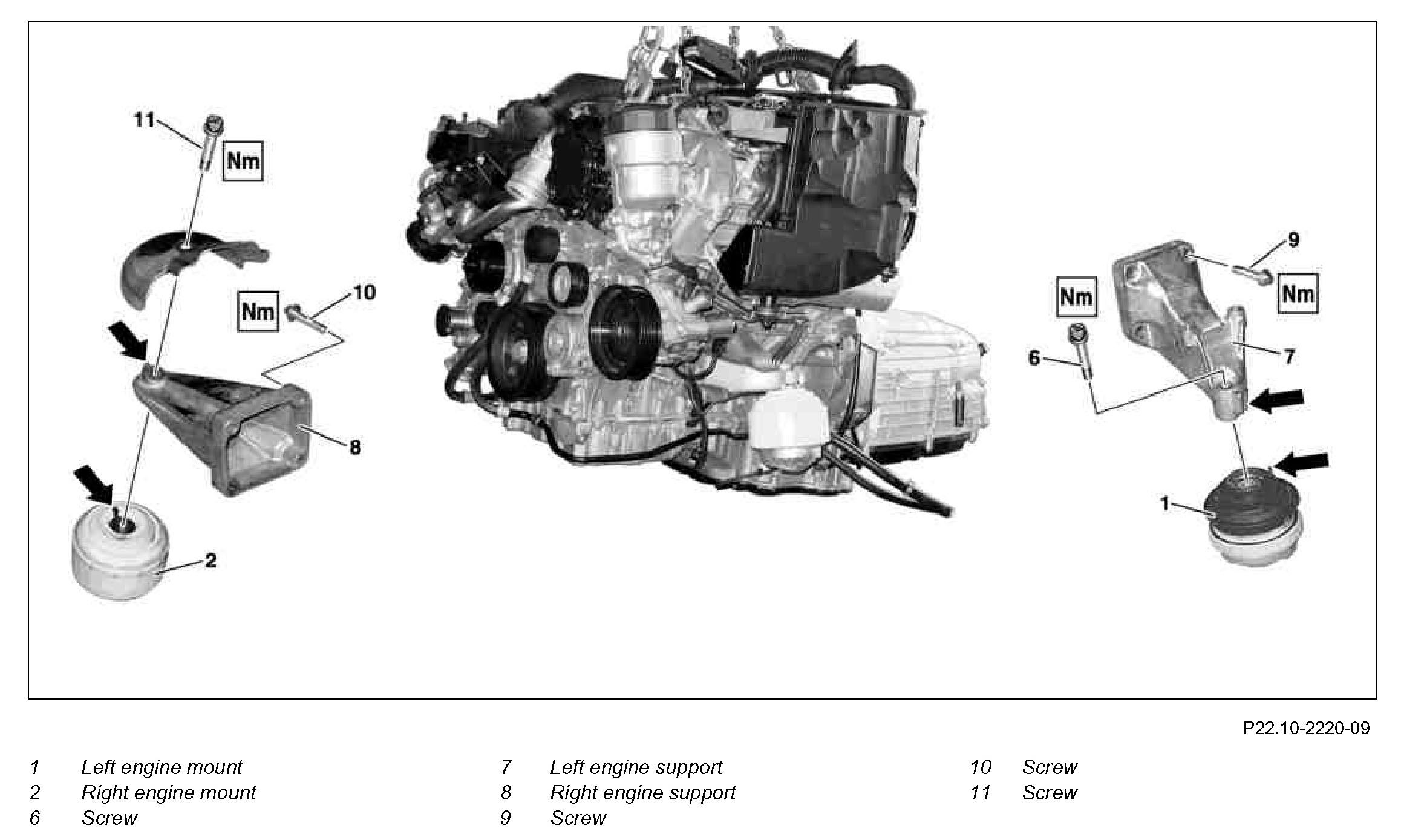

Component Identification:

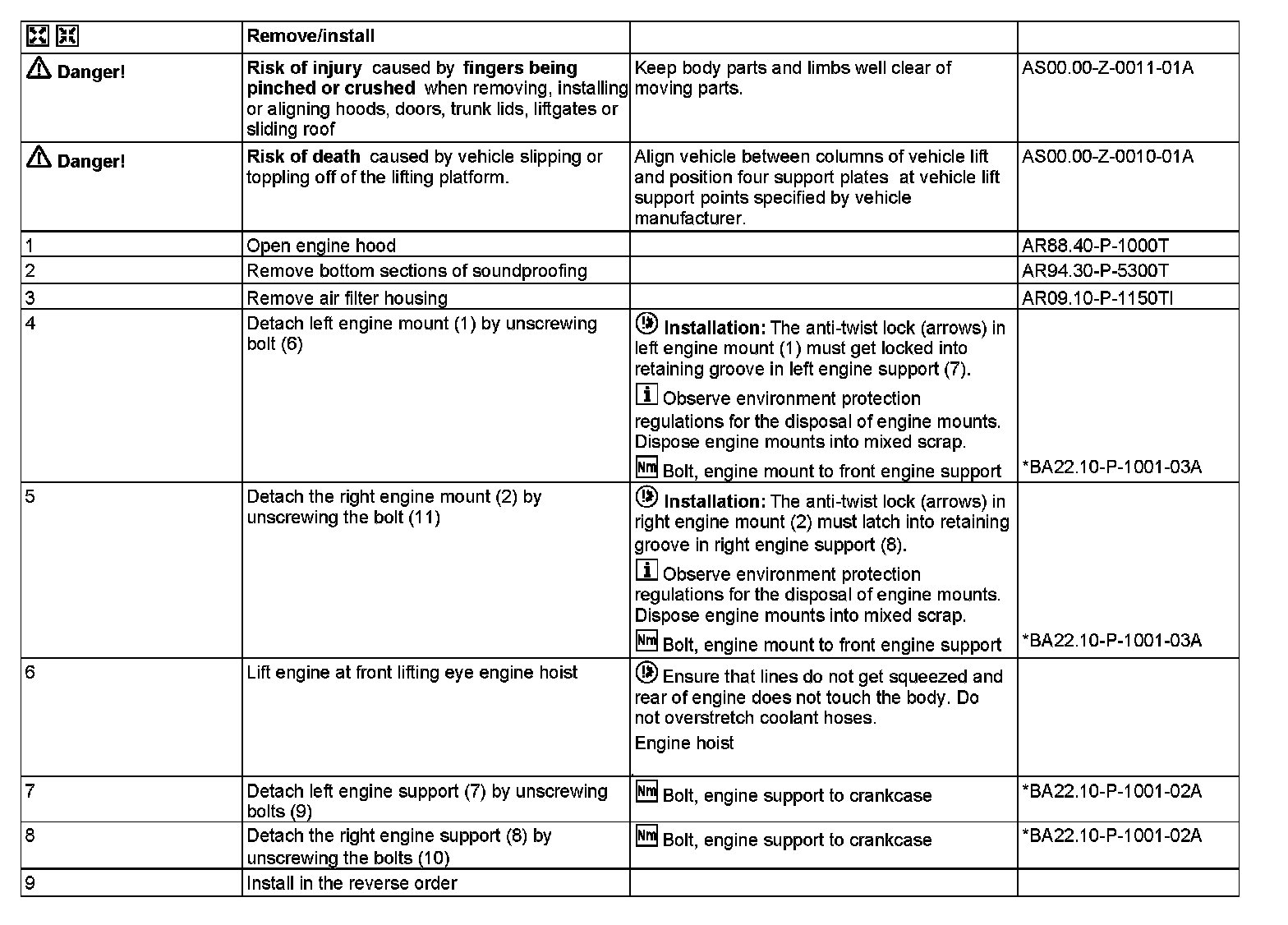

Steps 1-9:

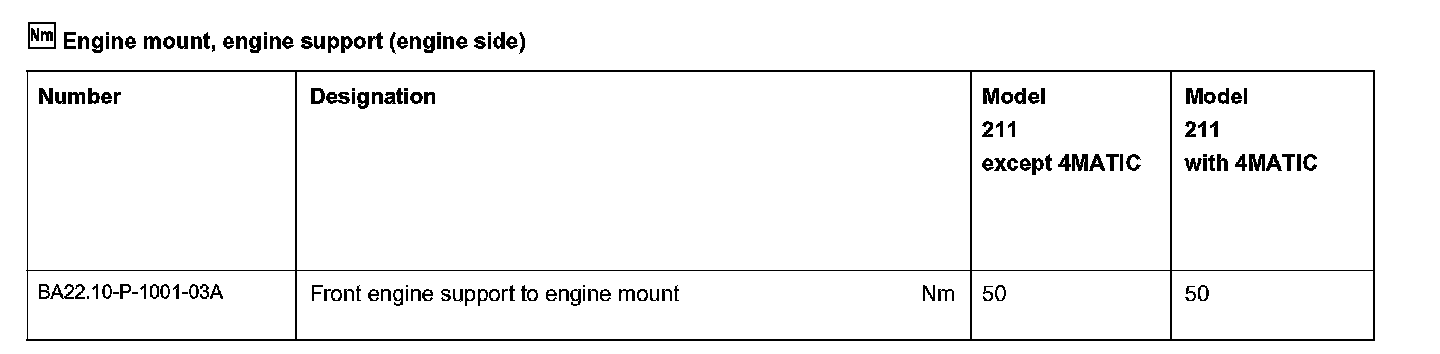

Engine mount, engine support (engine side):

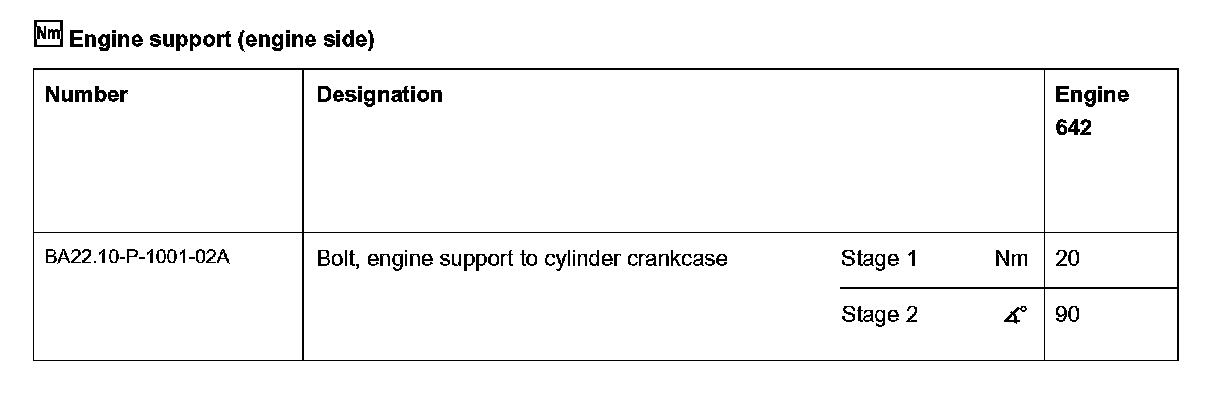

Engine support (engine side):
