Drive Belt Tensioner: Service and Repair
AR13.25-P-3200TI Removing/Installing A Poly-V-Belt Tensioning Device

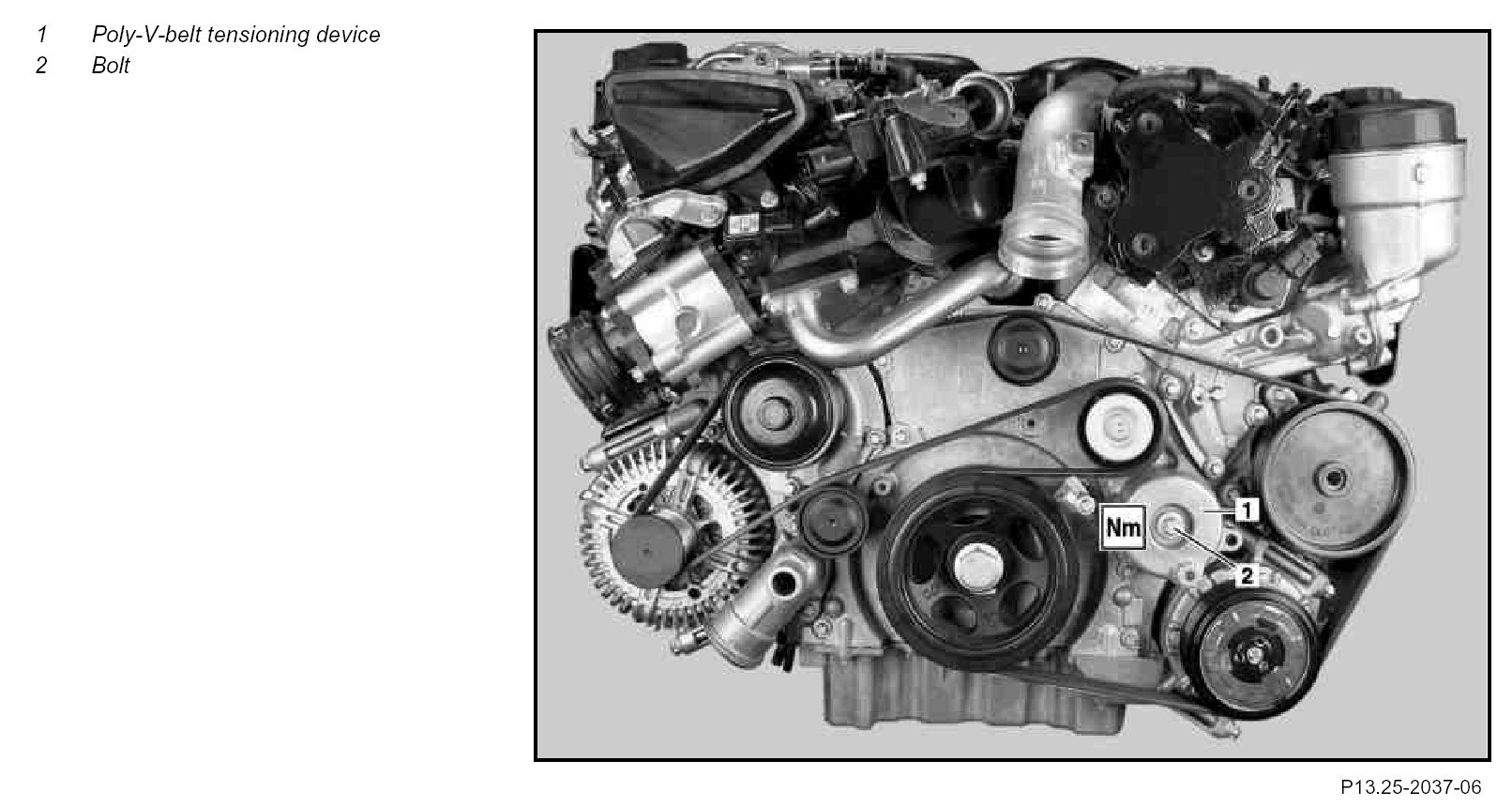

Component Identification:

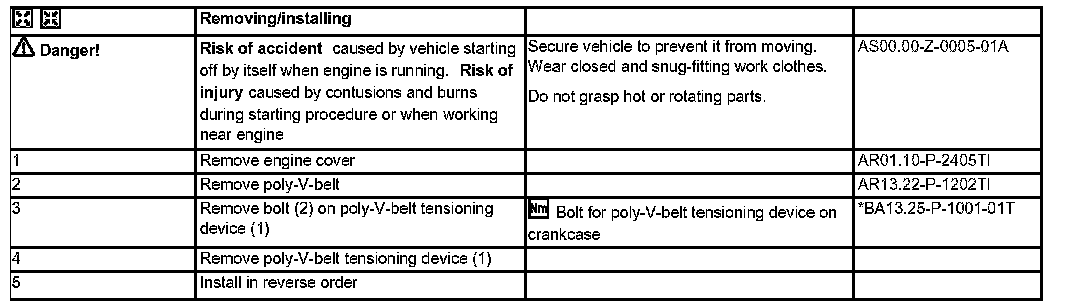

Steps 1 - 5:

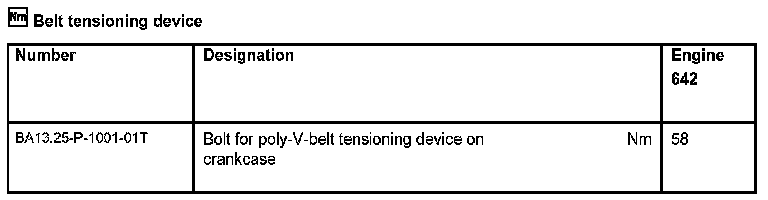

Belt Tensioning Device:
