Valve: Service and Repair
AR05.30-P-3511TI Remove/install valves

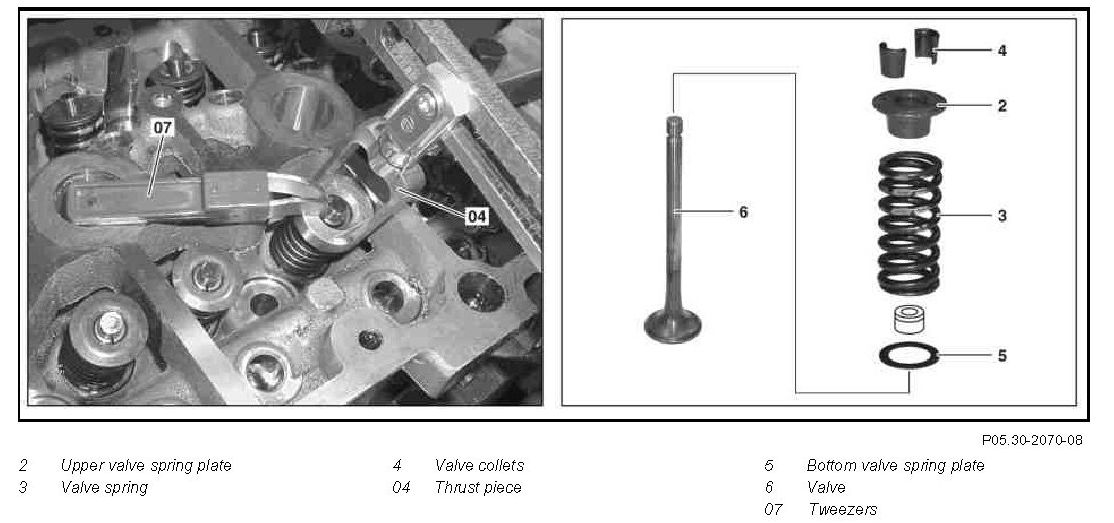

Component Identification:
Component Identification:

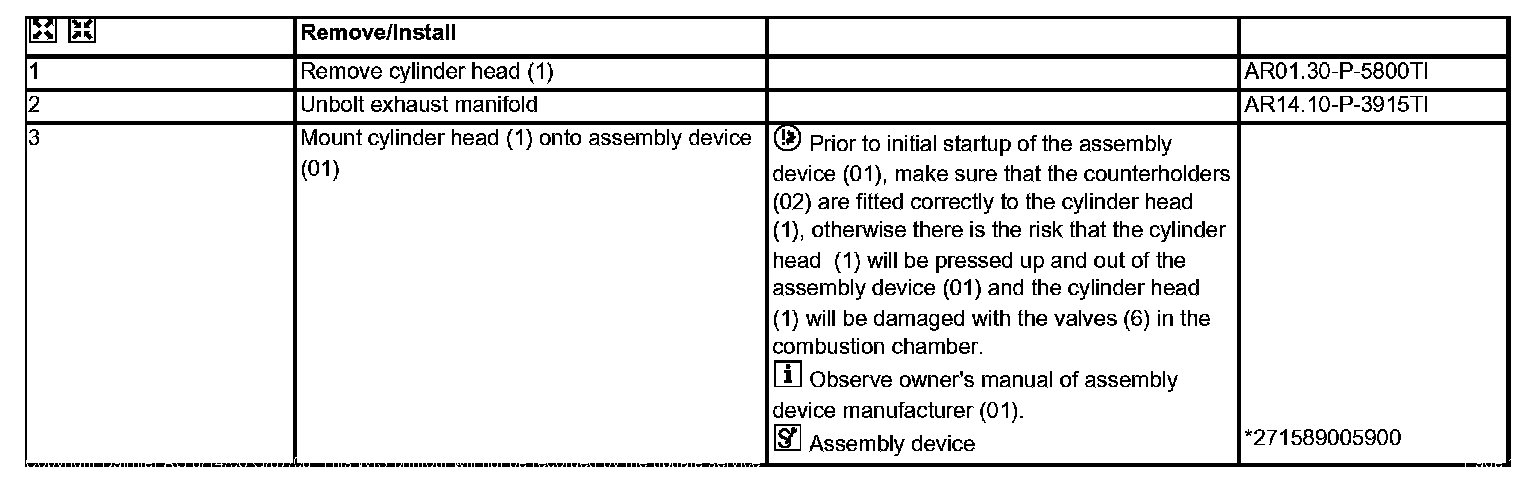

Remove/install Steps 1-3:

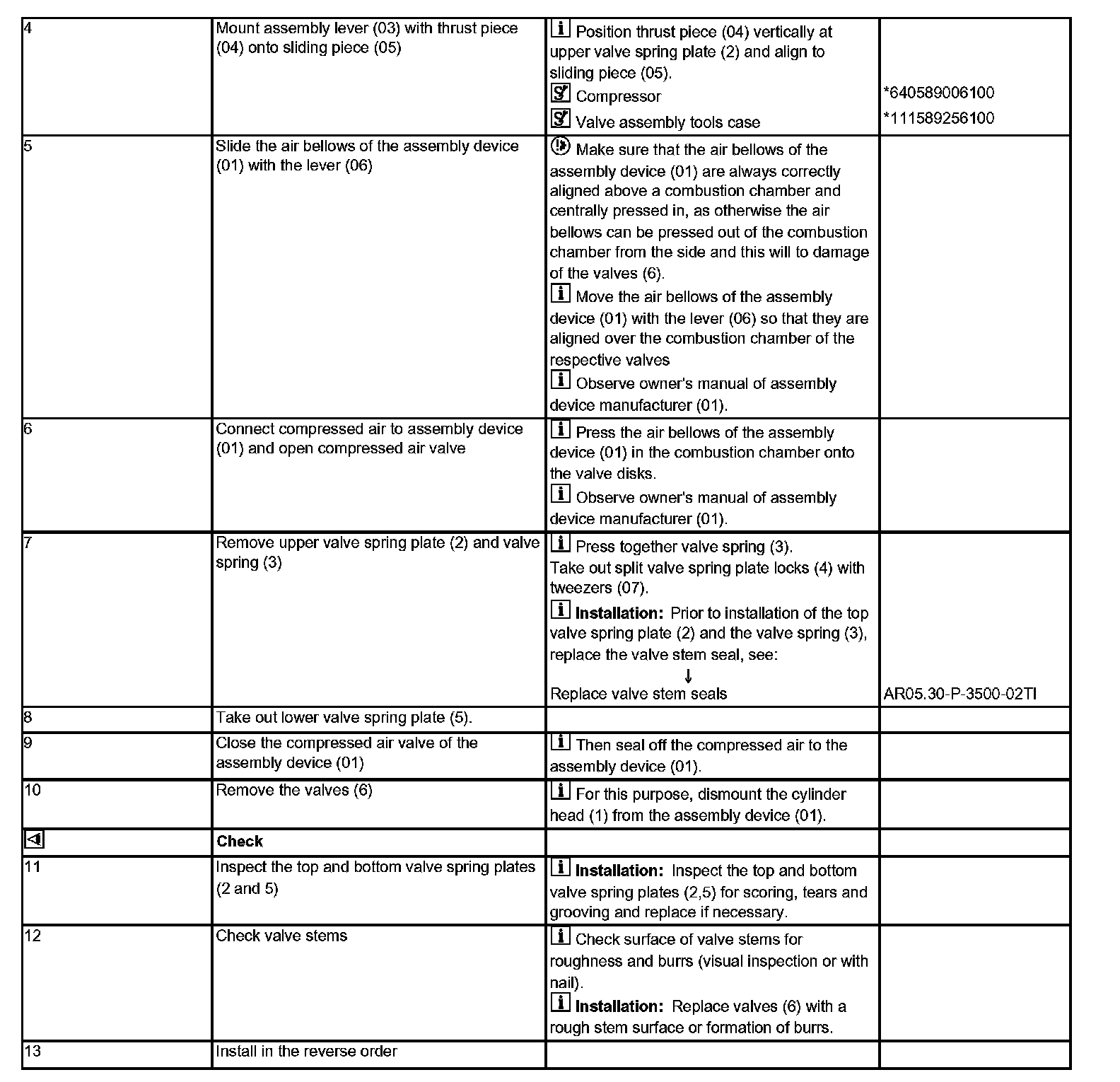

Remove/install Steps 4-13:

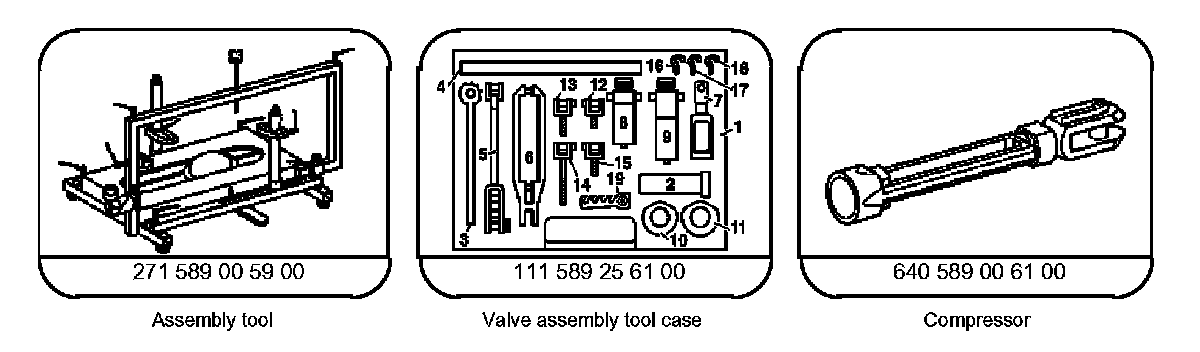

Special Tools:
