AR01.20-P-5013TI Removing/Installing The Left Cylinder Head Cover

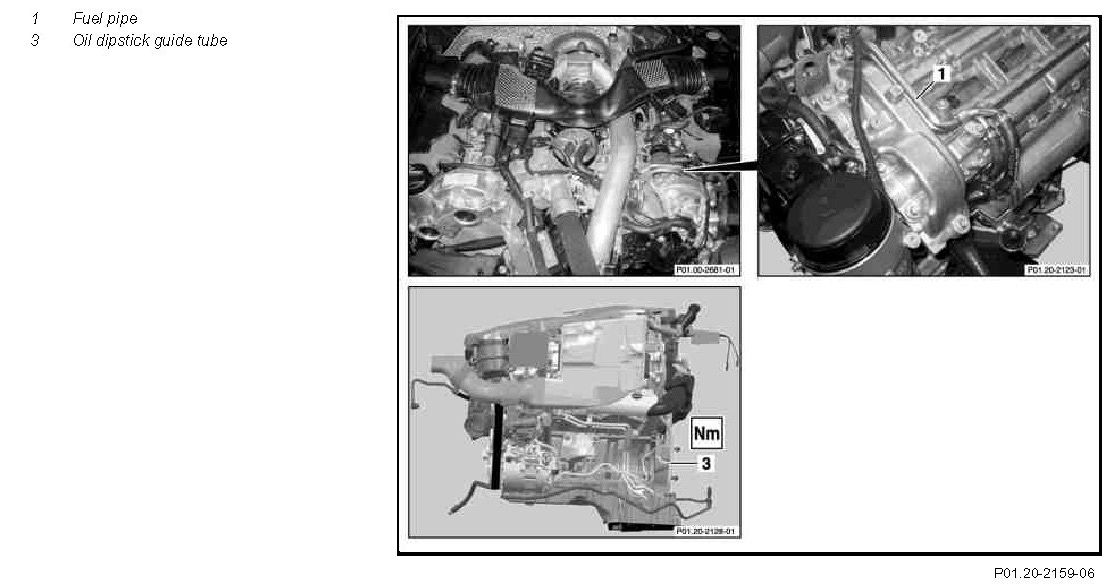

Component Identification:

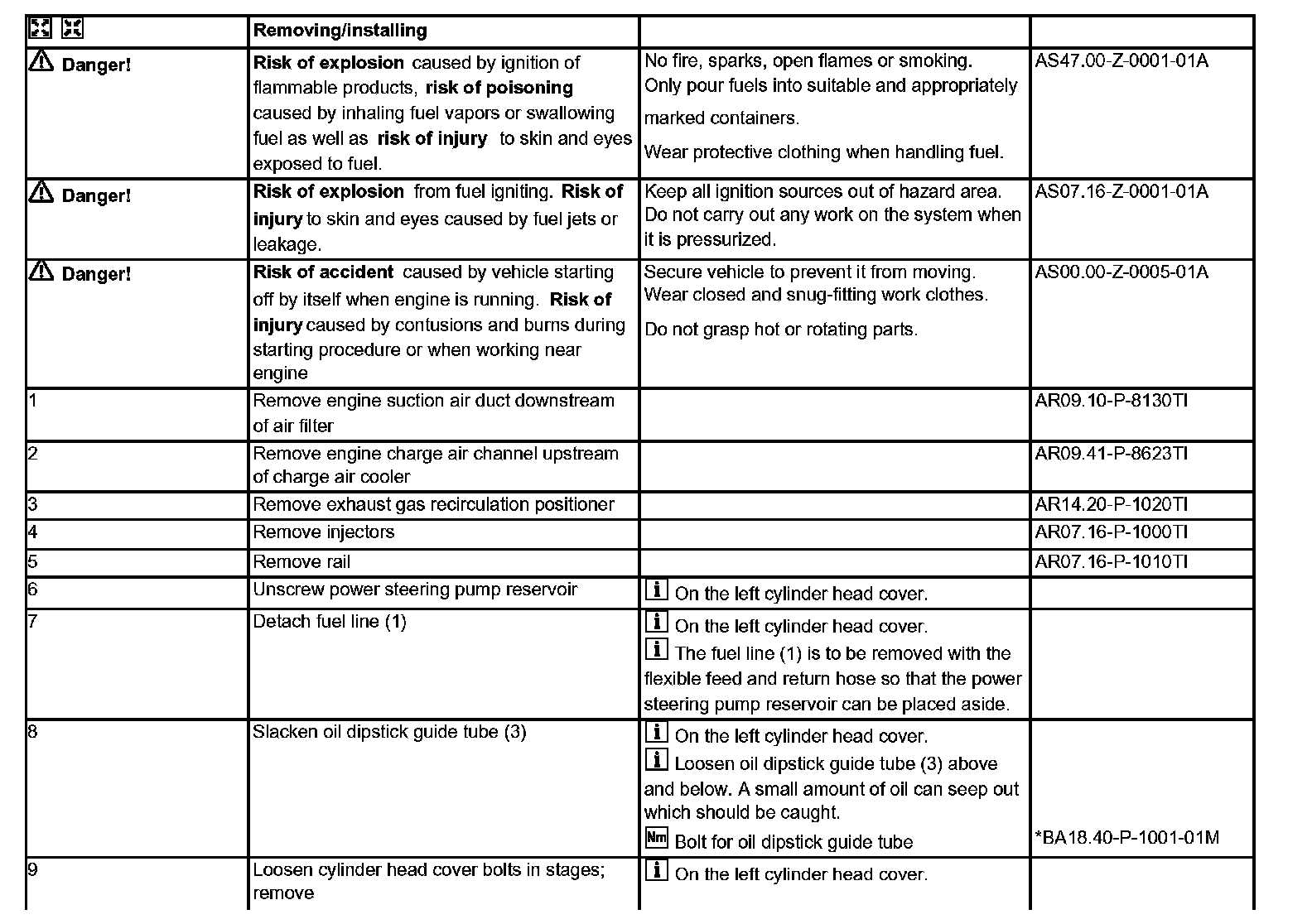

Remove/install Steps 1-9:

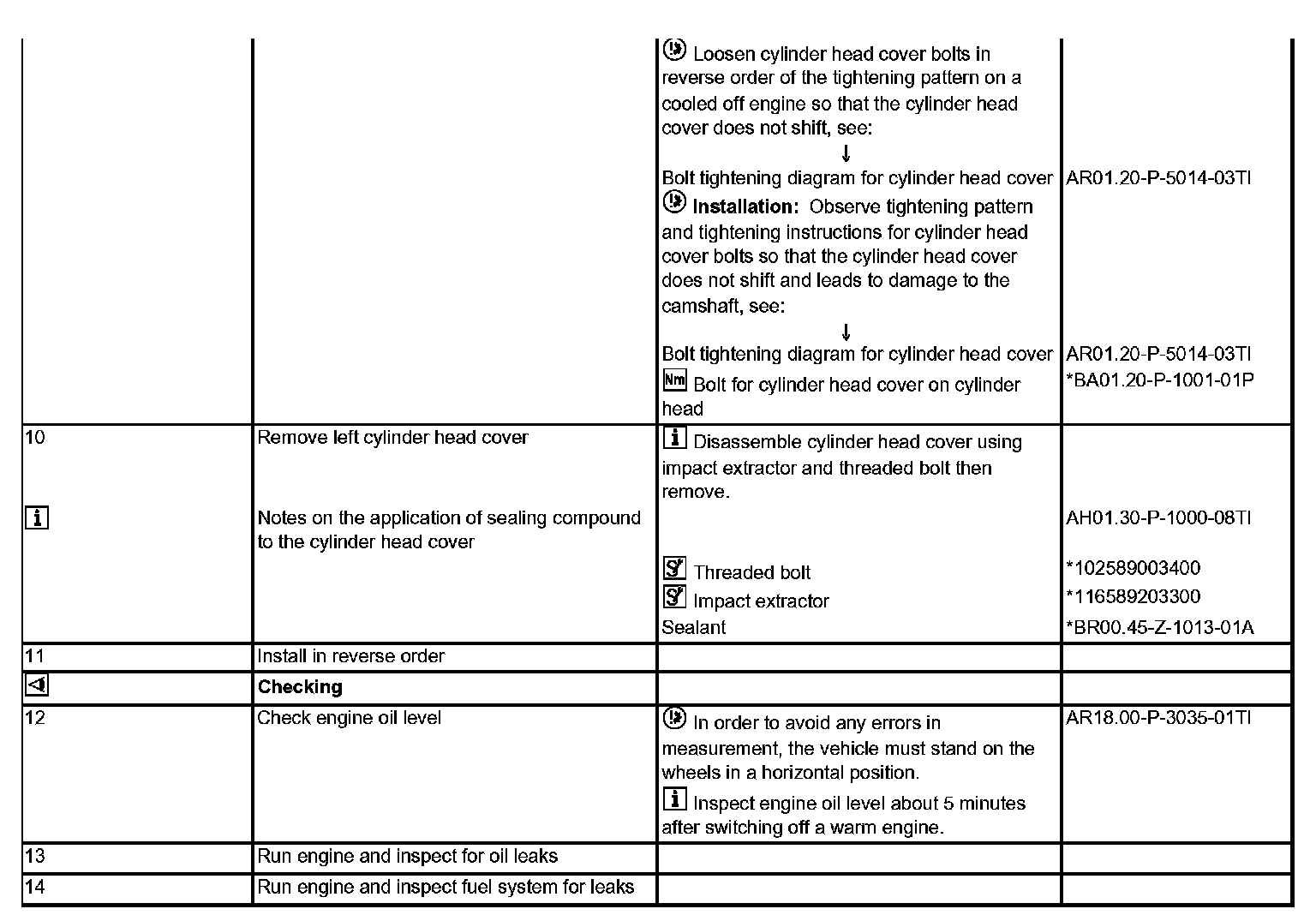

Remove/install Steps 9 (Continued)-14:

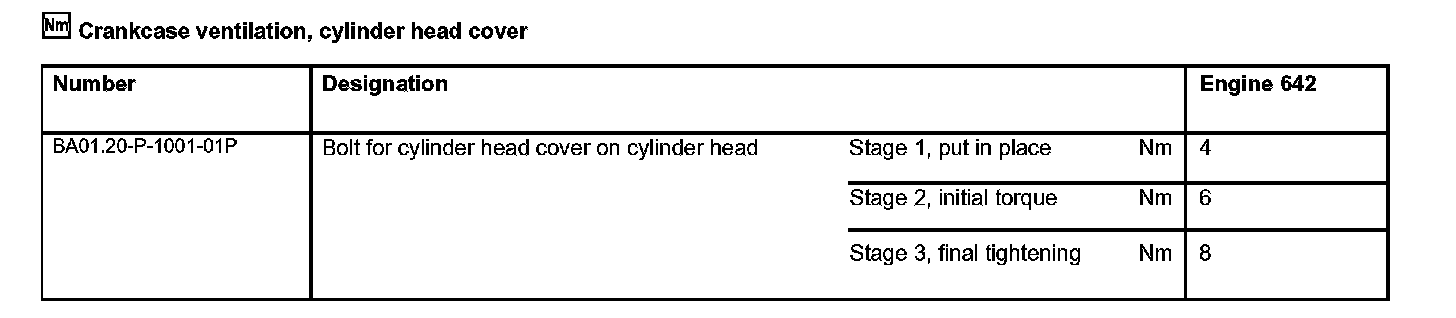

Crankcase ventilation, cylinder head cover:

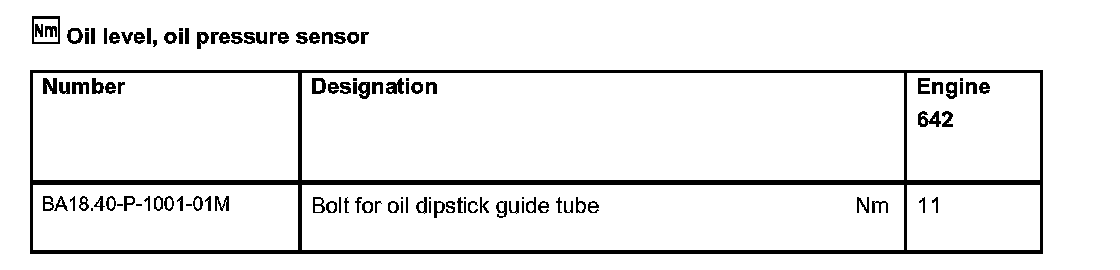

Oil level, oil pressure sensor:

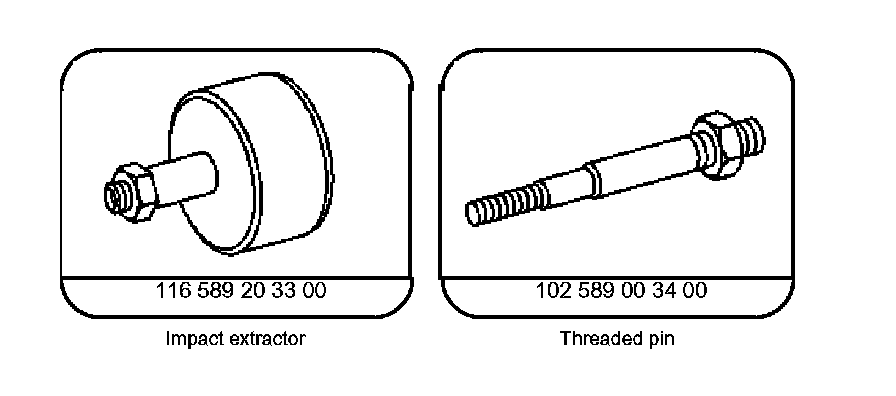

Special Tools:

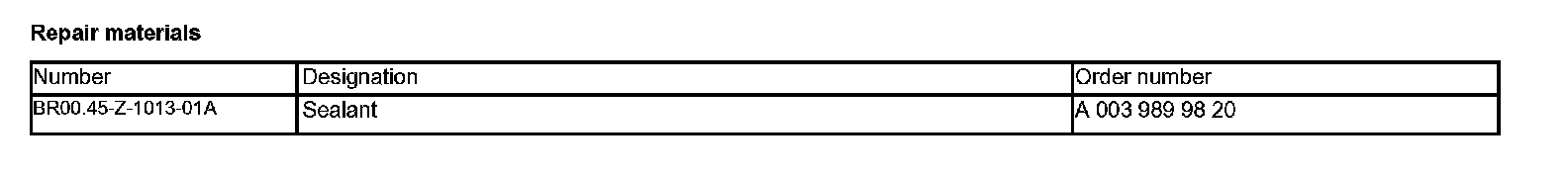

Repair materials:
