Crankshaft: Service and Repair
AR03.20-P-4351TI Remove/install
crankshaft

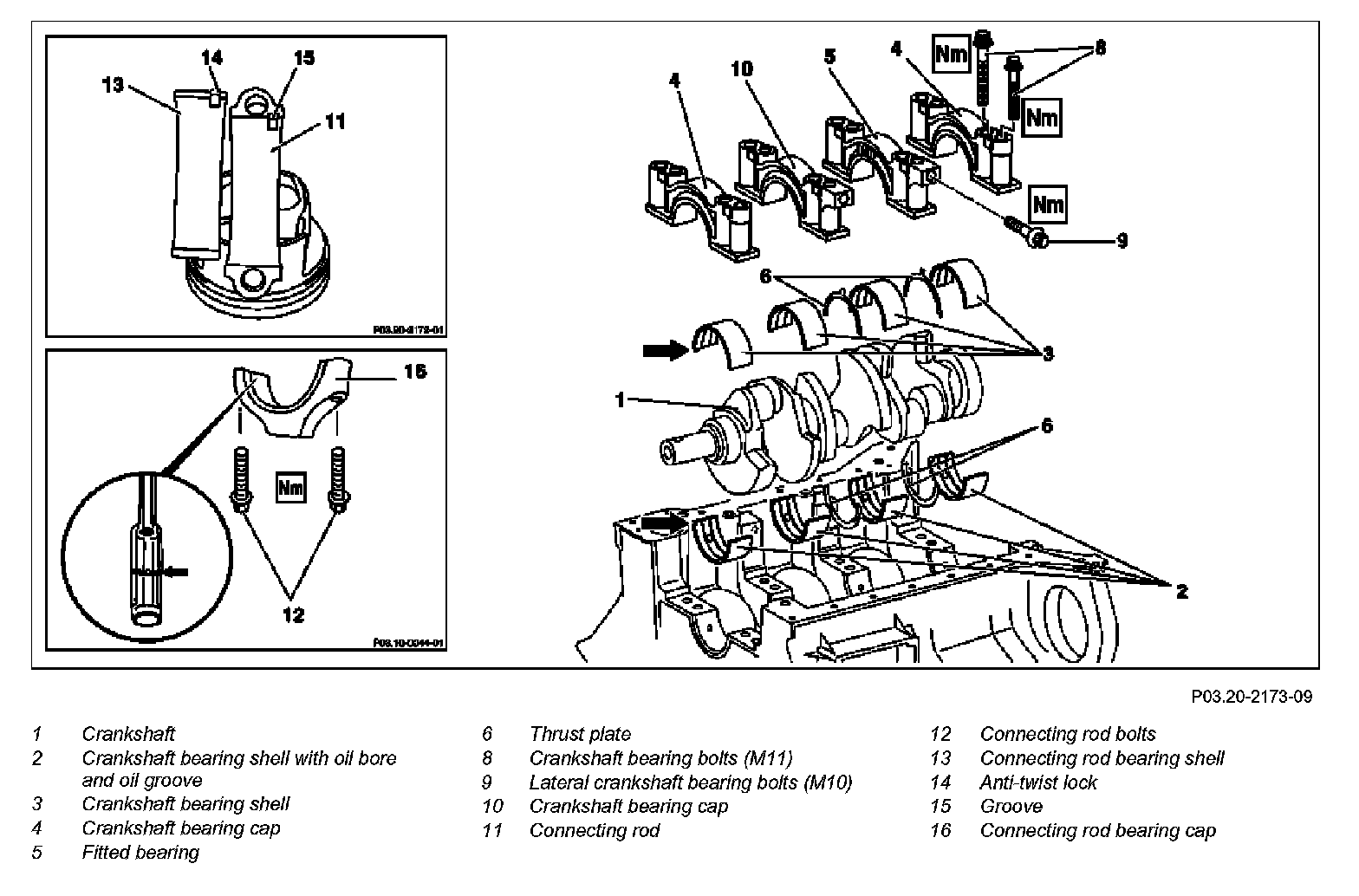

Component Identification:

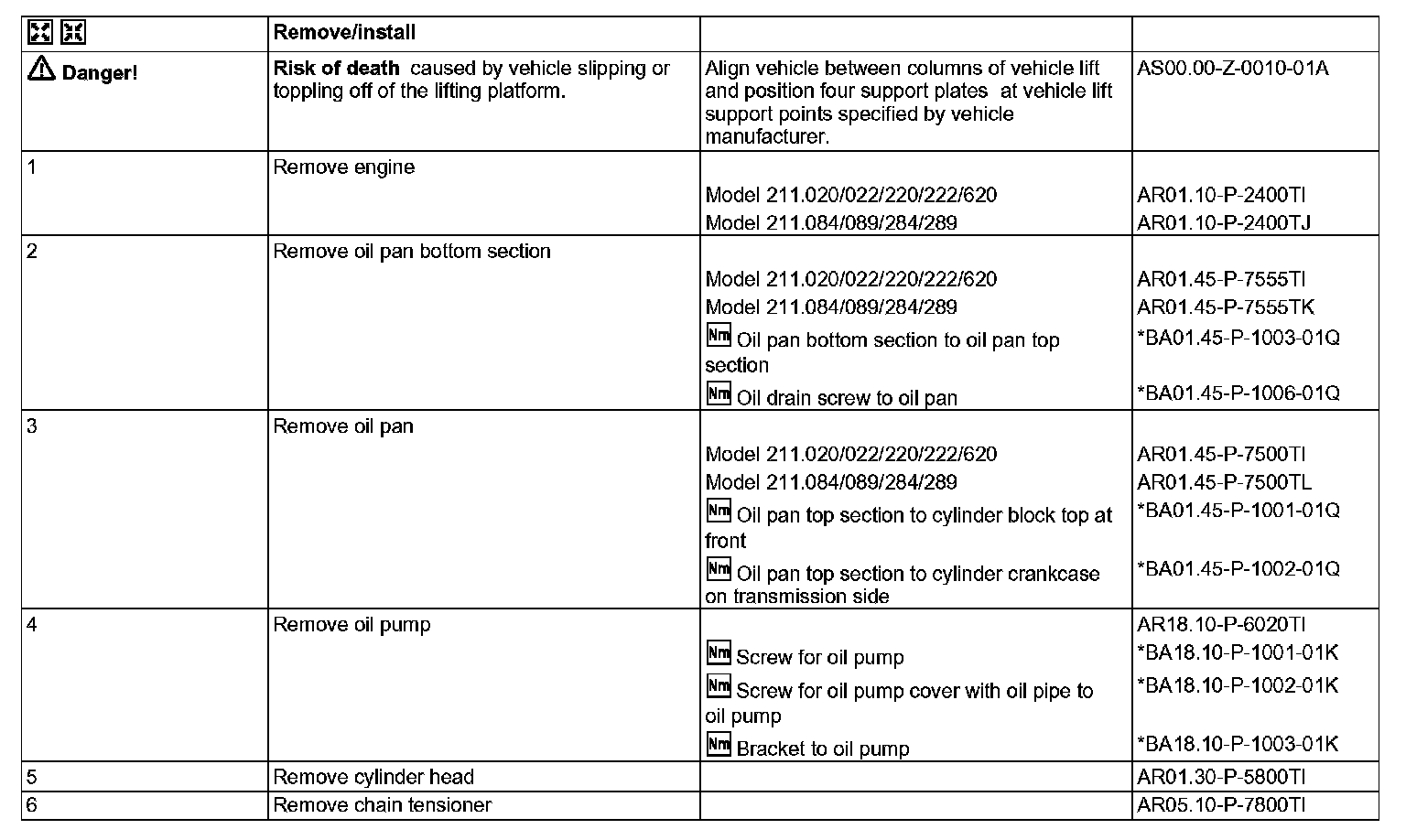

Steps 1-6:
Steps 7-17:

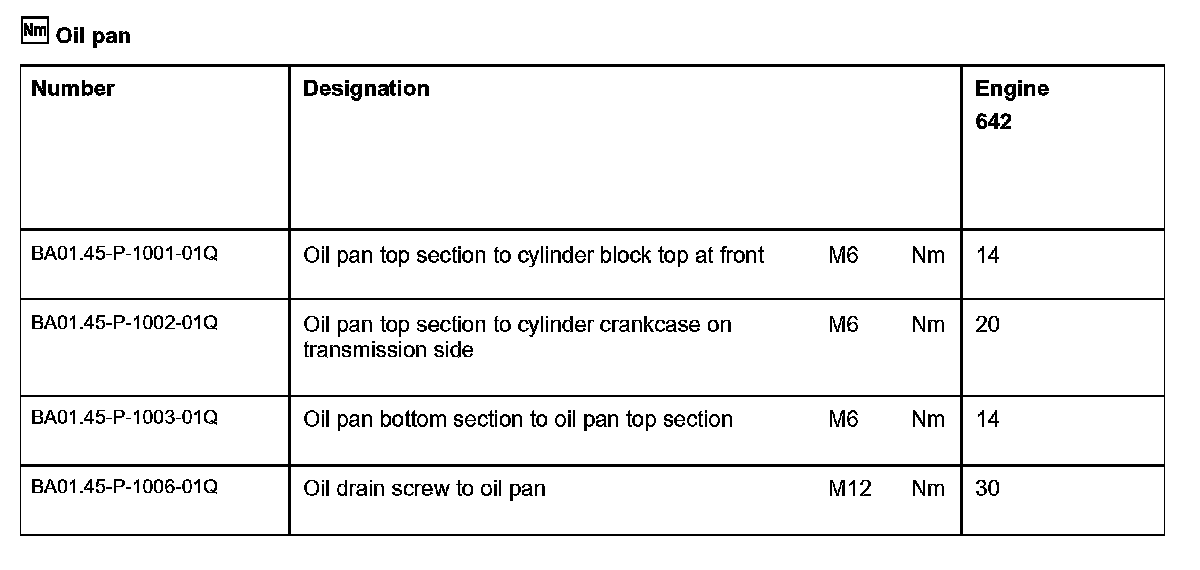

Oil pan:
Oil pump:

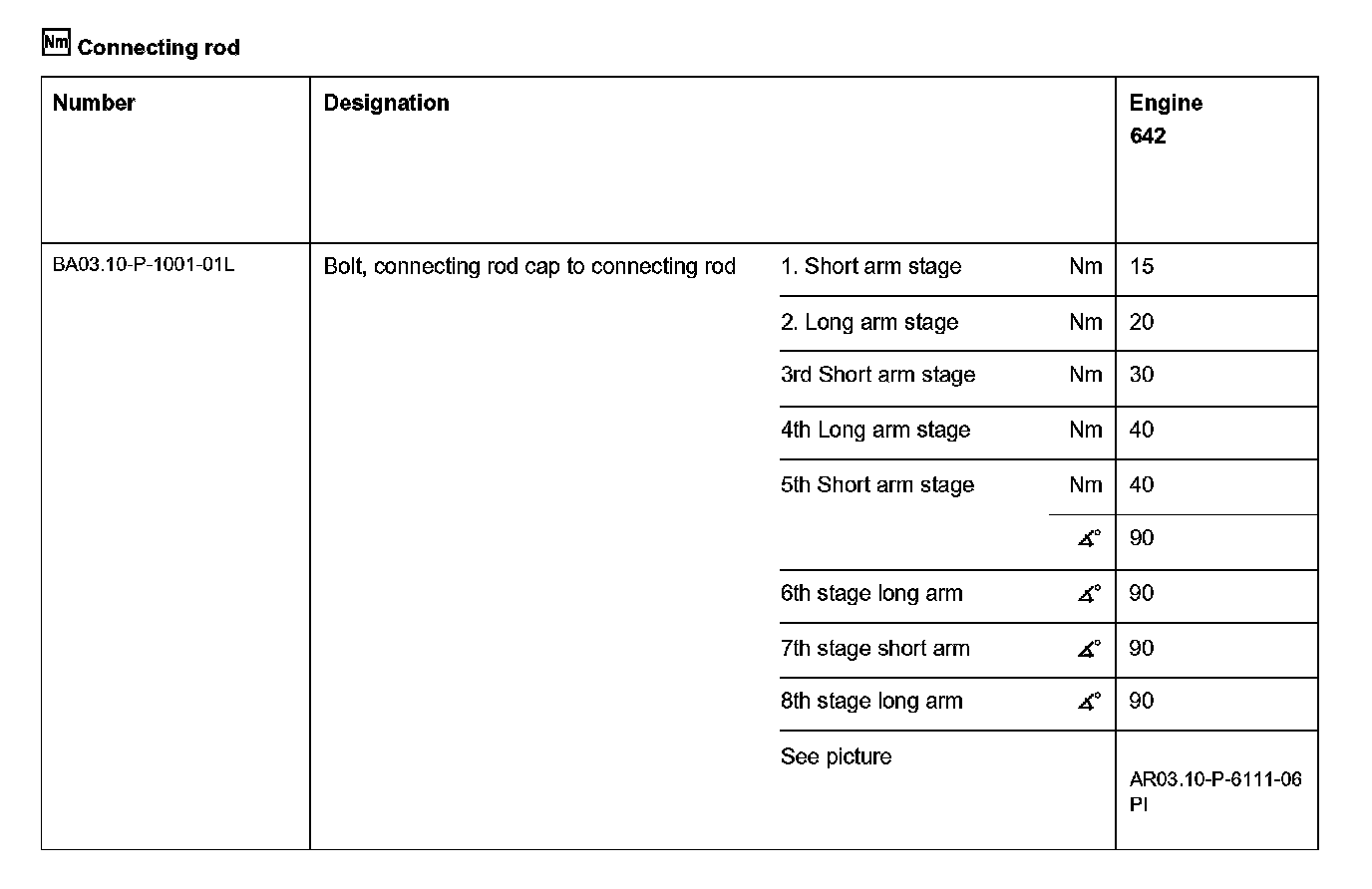

Connecting rod:
Crankshaft bearing cap:
