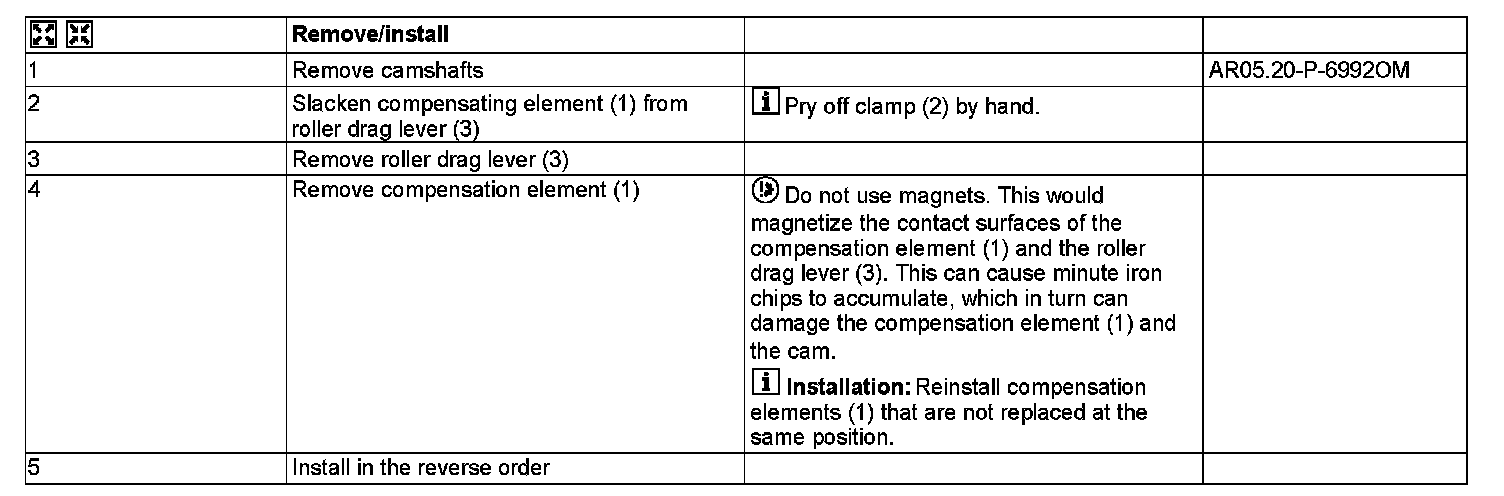

AR05.00-P-2011OM Remove, Install Hydraulic Valve Clearance Compensating Elements




AR05.00-P-2011OM Remove, Install Hydraulic Valve Clearance Compensating Elements
ENGINE 642





1 Compensating element
2 Clamp
3 Roller drag lever
