Wiring Diagram Common Rail Diesel Injection (CDI) PE07.16-U-2101DG



Wiring Diagram Common Rail Diesel Injection (CDI) Control Module pe07.16-u-2101-99dg

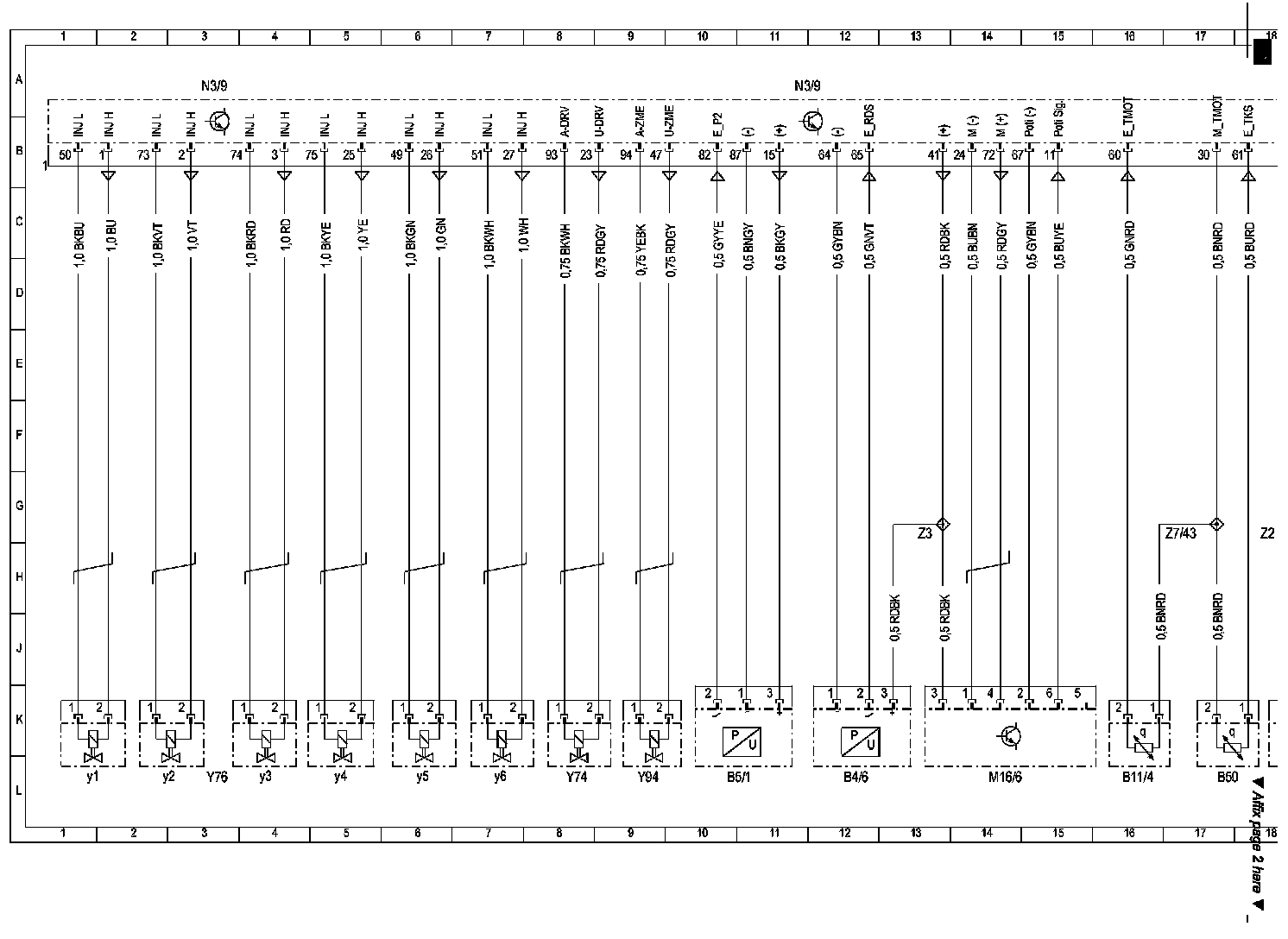

Wiring Diagram (Part 1):

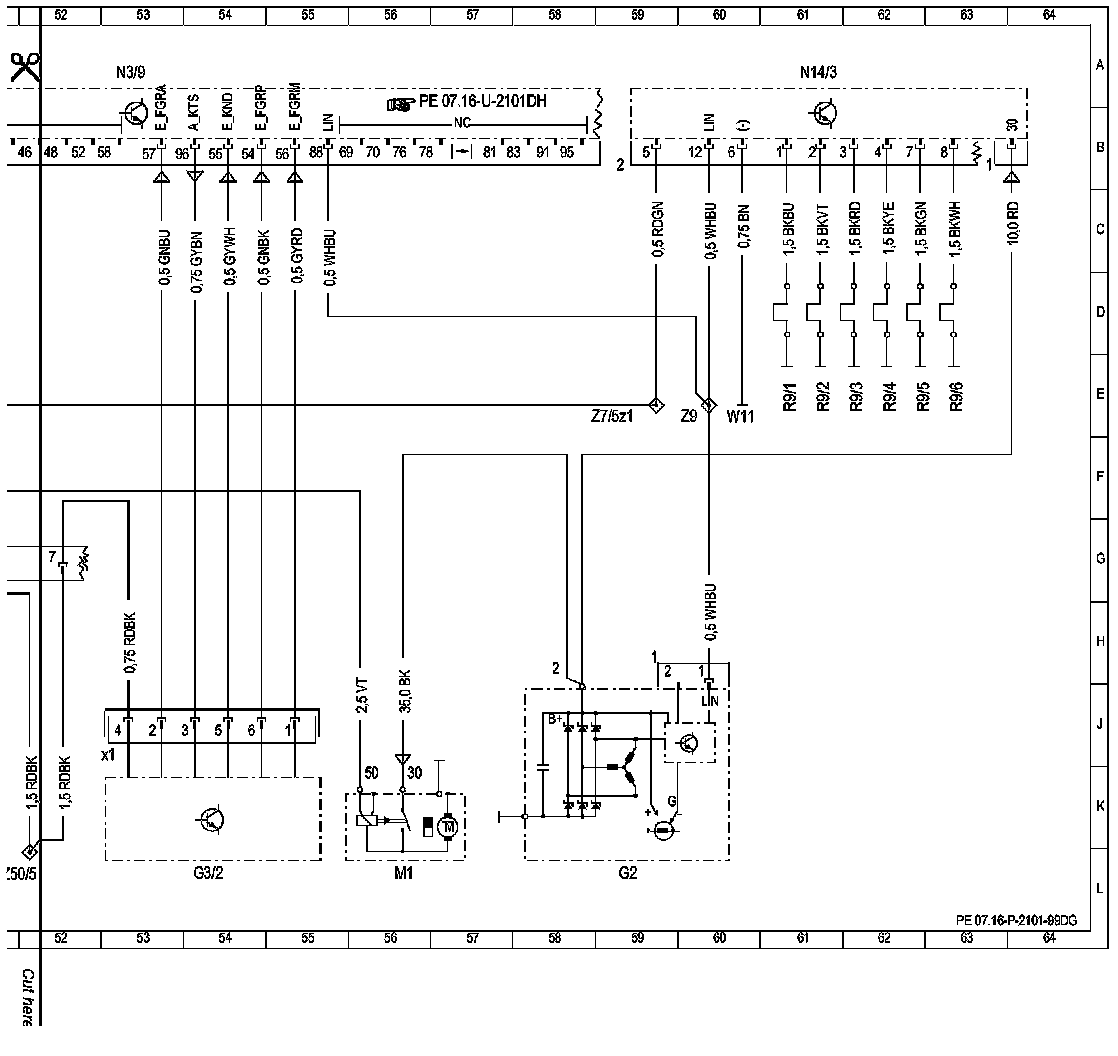

Wiring Diagram (Part 2):

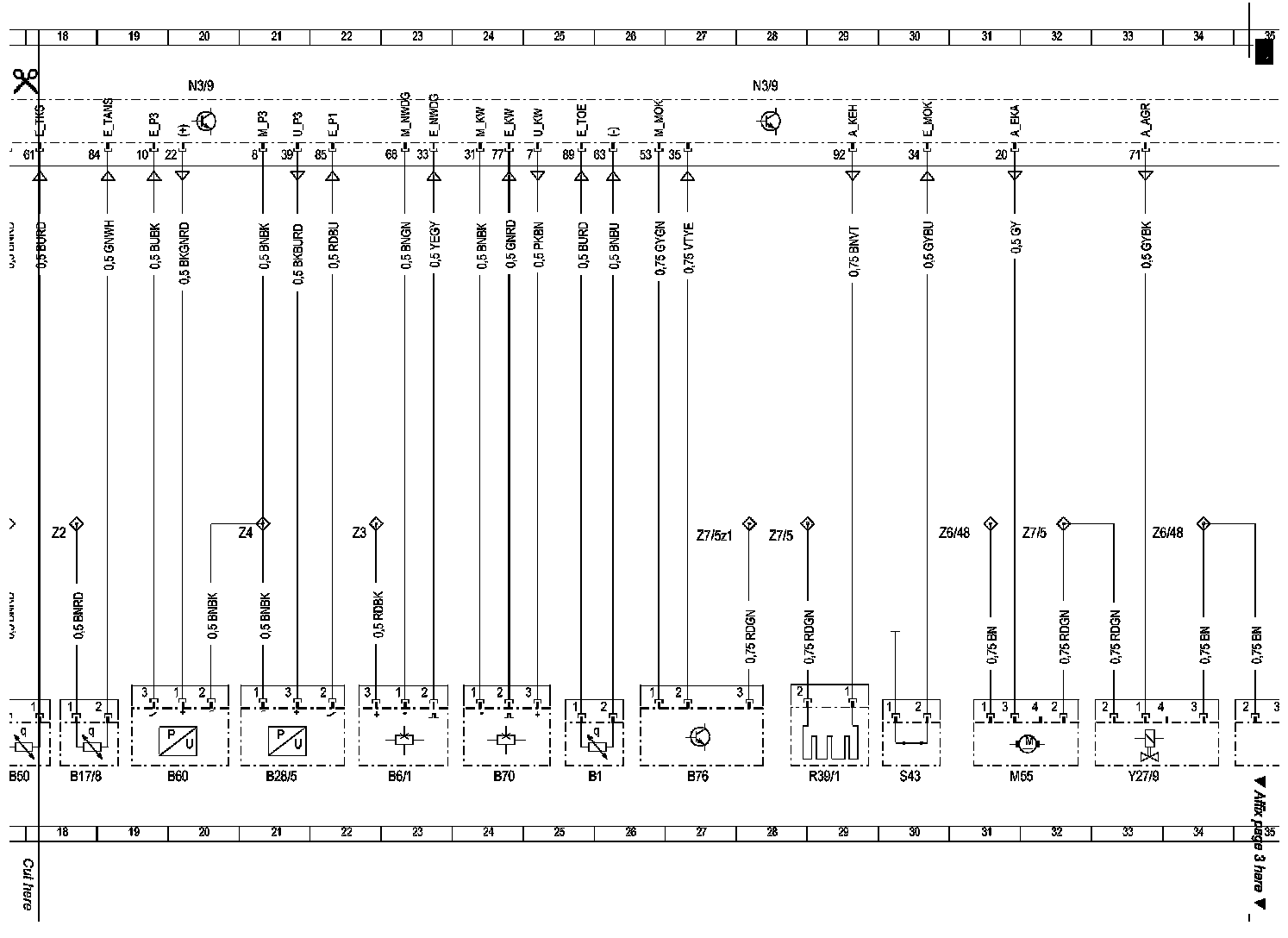

Wiring Diagram (Part 3):

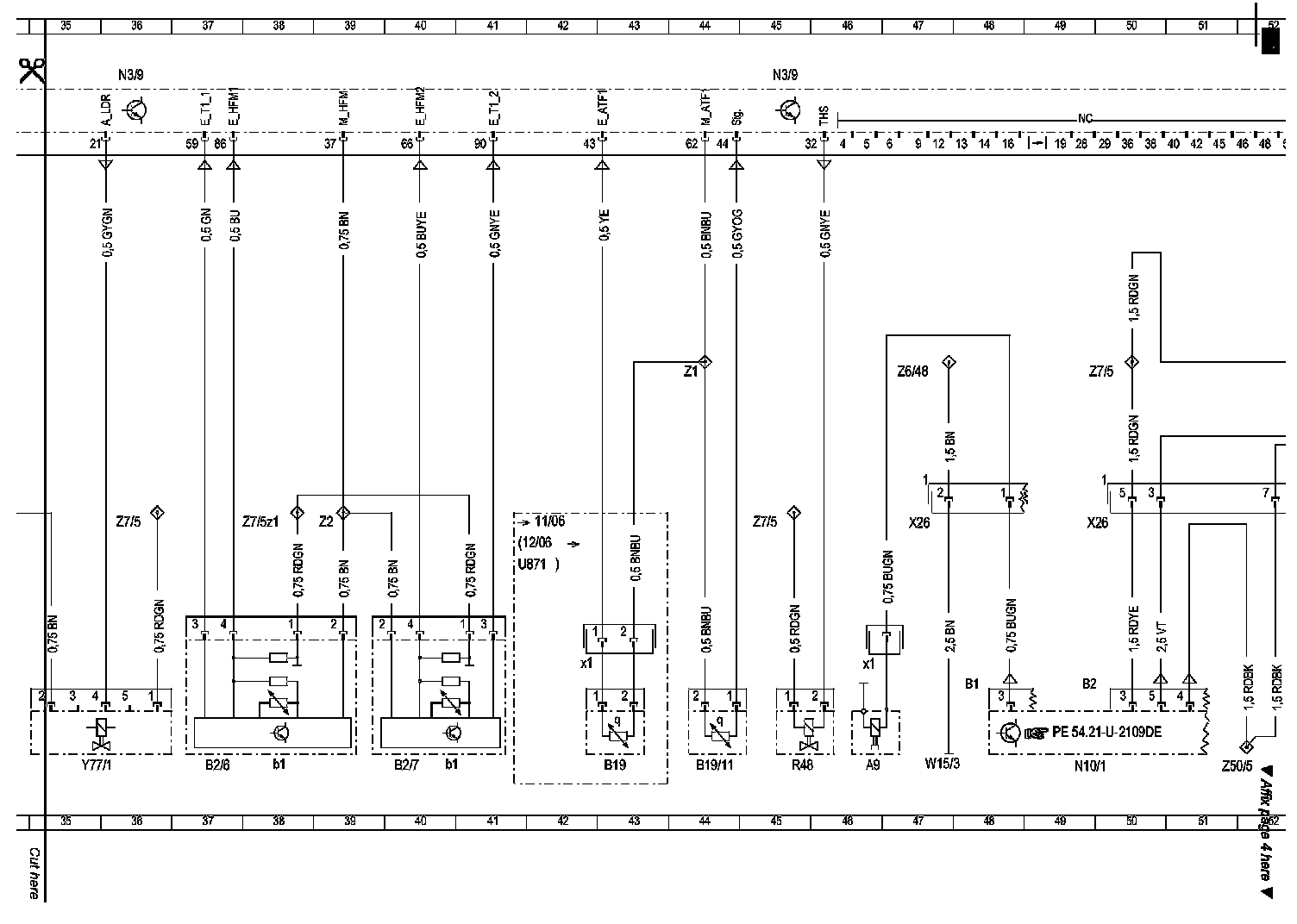

Wiring Diagram (Part 4):

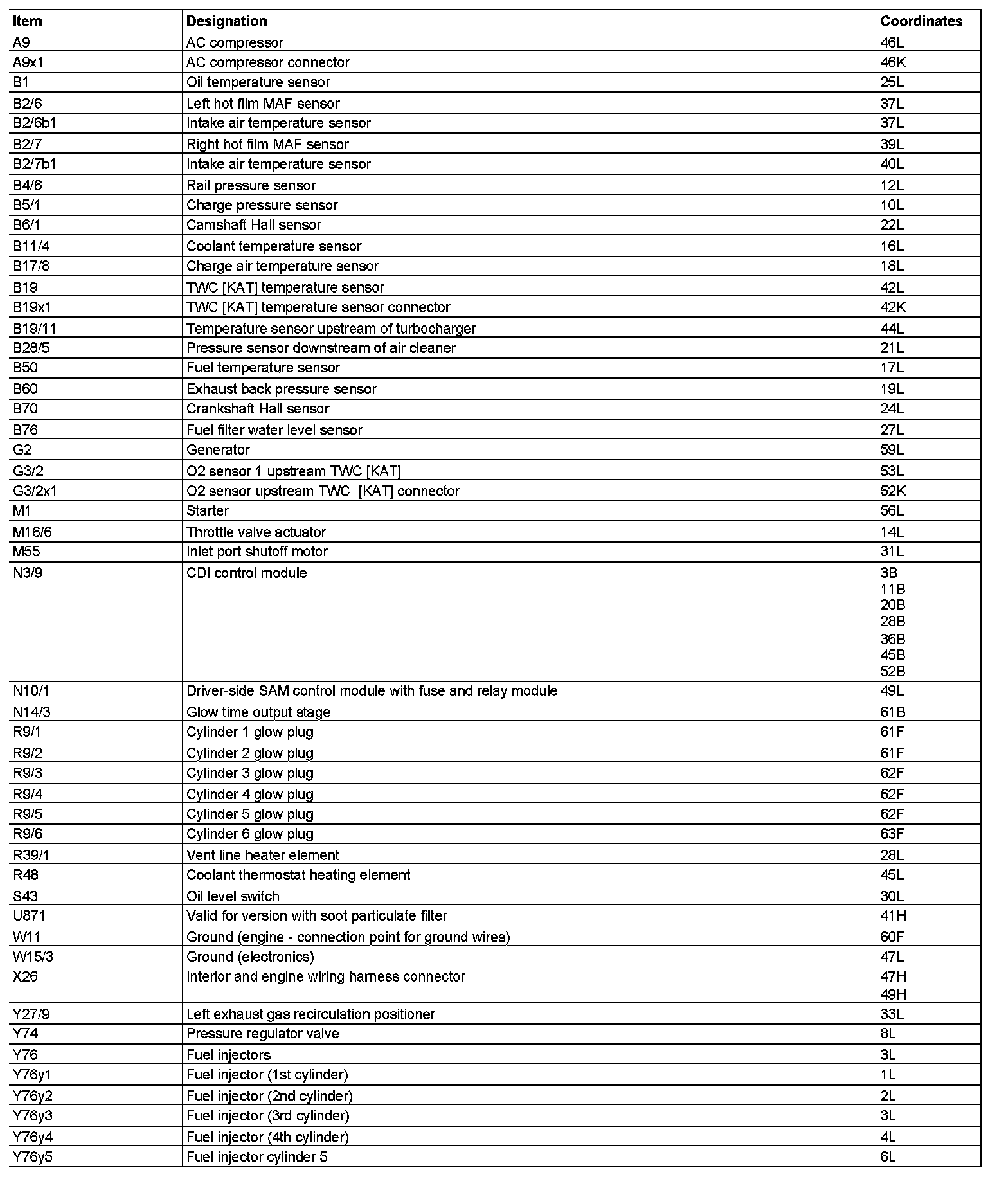

Component Description/Coordinates, A9 To Y76y5:

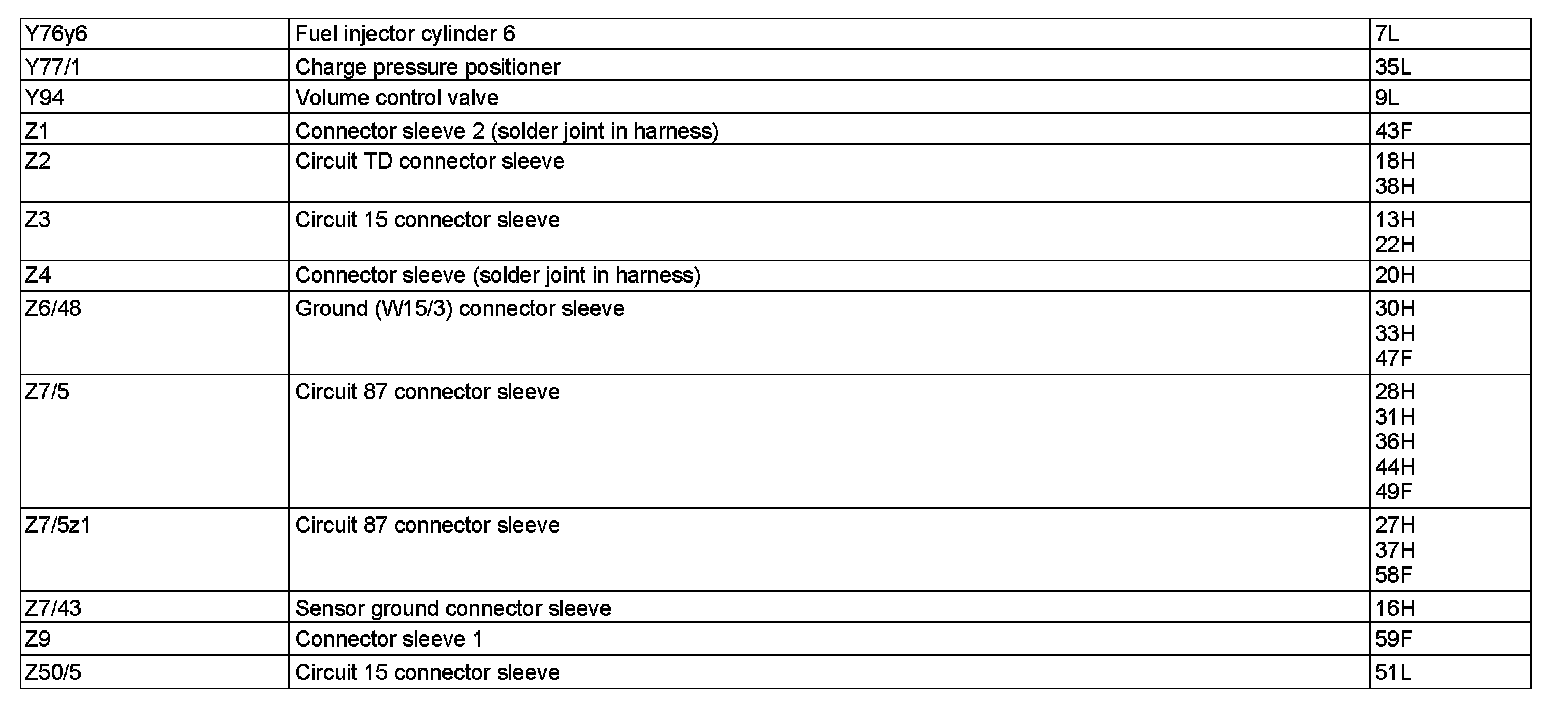

Component Description/Coordinates, Y76y6 To Z50/5:
