Block Diagram of Instrument Cluster (IC) PE54.30-P-2002DC

Block Diagram Of Instrument Cluster (IC) PE54.30-P-2002DC
- with CODE (Z04) light armoring

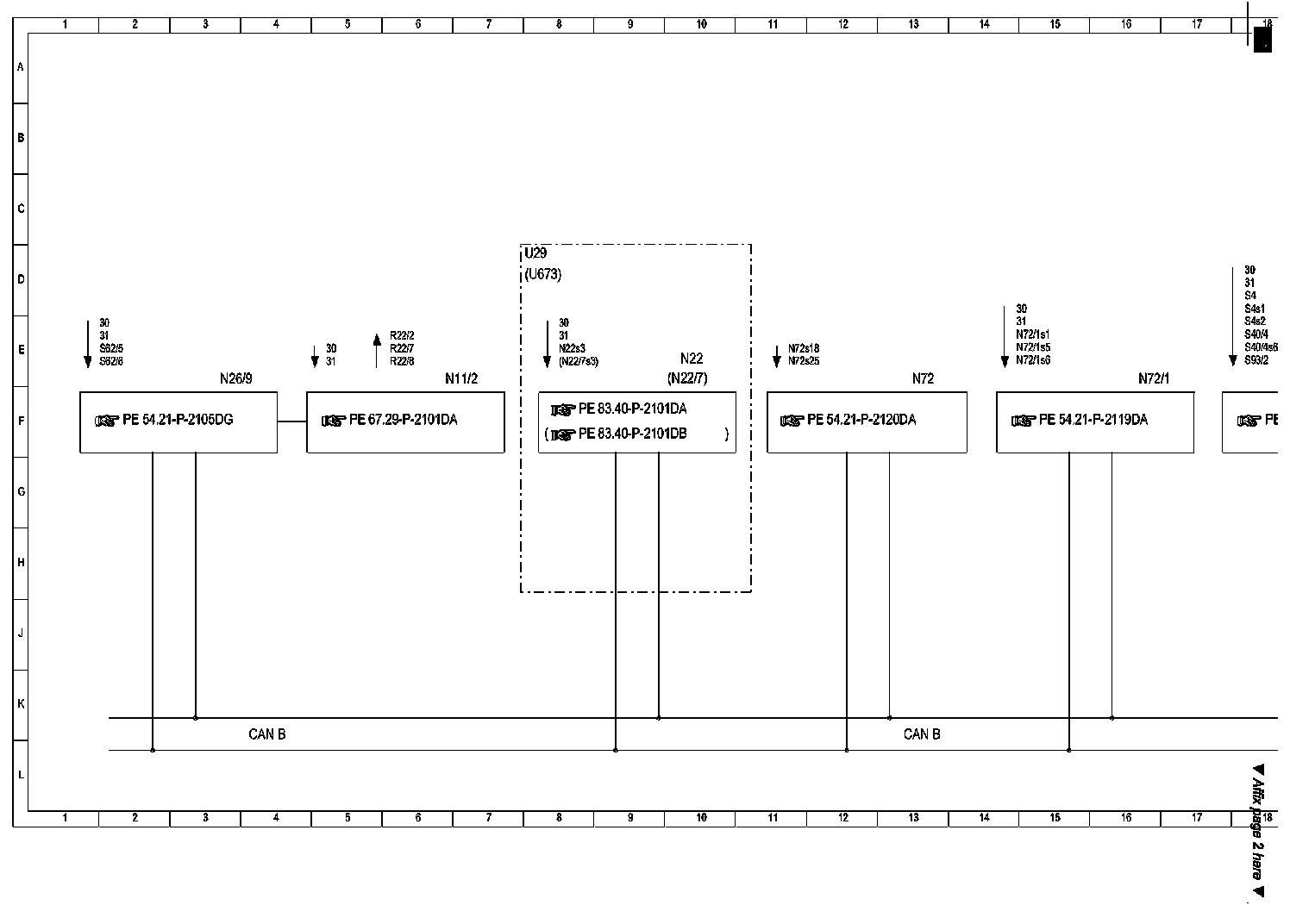

Wiring Diagram (Part 1):

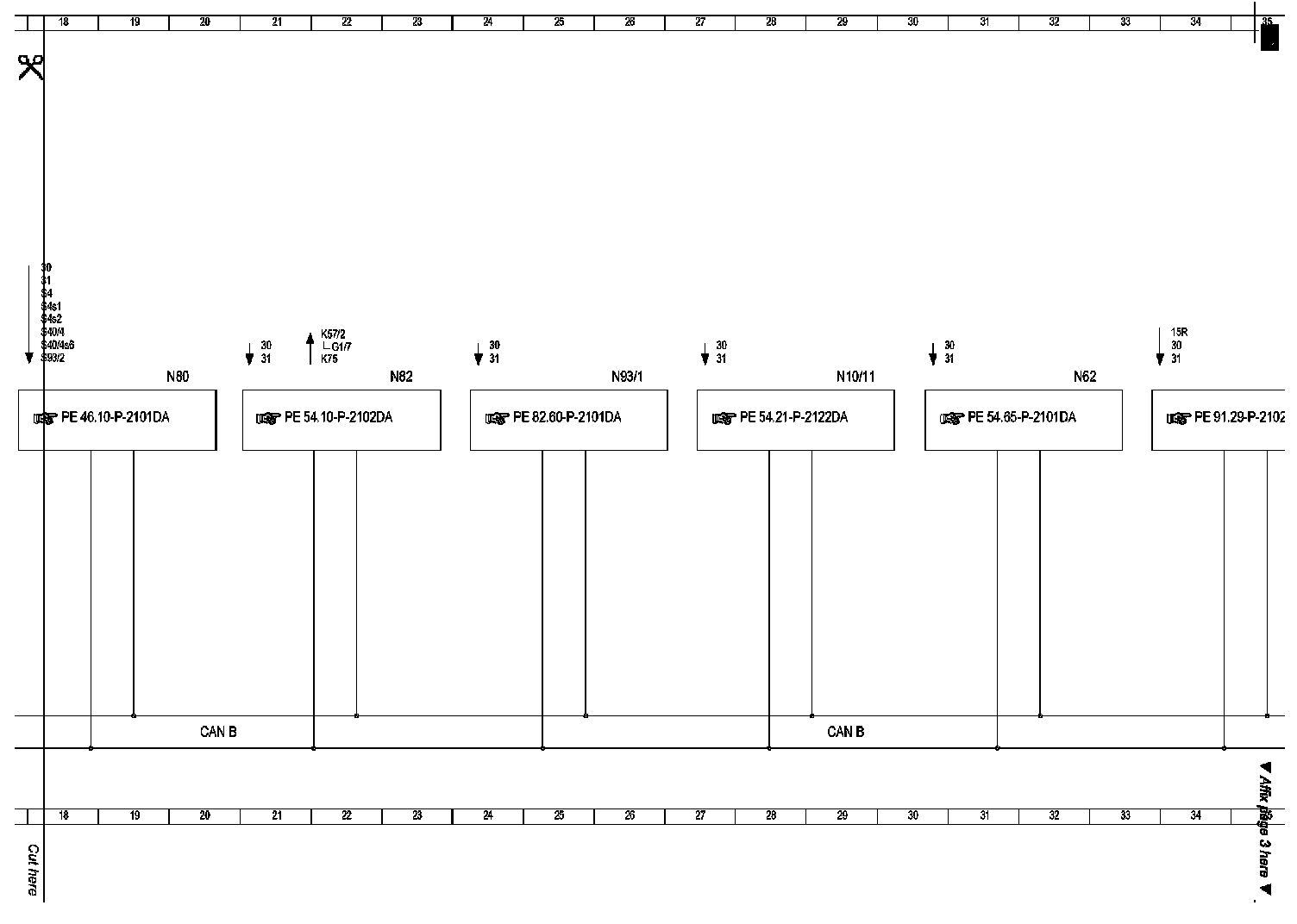

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

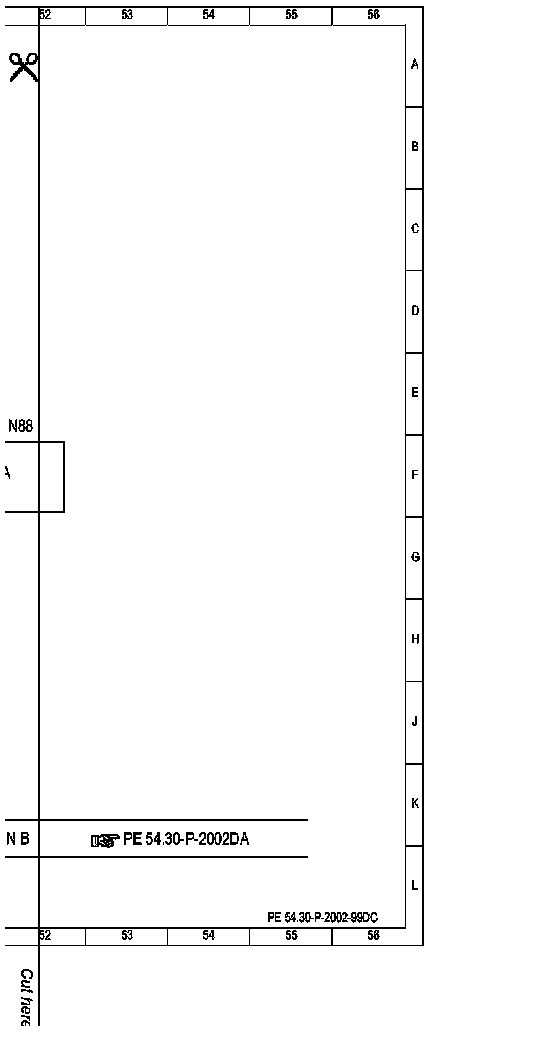

Wiring Diagram (Part 4):

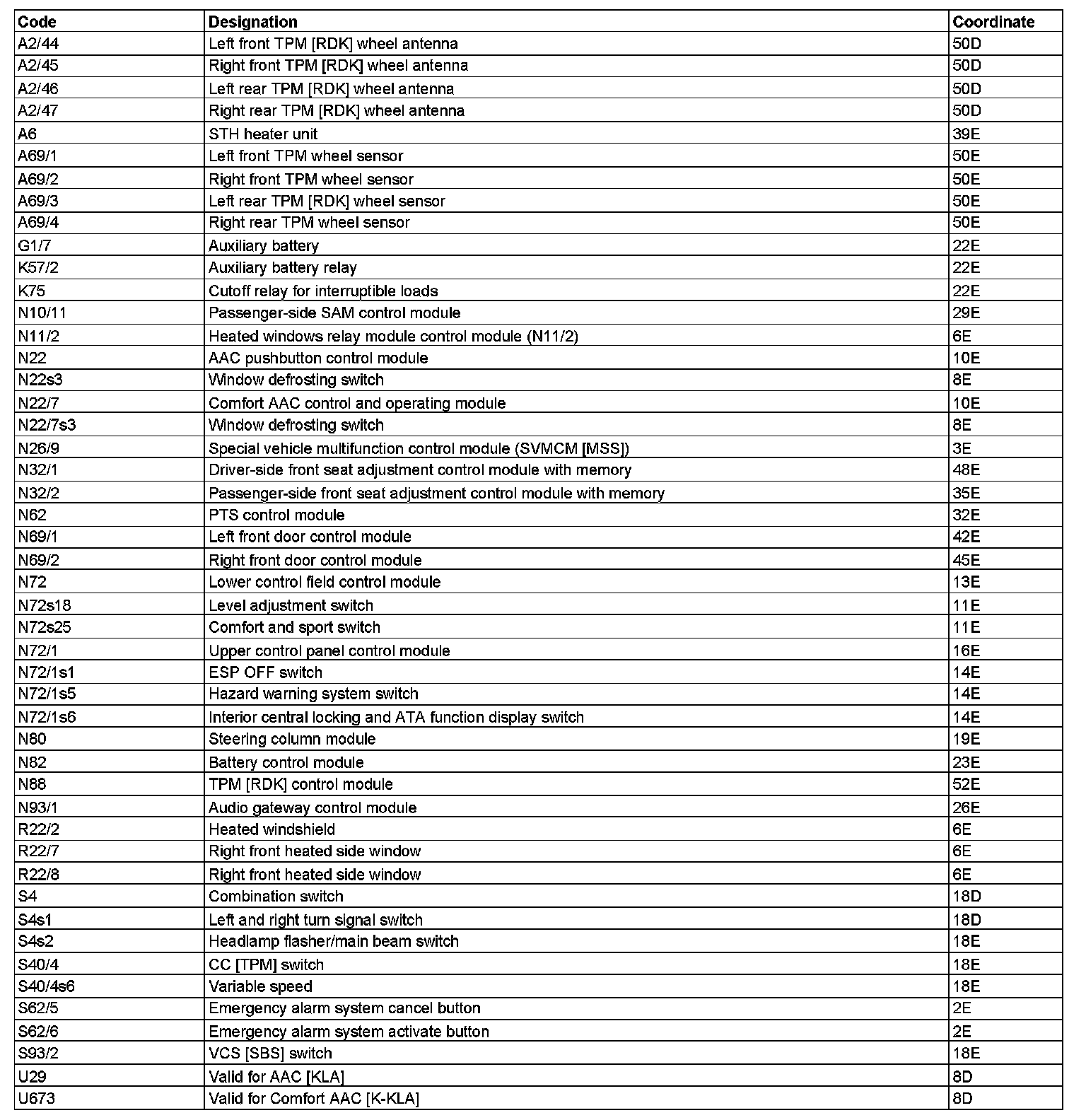

Component Description/Coordinates, A2/44 To U673:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
