Function Schematic For Anti-Theft Alarm (ATA) System PE80.50-U-2050DA

Function Schematic For Anti-theft Alarm (ATA) Electrical System PE80.50-U-2050DA

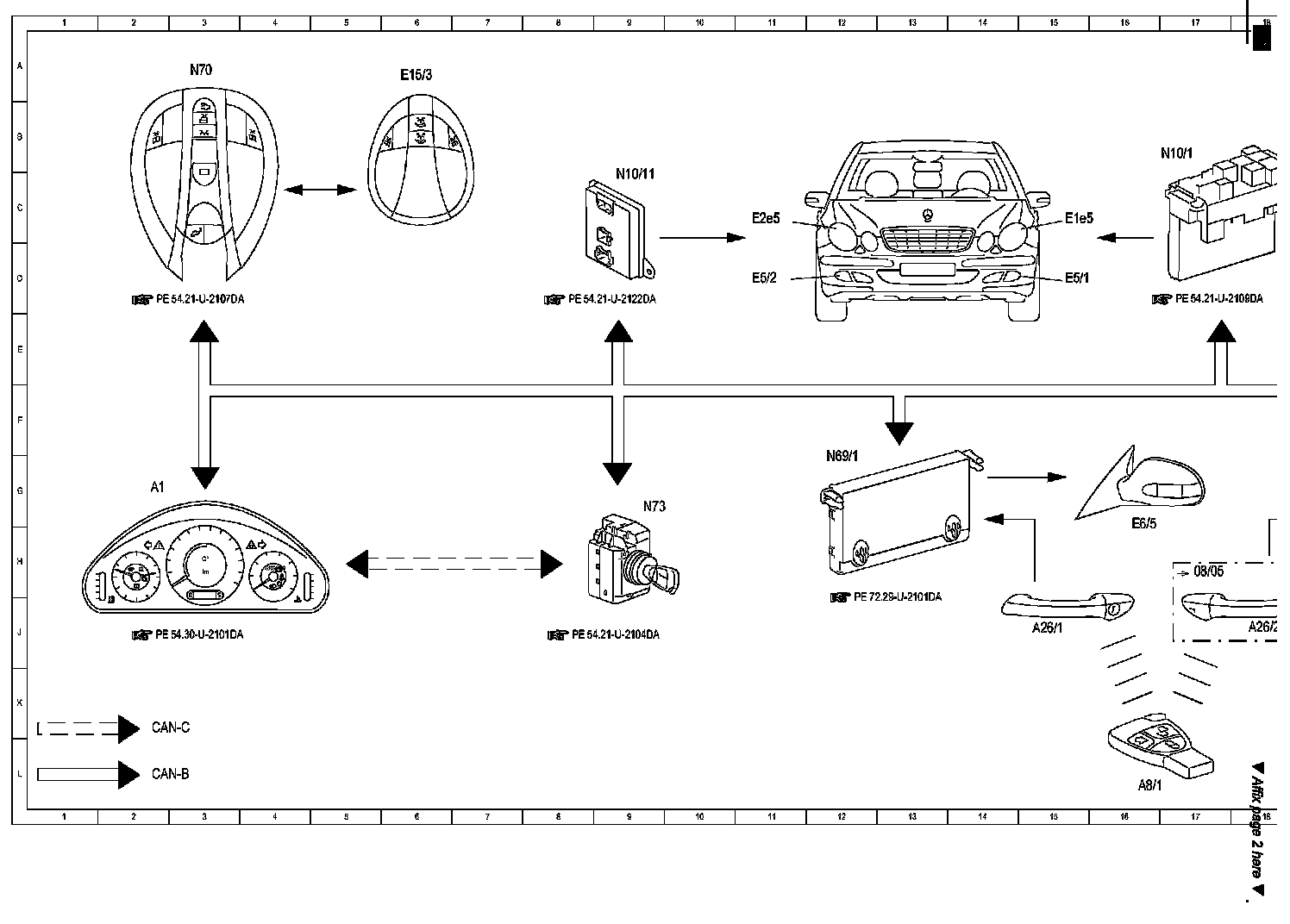

Function Diagram (Part 1):

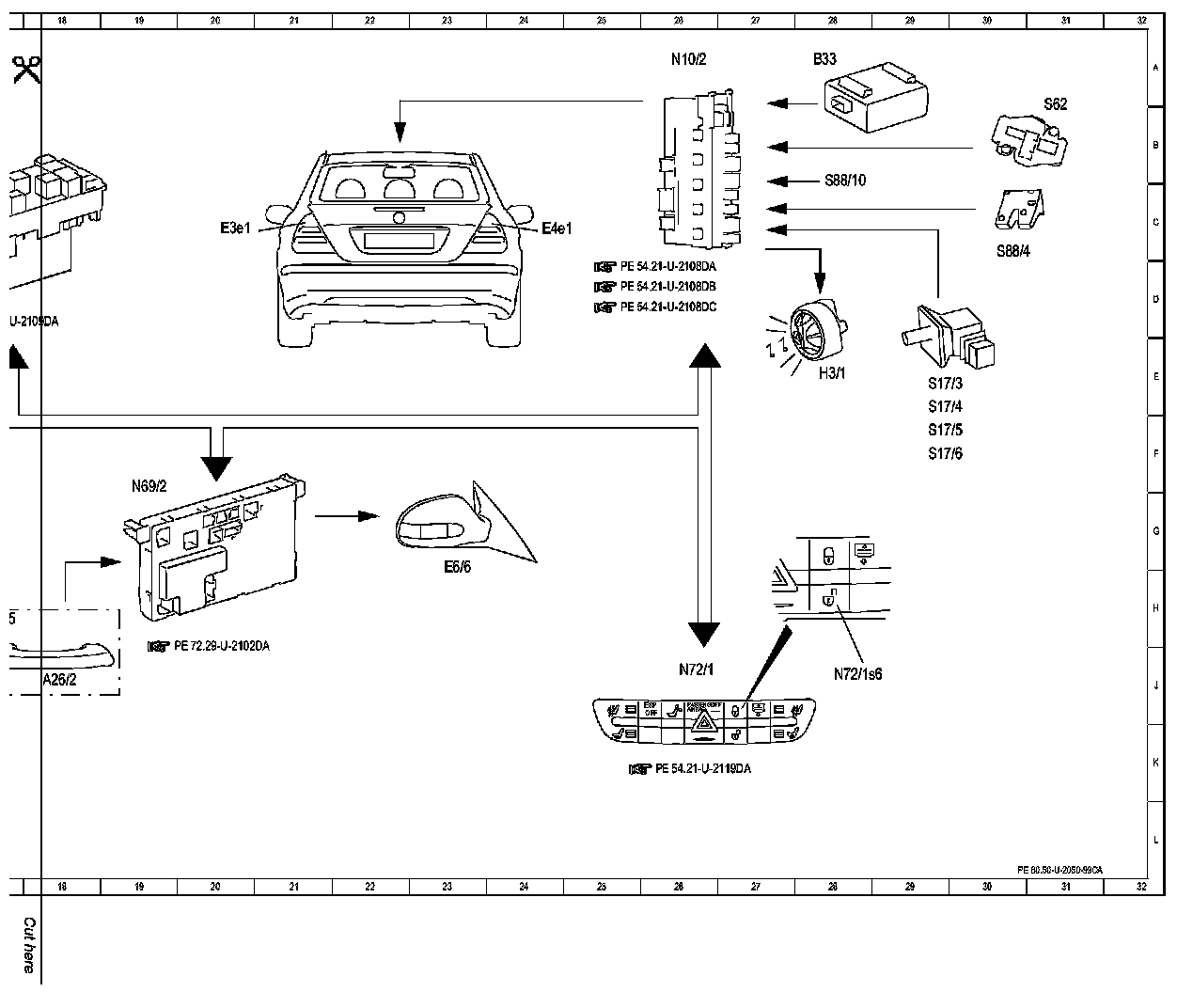

Function Diagram (Part 2):

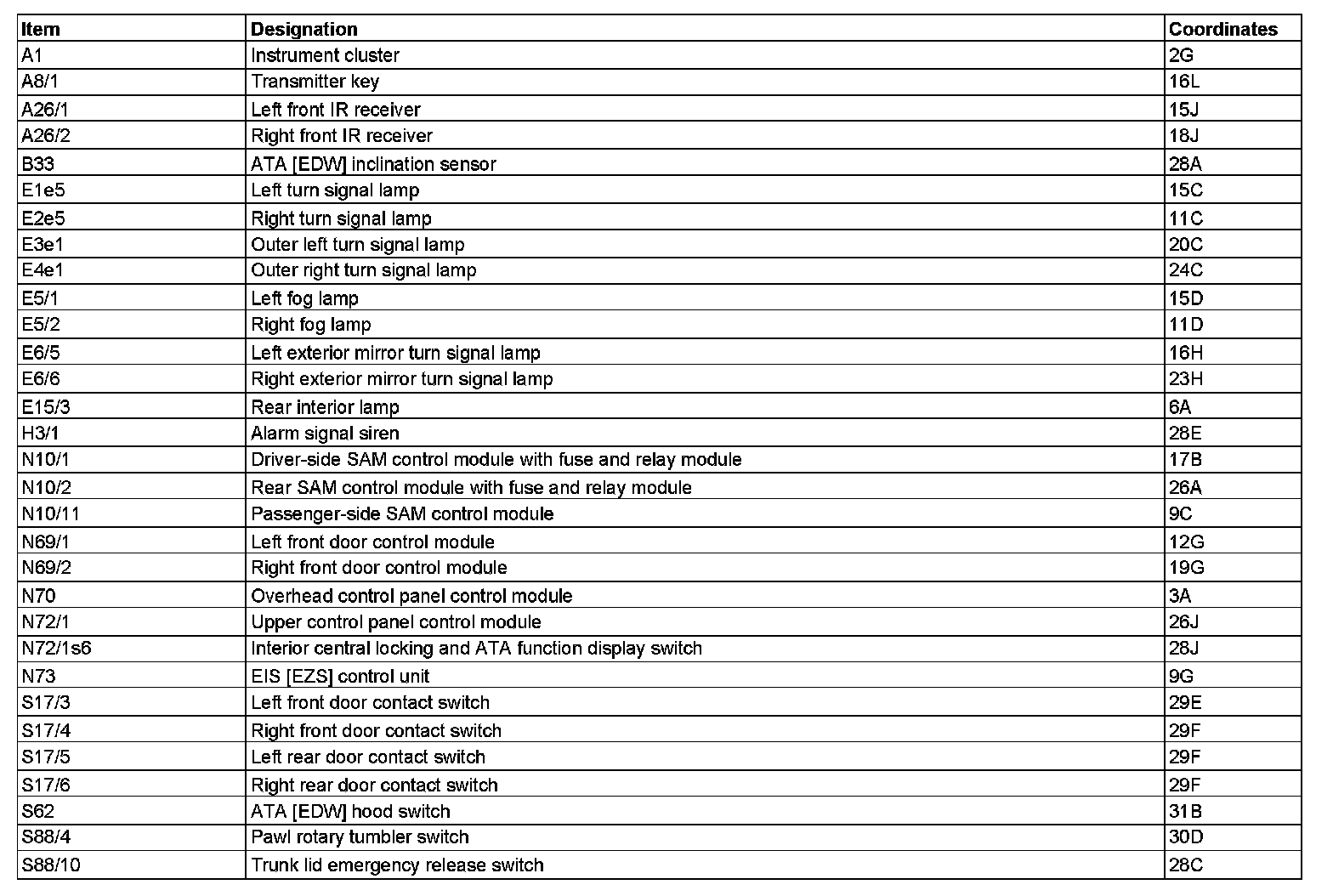

Component Description/Coordinates, A1 To S88/10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
