Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Brakes and Traction Control >> Power Brake Assist >> Vacuum Brake Booster >> Testing and Inspection >> AR43.10-P-0325T Check Brake Booster

AR43.10-P-0325T Check Brake Booster

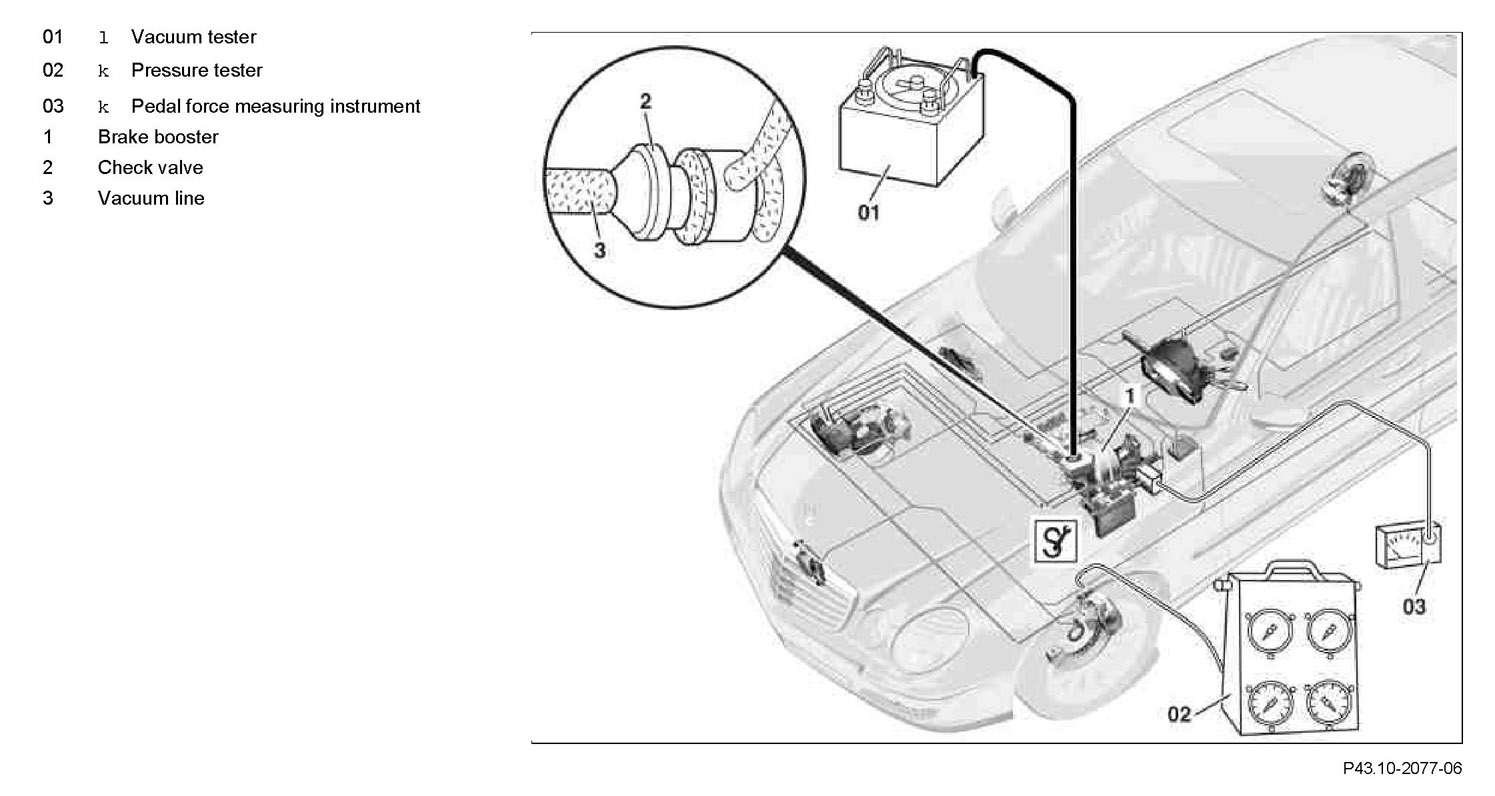

AR43.10-P-0325T Checking Brake Booster
- with Adaptive Brake (ABR)

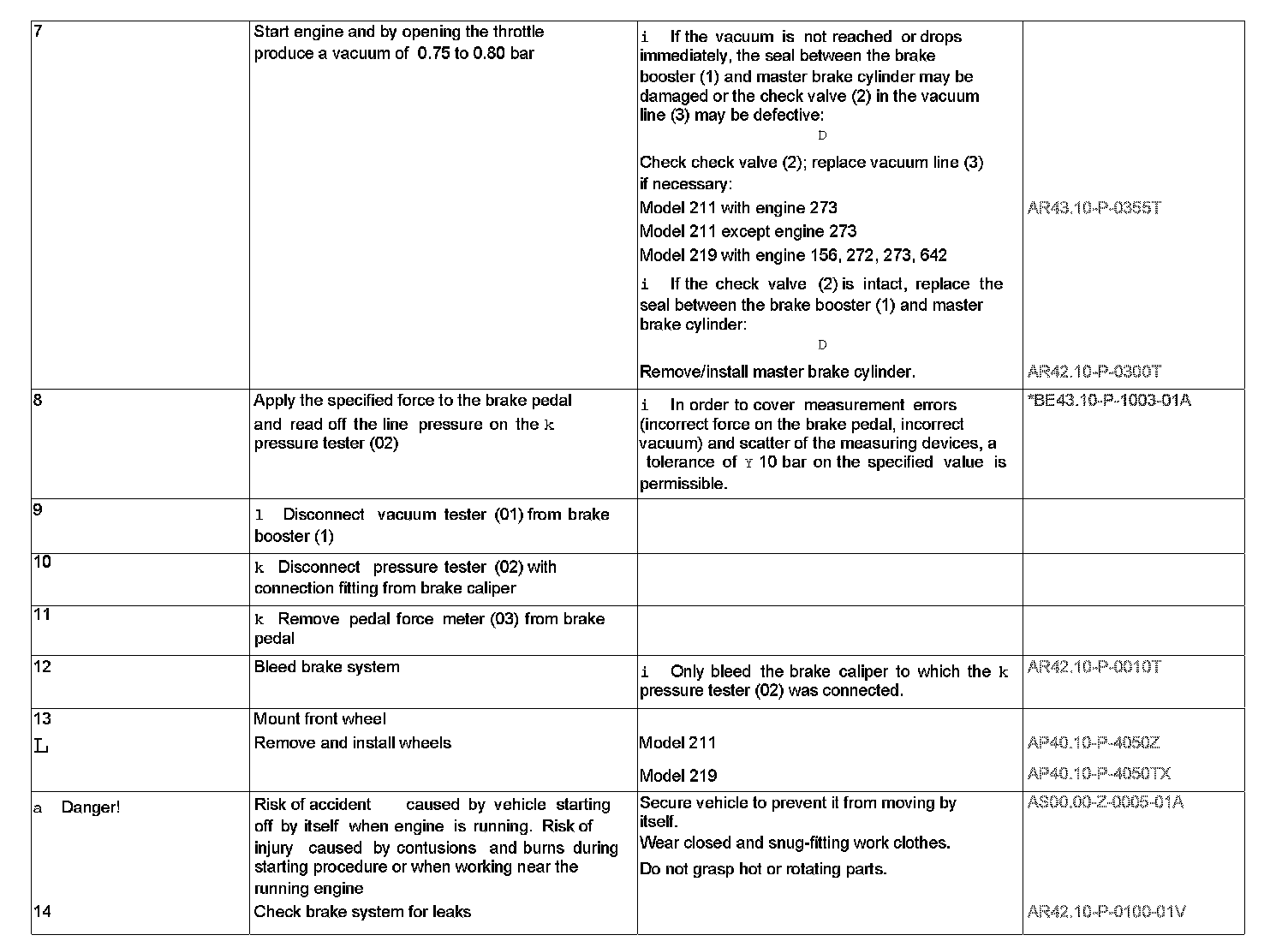

Steps 1 - 6:




Steps 1 - 14:

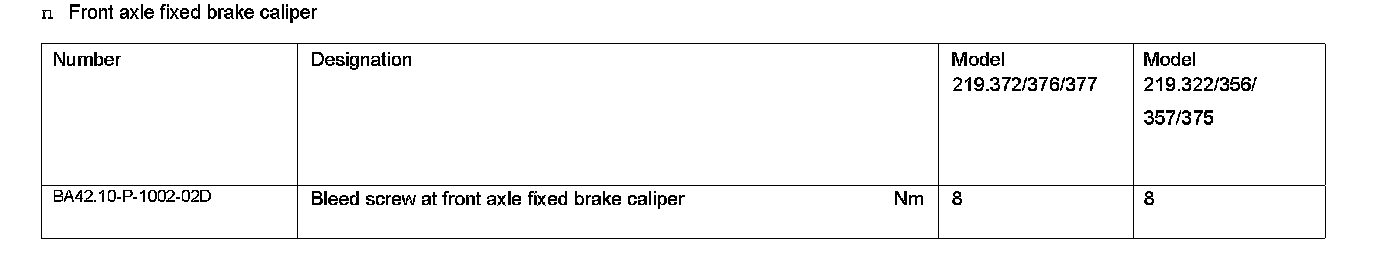

Front Axle Fixed Brake Caliper:




Front Axle Fixed Brake Caliper:

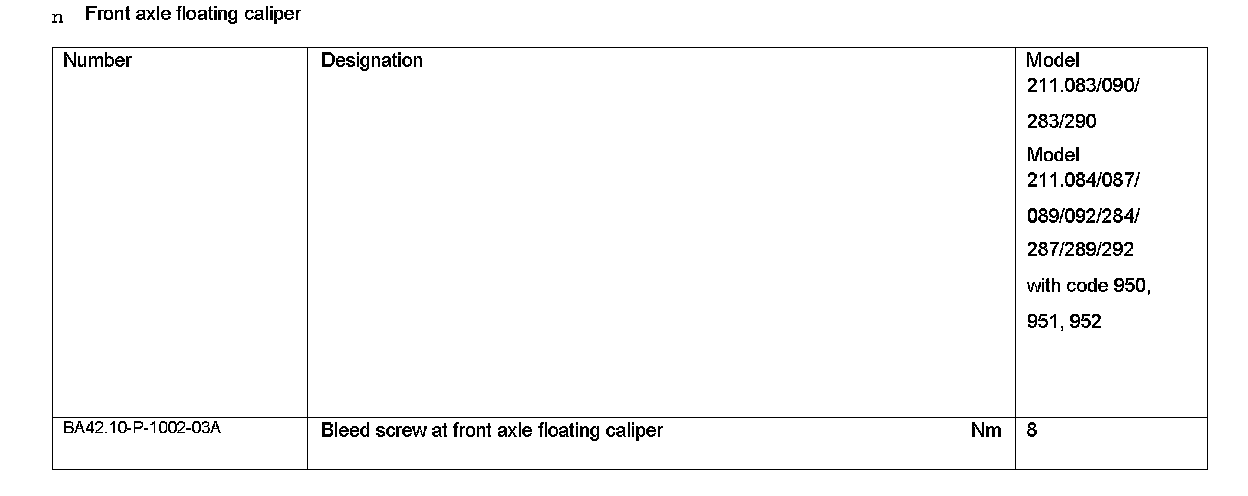

Front Axle Floating Caliper:

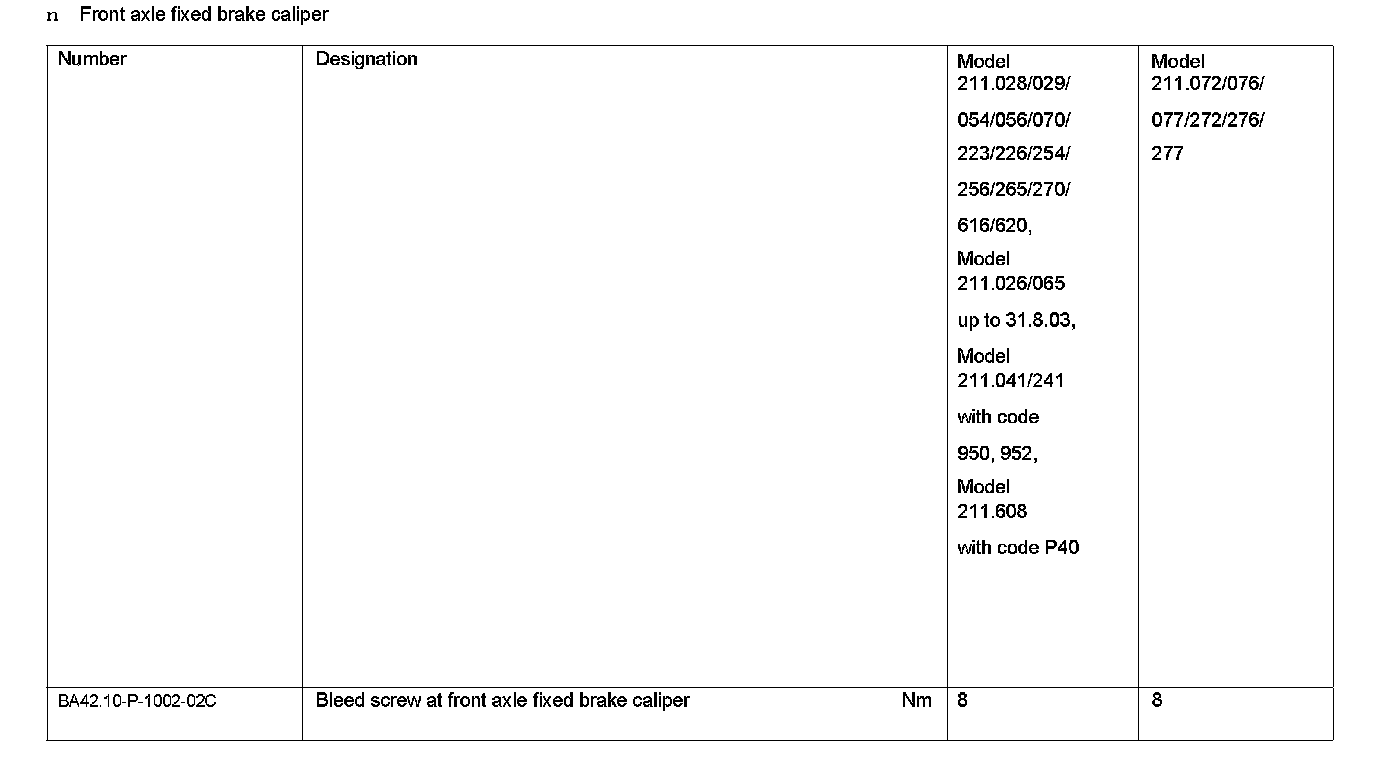

Front Axle Fixed Brake Caliper:

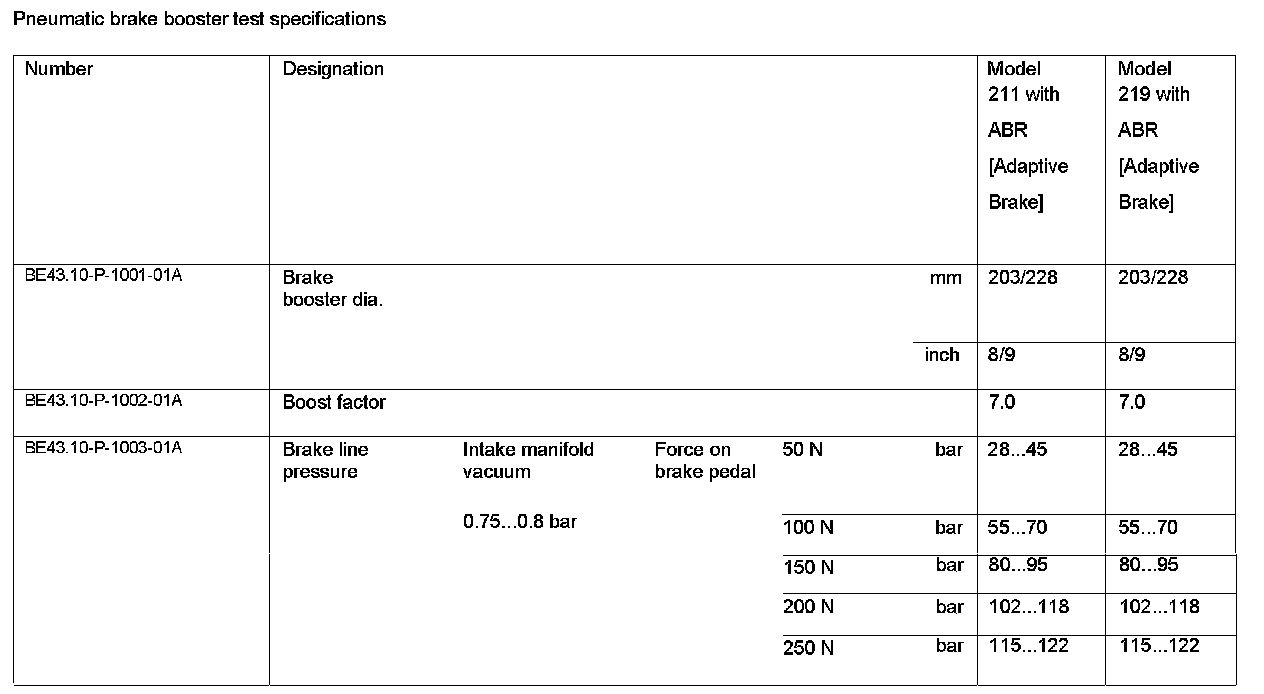

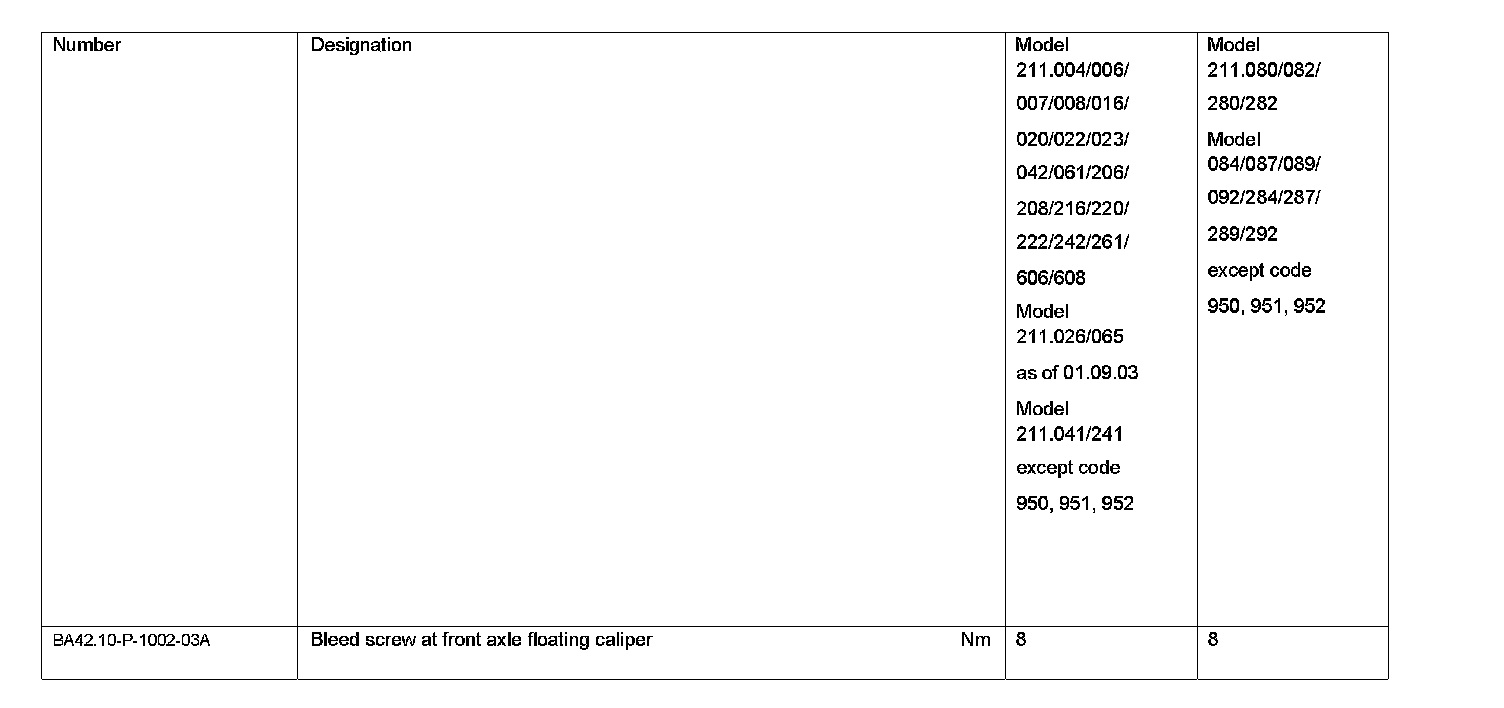

Pneumatic Brake Booster Test Specifications:

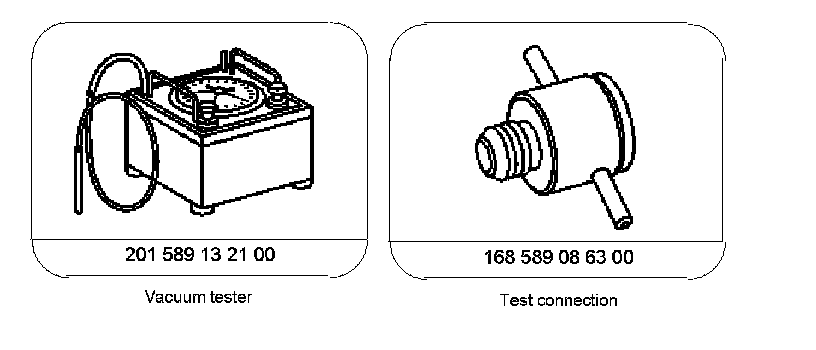

Special Tools:

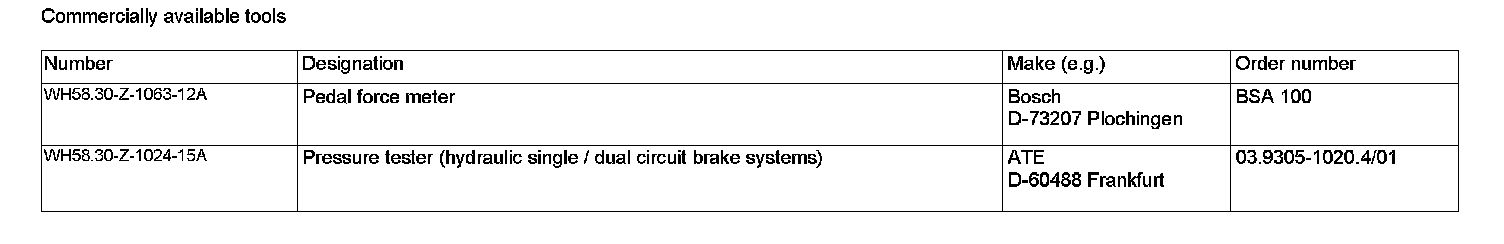

Commercially Available Tools:
