Vacuum Brake Booster Check Valve: Testing and Inspection
AR43.10-P-0023T Checking Check Valve
- with Adaptive Brake (ABR)

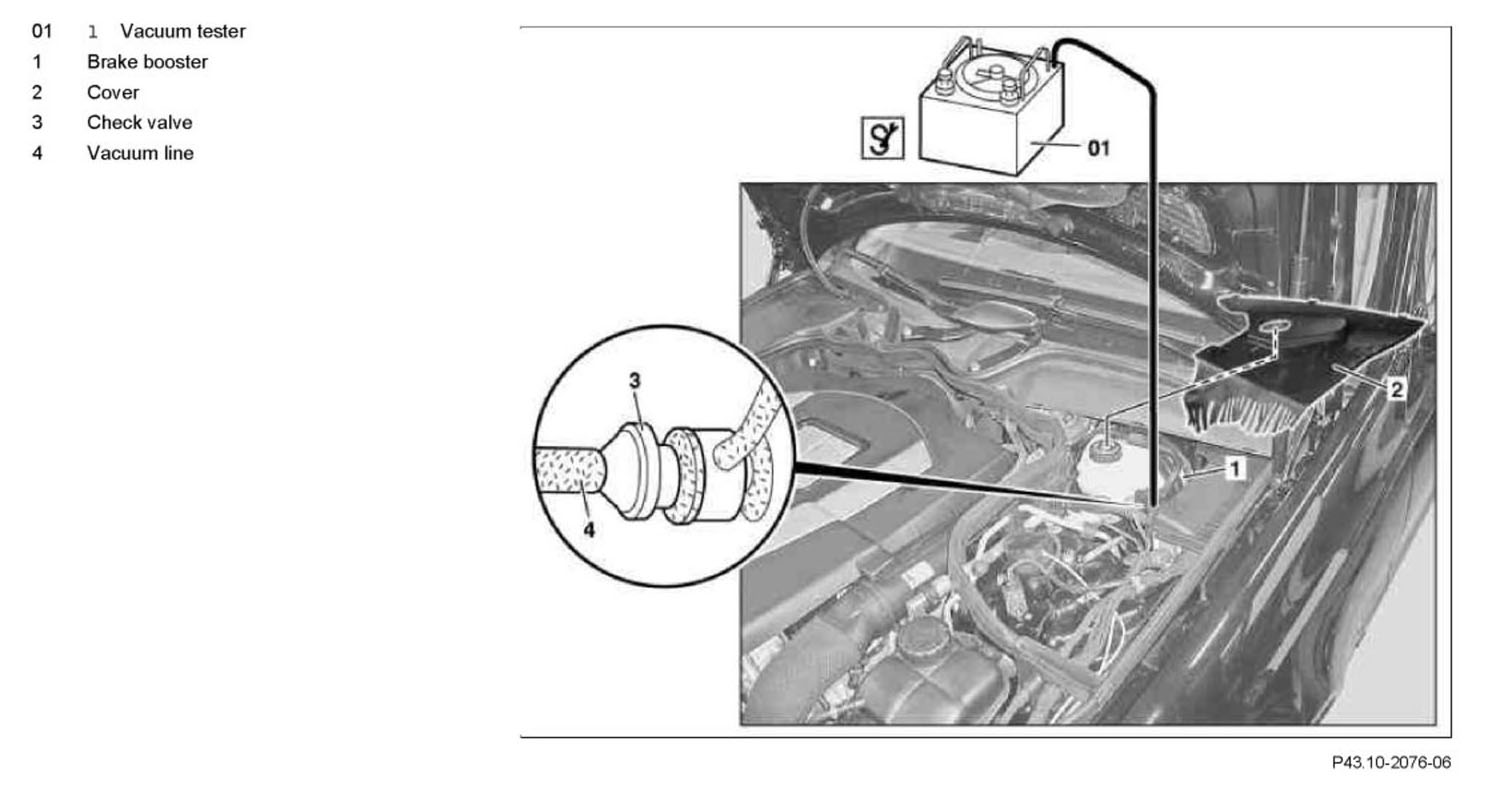

Component Identification:

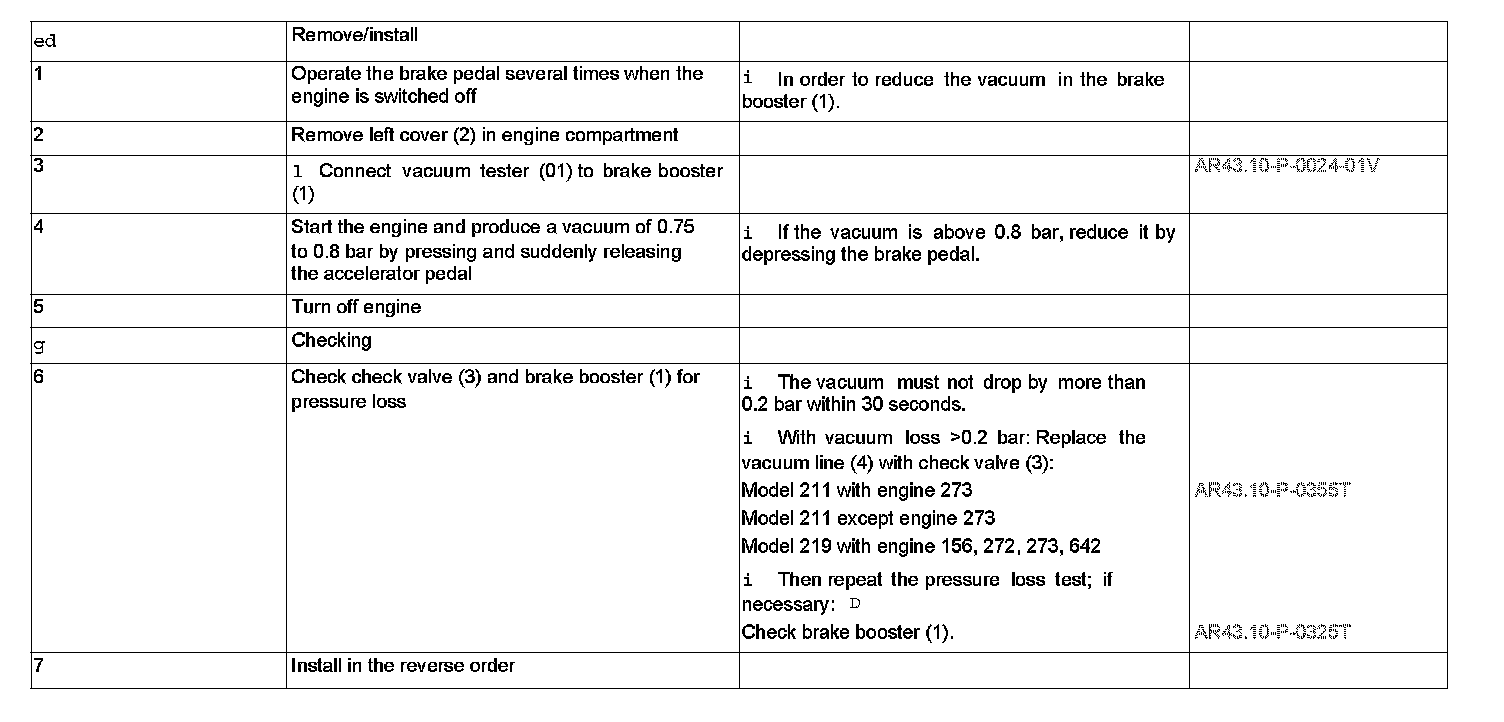

Steps 1 - 7:
