AR42.20-P-0520-01A Pre-Tension Automatic Cable Slack Adjuster

AR42.20-P-0520-01A Pre-tension automatic cable slack adjuster

Component Identification:

1 Model 140: Detach exhaust system (only as far as necessary).

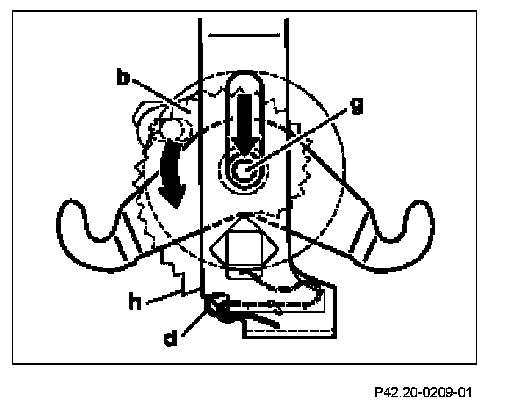

2 Turn detent eccentric bolt (g) to the left using the Allen wrench (approximately half a turn) and simultaneously push backwards in slot until the spring-loaded detent eccentric (b) engages with the raised section (h) in the holddown clip (d).
