AR42.10-P-0300T Remove/Install Master Brake Cylinder



AR42.10-P-0300T Remove/Install Master Brake Cylinder
- with Adaptive Brake (ABR)

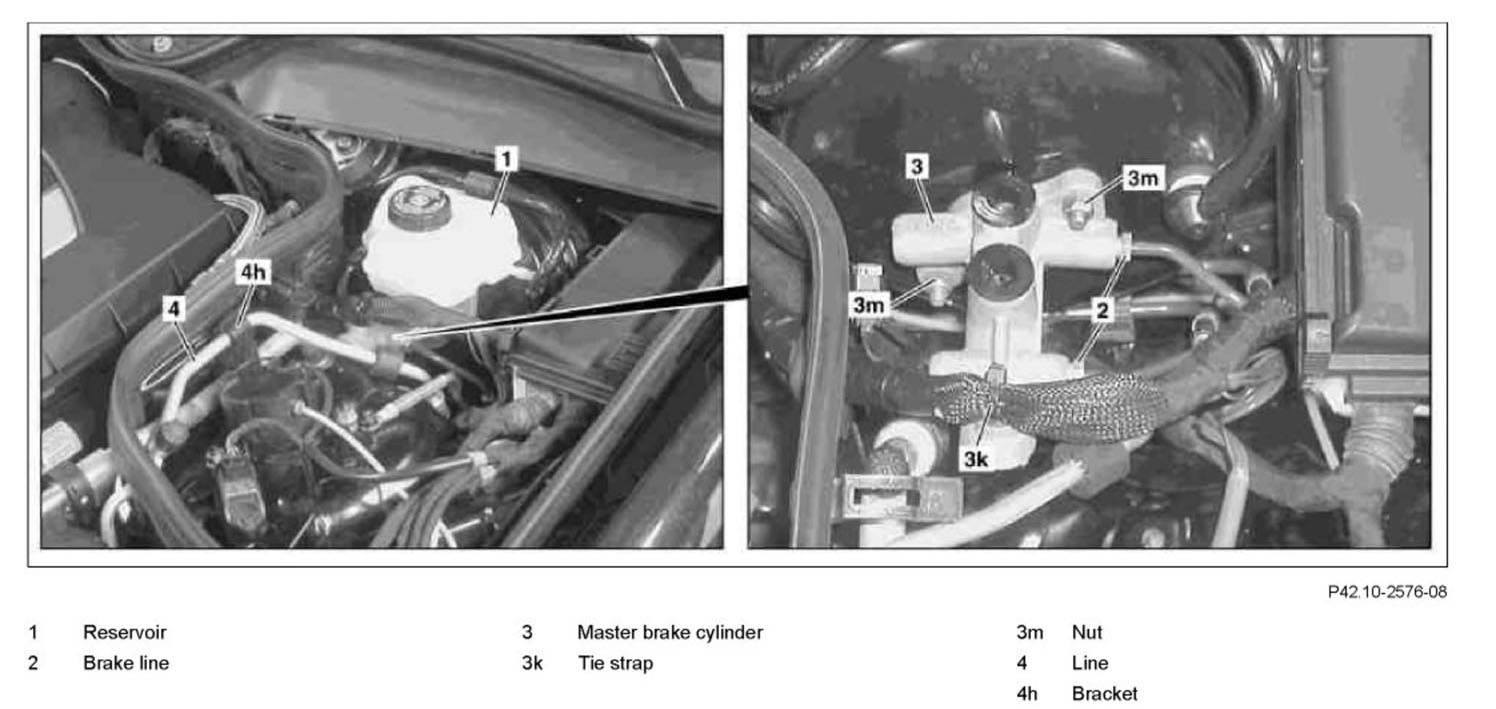

Component Identification:




Component Identification:

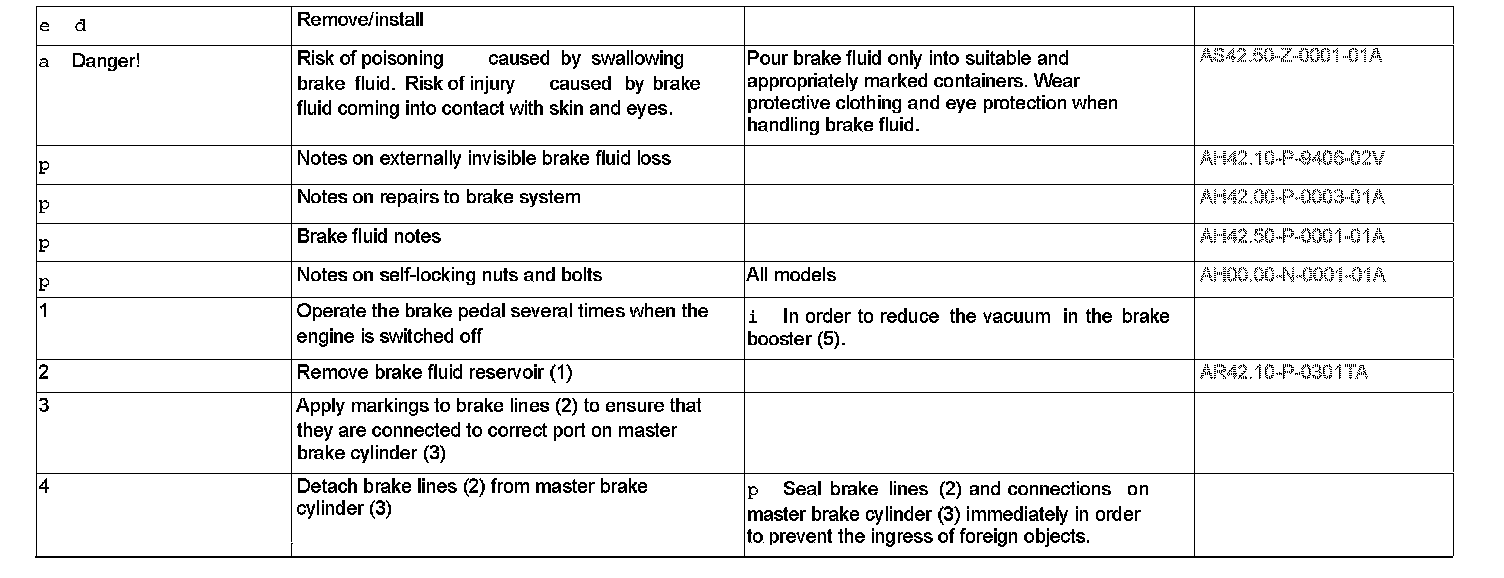

Steps 1 - 4:




Steps 5 - 10:

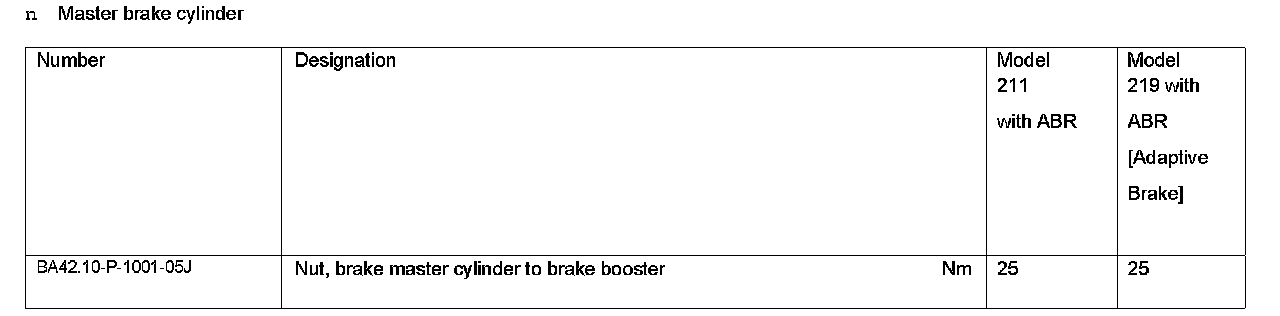

Master Brake Cylinder:

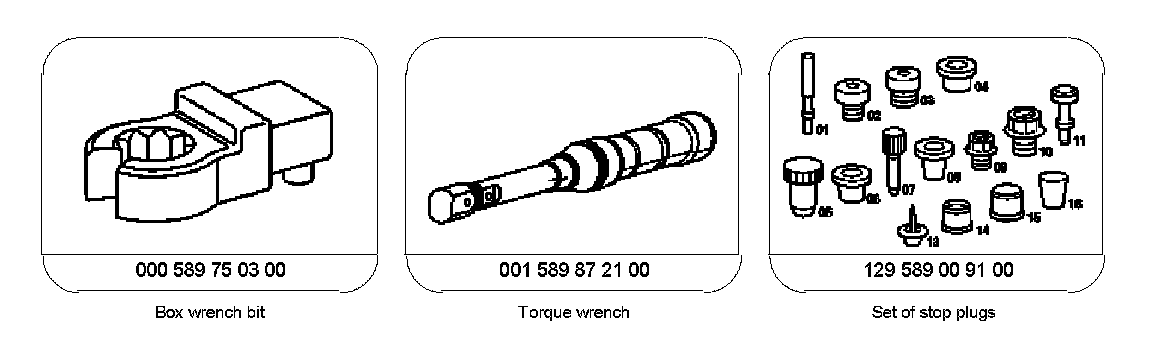

Special Tools:
