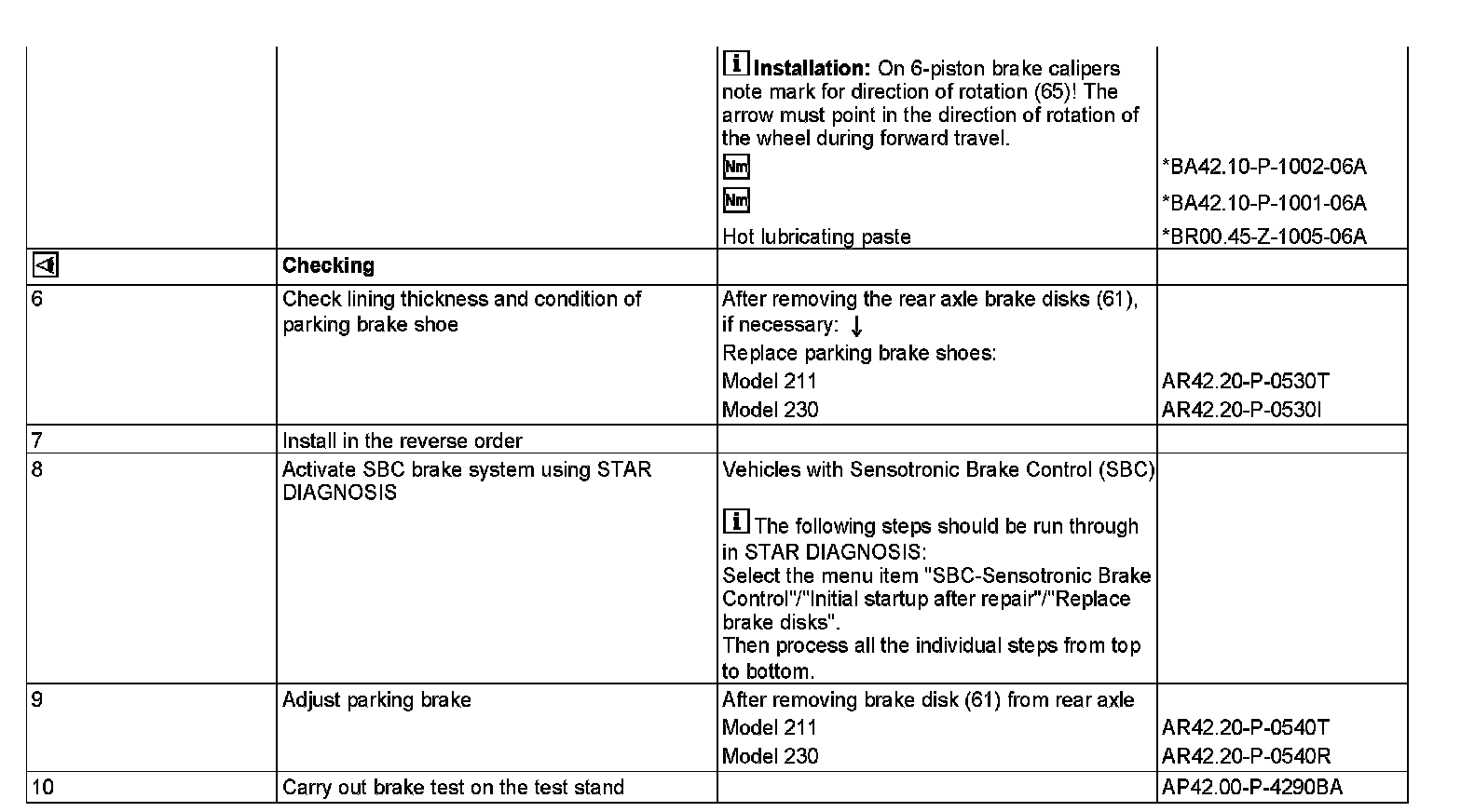

AR42.10-P-0220R Remove/Install Brake Disc




AR42.10-P-0220R Remove/Install Brake Disc
MODEL 211, 230

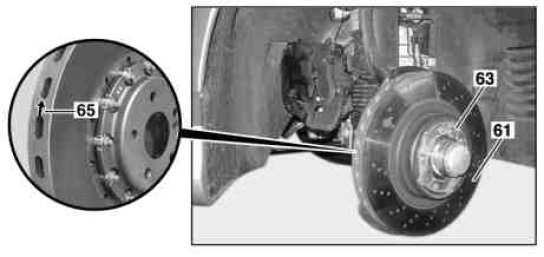

61 Brake disk
63 Security bolt
65 Mark for direction of rotation
