Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Service and Repair >> AR88.50-P-5075T Remove/Install Remote Trunk Closing Button

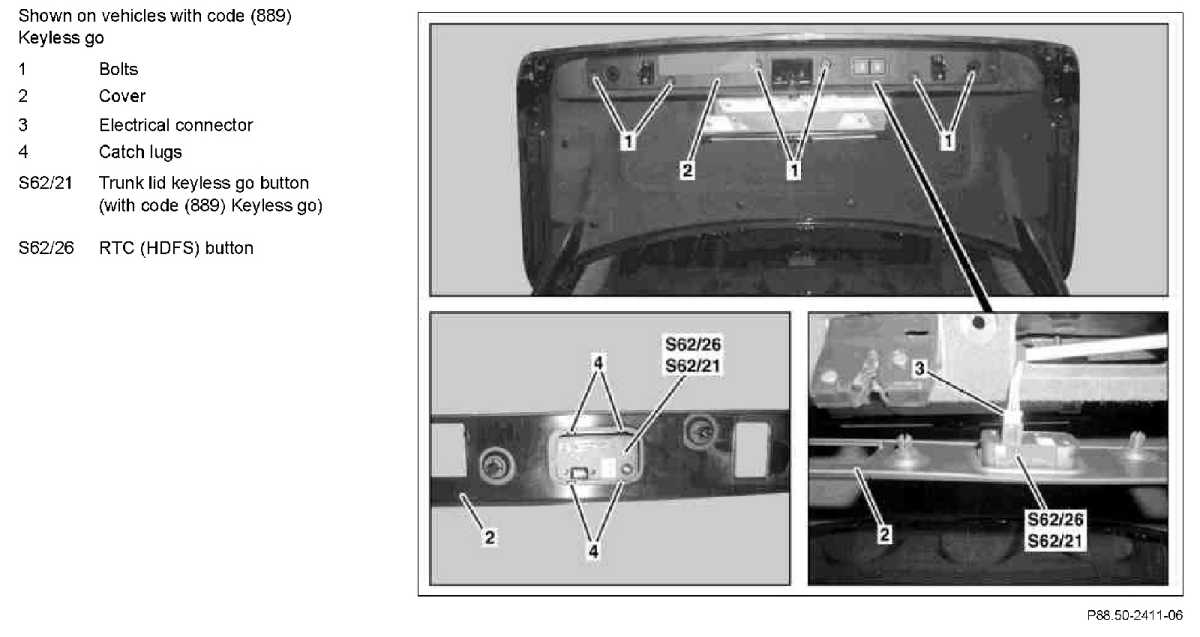

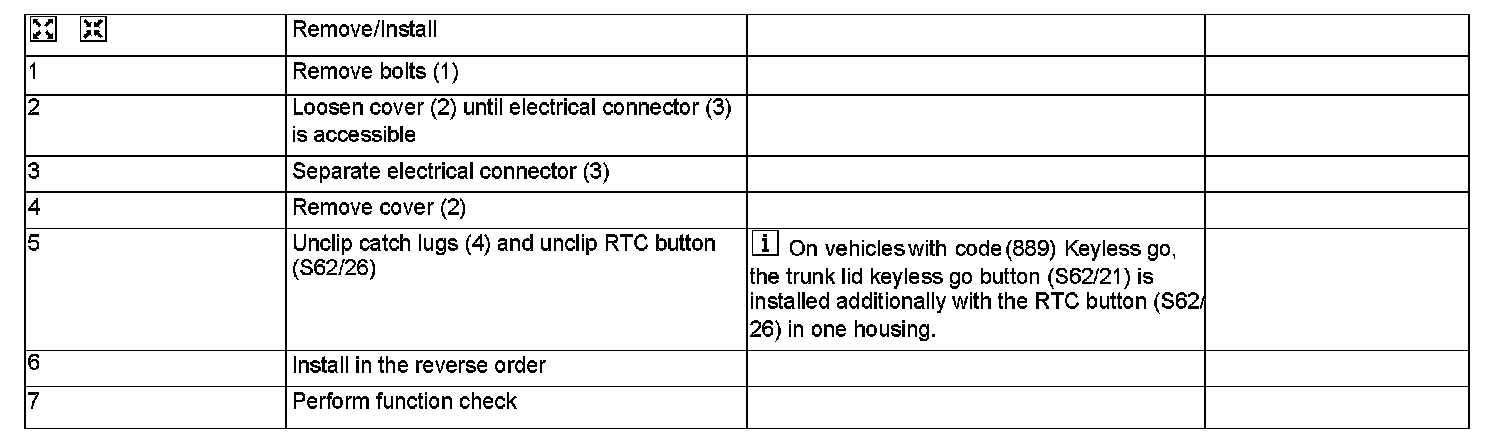

AR88.50-P-5075T Remove/Install Remote Trunk Closing Button



AR88.50-P-5075T Remove/Install Remote Trunk Closing Button
- with CODE (881b) Remote trunk locking (RTL)

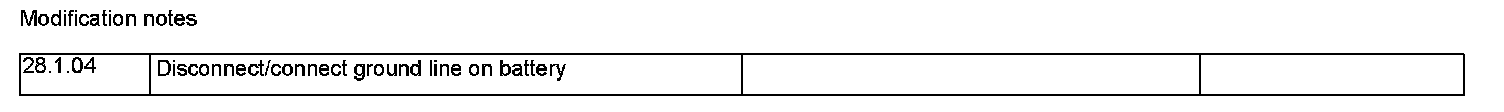

Modification Notes:
