AR91.16-P-0050CW Remove/Install Head Restraint Guide on Front Seat

AR91.16-P-0050CW Remove/Install Head Restraint Guide on Front Seat
MODEL 463.222 /270 /271 /303 /340 /341
as of model year 2010
MODEL 204.0 /2 /9 (except 204.077 /277), 211.0 /2 /6 as of 15.8.07, 212, 218, 219.3 as of 14.8.07
MODEL 463.306 /336
MODEL 463.202 /236 /237 up to model year 2013
as of model year 2010, /model refinement package 2012
MODEL 463.346 up to model year 2013 /model refinement package 2012

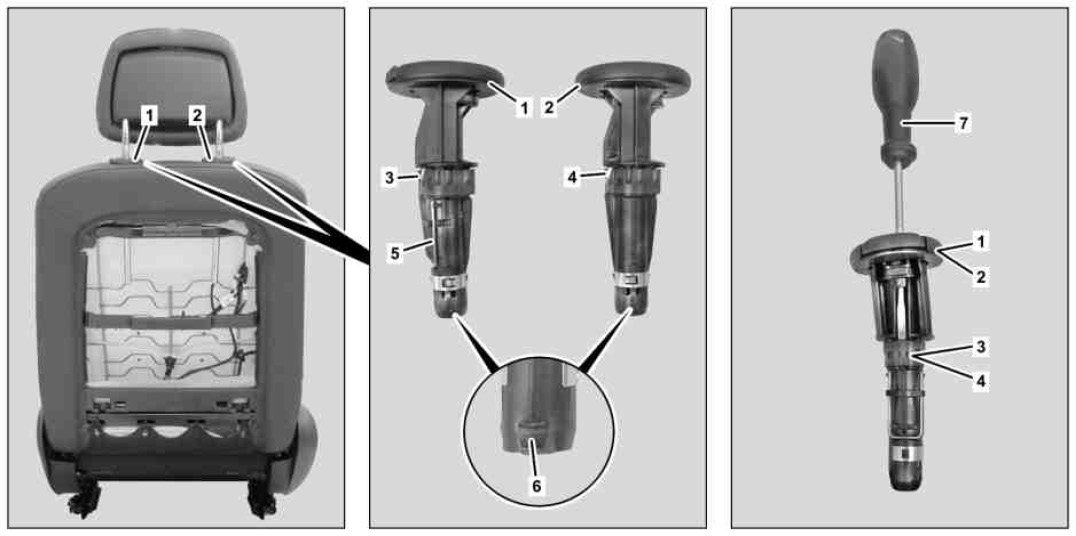

Shown on model 204, right front seat

1 Left head restraint guide
2 Right head restraint guide
3 Catch hook
4 Catch hook
5 Spring
6 Catch hook
7 Screwdriver
