Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Removal and Replacement >> AR91.10-P-1000T Remove/Install Front Seats

AR91.10-P-1000T Remove/Install Front Seats

AR91.10-P-1000T Remove/Install Front Seats

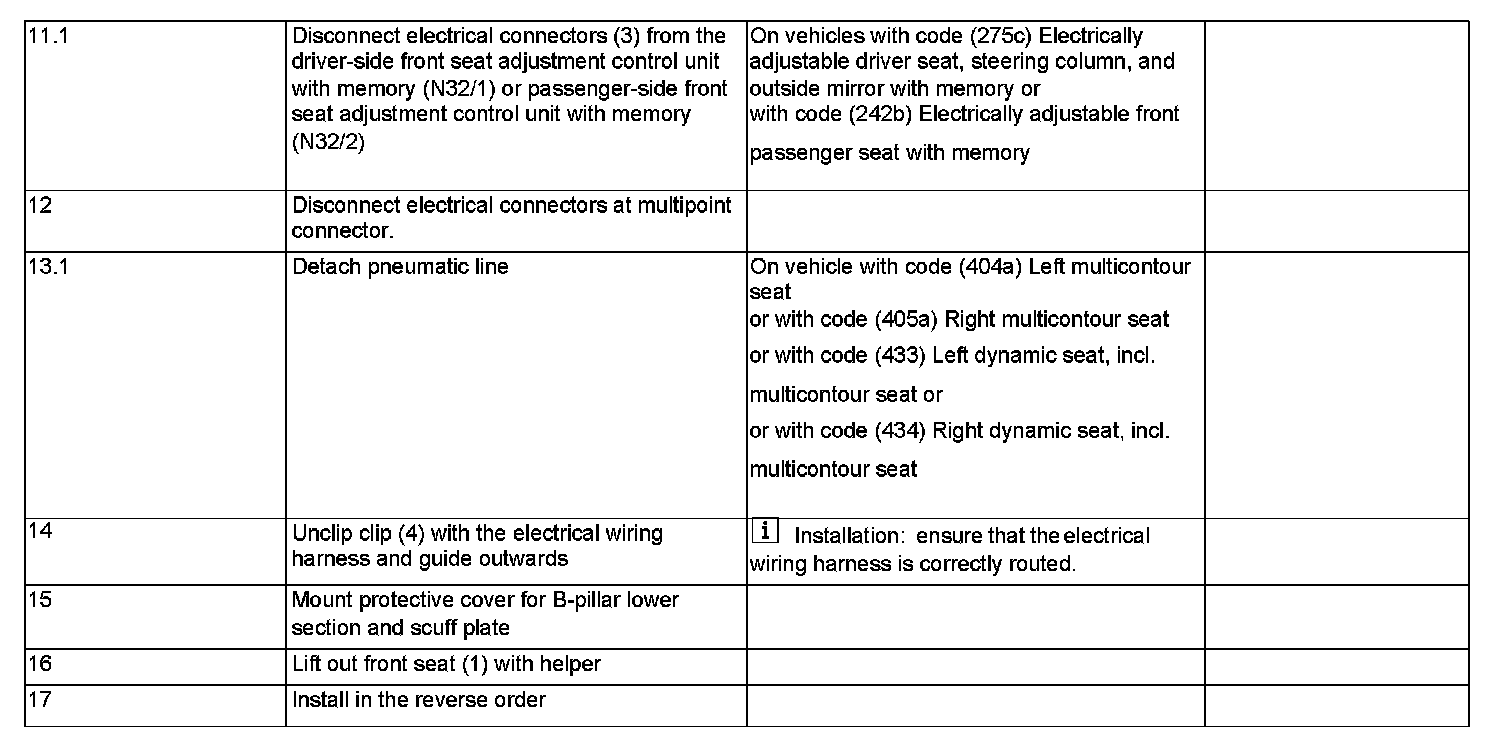

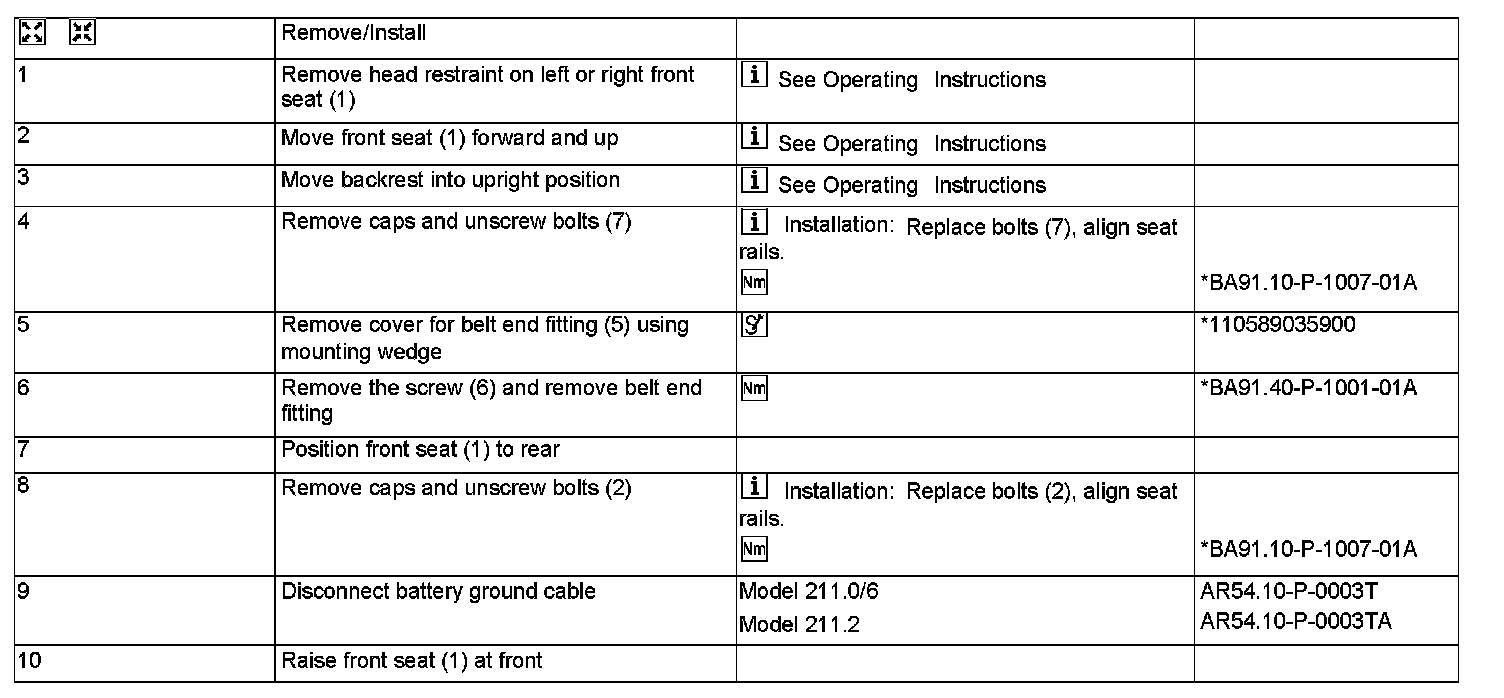

Part 1:

Part 2:

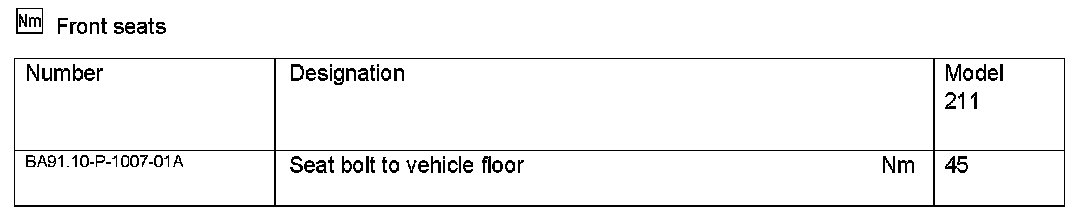

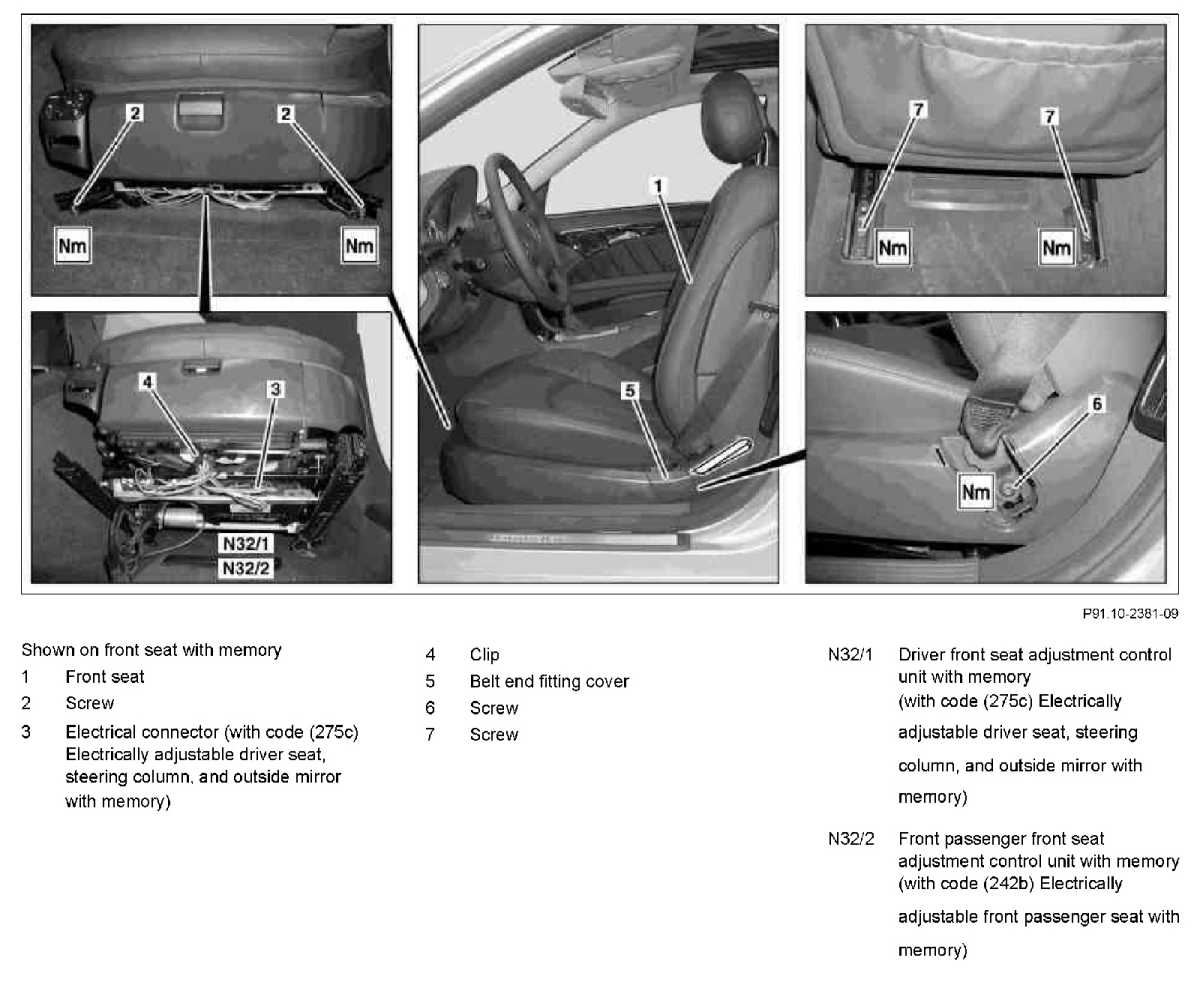

Front Seats:

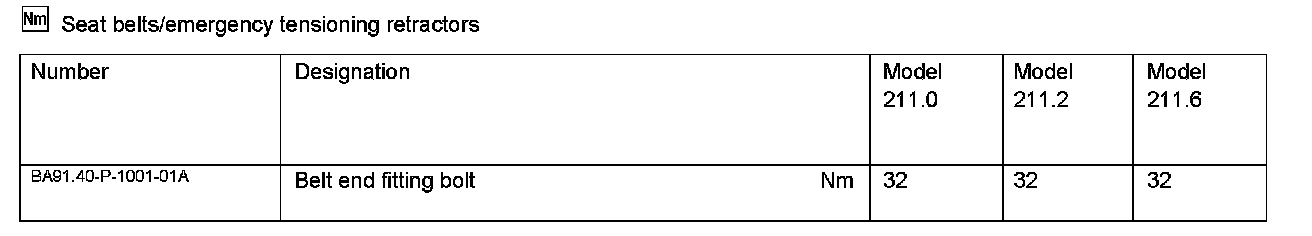

Seat Belts/Emergency Tensioning Retractors:
