AR91.10-P-3310TD Remove/Install Seat Cushion



AR91.10-P-3310TD Remove/Install Seat Cushion
- with CODE (404) Left multicontour seat
- with CODE (405) Right multicontour seat
- with CODE (433) Left dynamic seat, incl. multicontour seat
- with CODE (434) Right dynamic seat, incl. multicontour seat

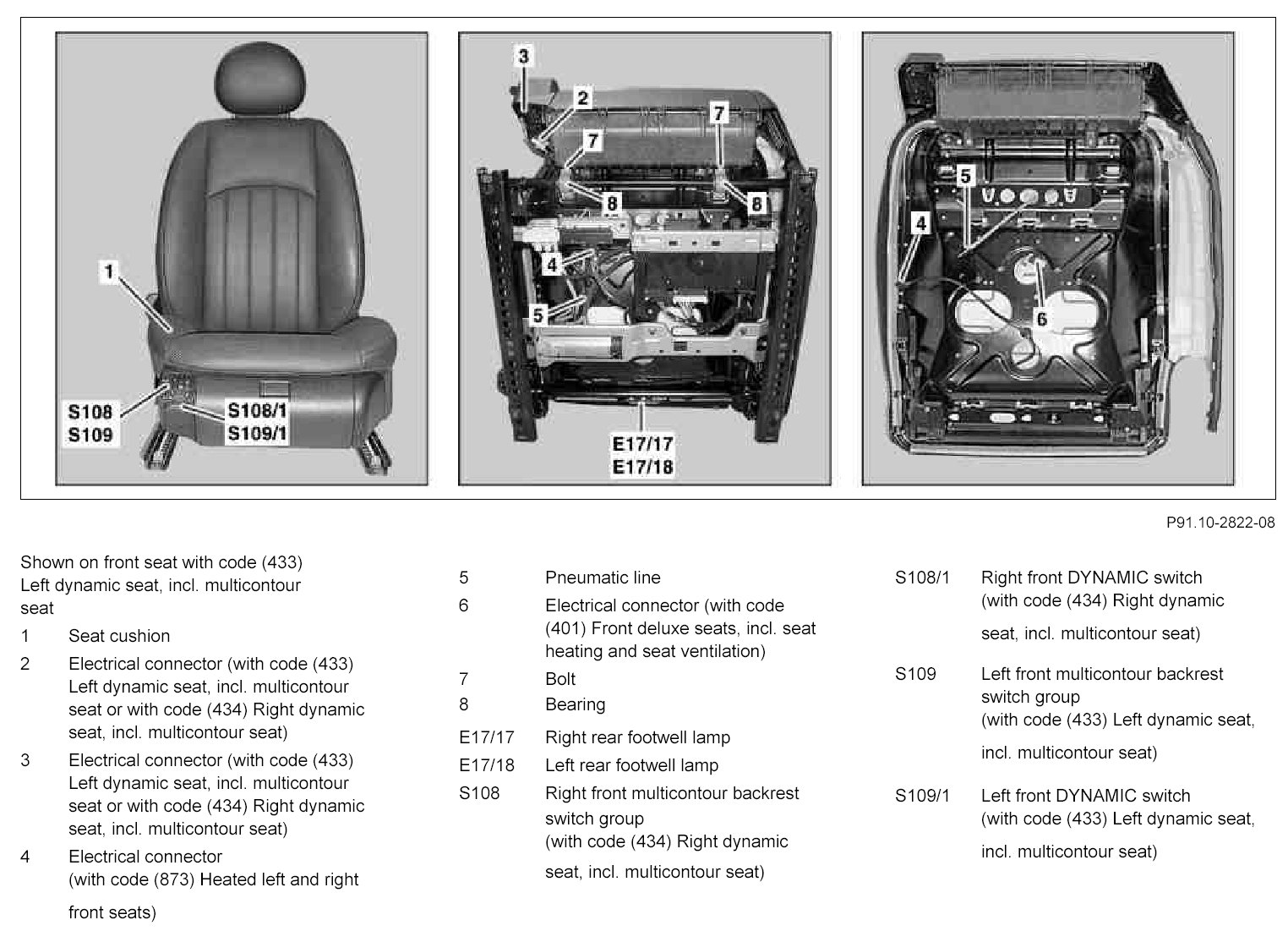

Component Identification:

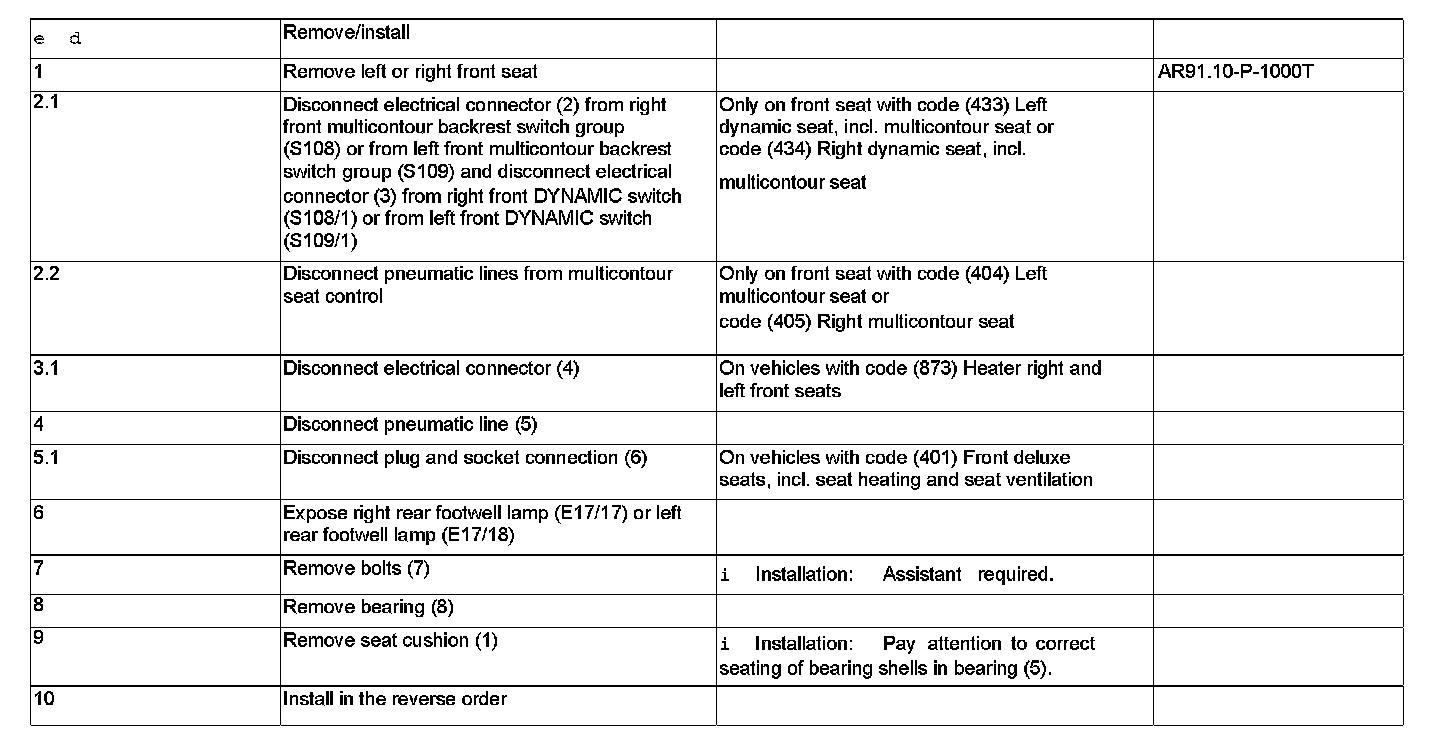

Steps 1 - 10:
