AR91.10-P-3312TA Remove/Install Seat Cushion Cover
AR91.10-P-3312TA Remove/Install Seat Cushion Cover
AR91.10-P-3312TA Removing and Installing Seat Cushion Cover

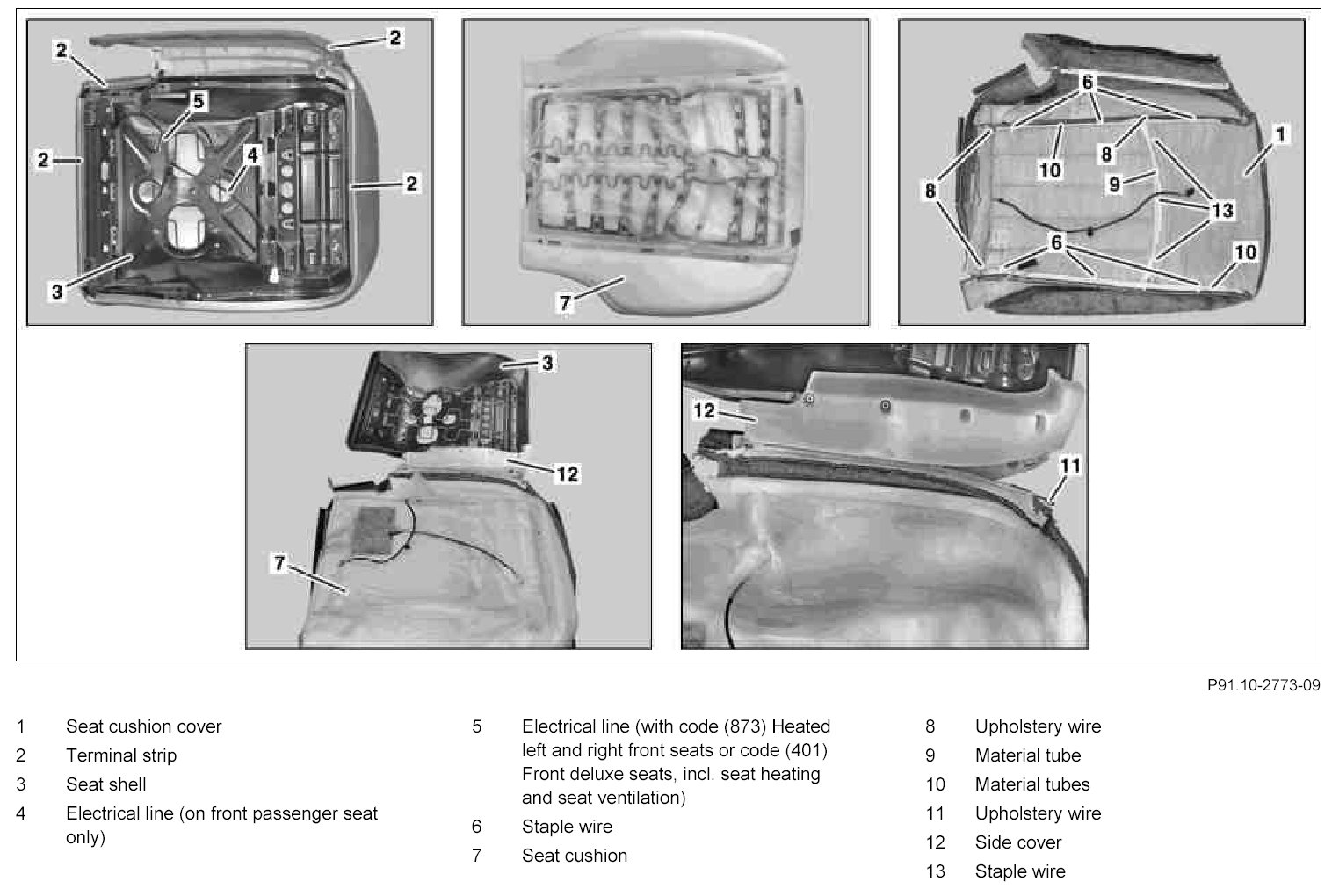

Component Identification:

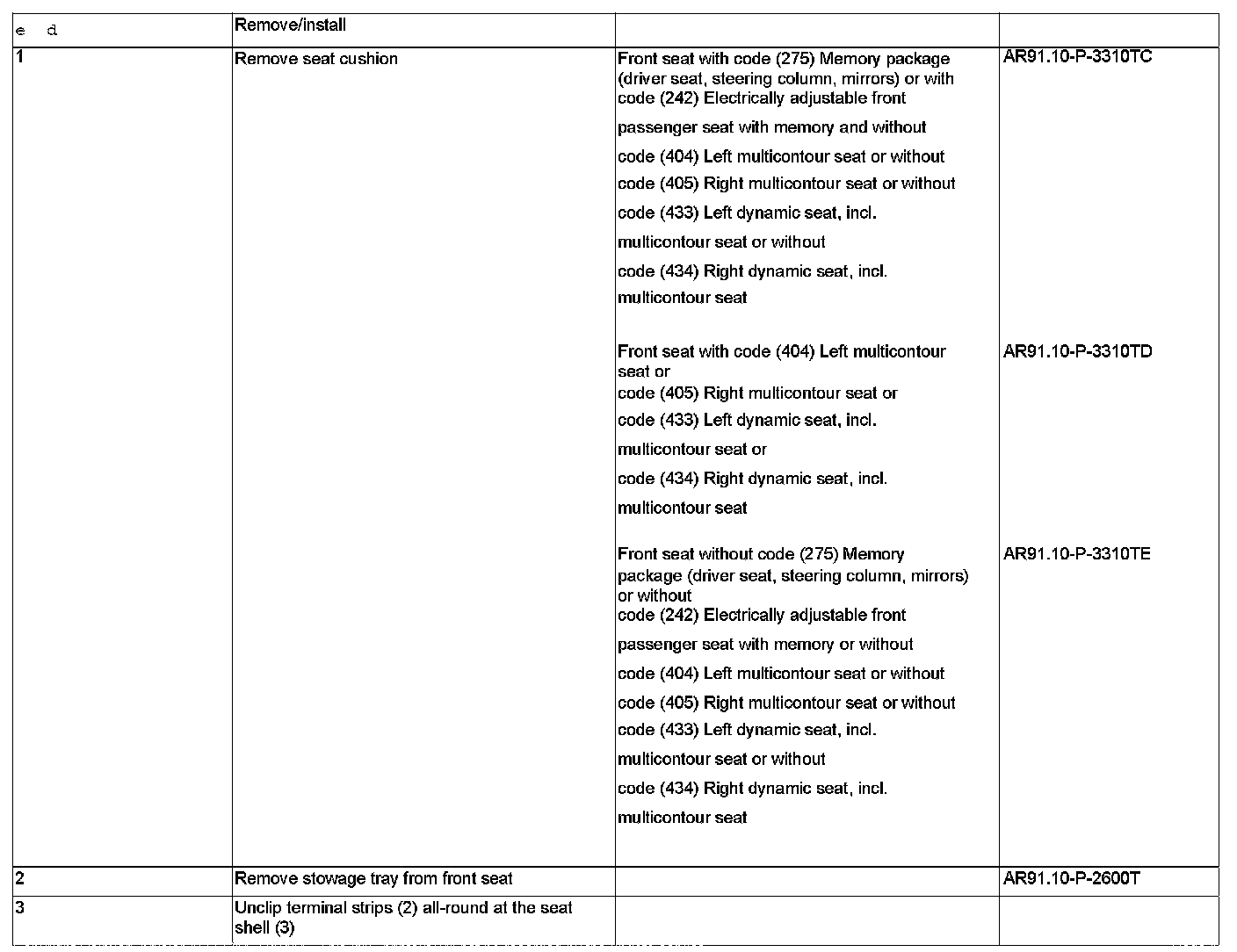

Steps 1 - 3:

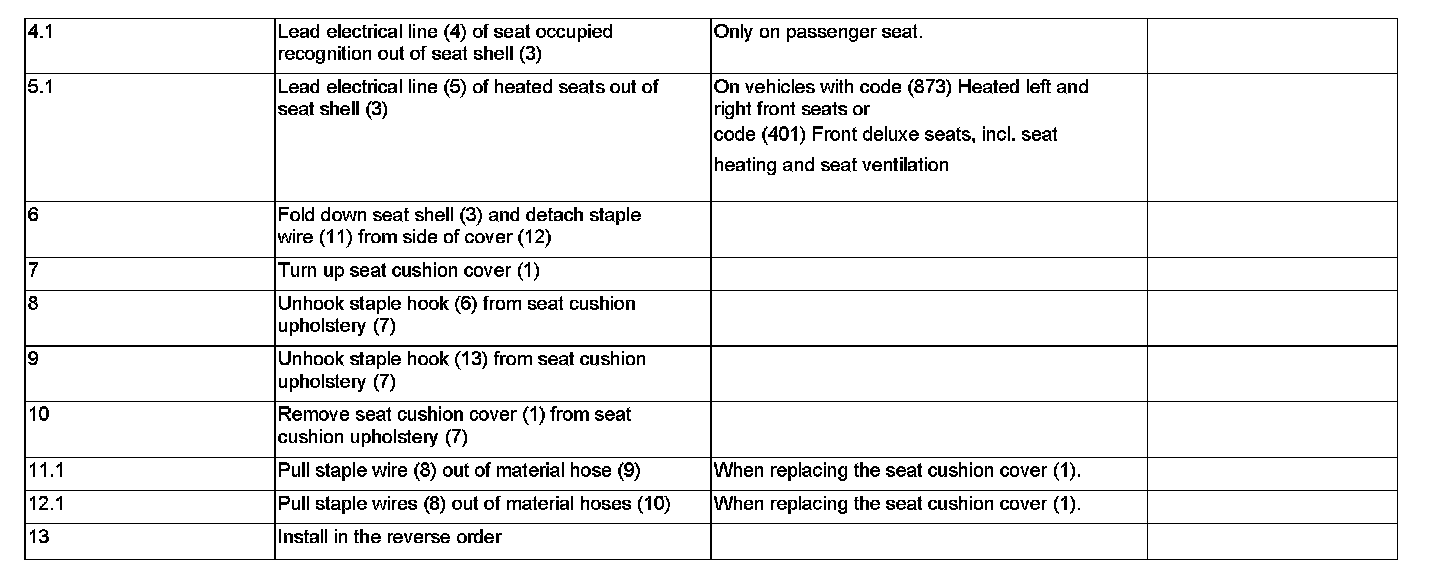

Steps 4.1 - 13:
