AR91.25-P-1770TA Remove/Install Multicontour Backrest Seat Cushion Air Cushion



AR91.25-P-1770TA Removing/Installing Multicontour Backrest Seat Cushion Air Cushion
- with CODE (404) Left multicontour seat
- with CODE (405) Right multicontour seat
- with CODE (433) Left dynamic seat, incl. multicontour seat
- with CODE (434) Right dynamic seat, incl. multicontour seat

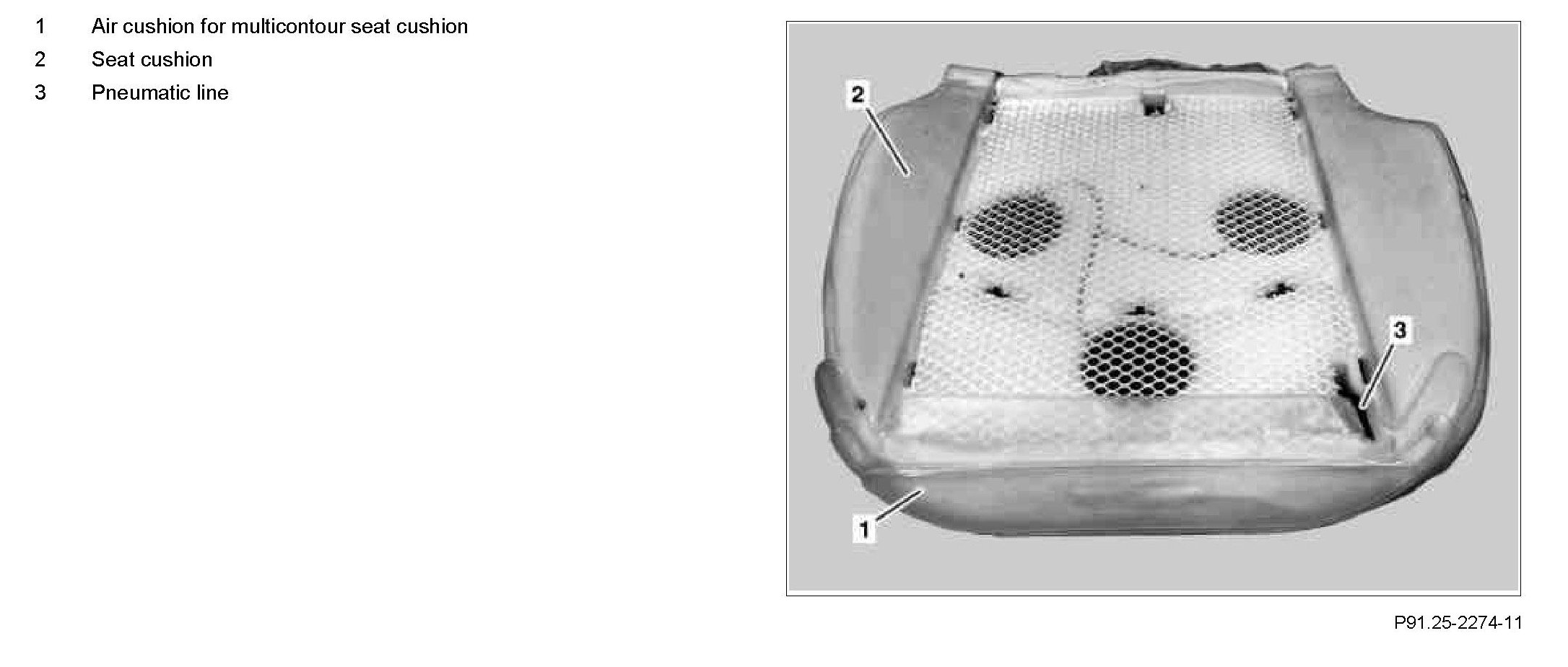

Component Identification:

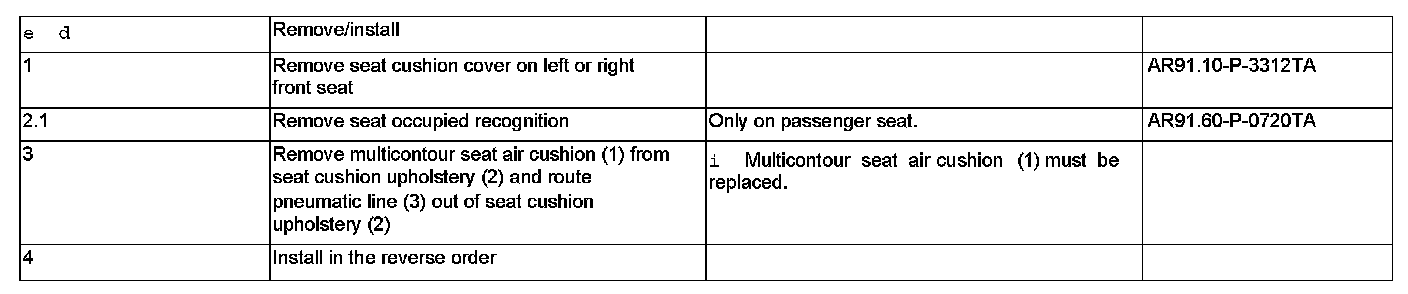

Steps 1 - 4:
