AR91.25-P-1740TA Remove/Install Multicontour Backrest Air Cushion



AR91.25-P-1740TA Remove/Install Multicontour Backrest Air Cushion
- with CODE (404) Left multicontour seat
- with CODE (405) Right multicontour seat
- with CODE (433) Left dynamic seat, incl. multicontour seat
- with CODE (434) Right dynamic seat, incl. multicontour seat

Component Identification:

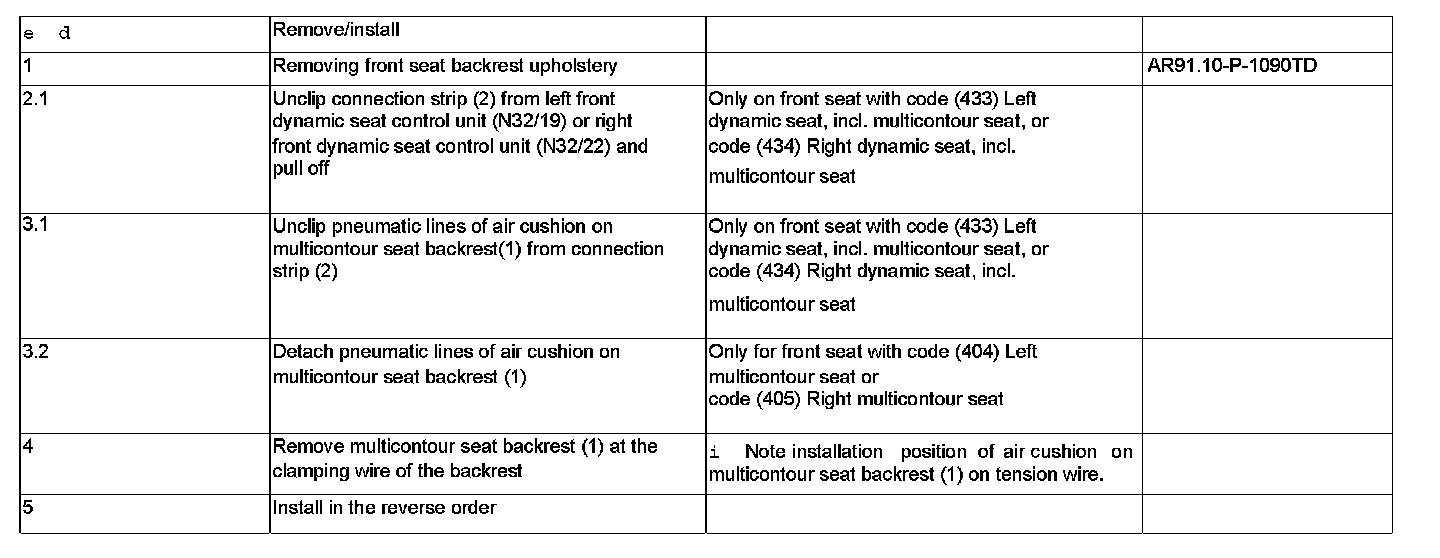

Steps 1 - 5:
