Power Seat Motor: Service and Repair
AR91.29-P-1432TA Remove/Install Front Seat Headrest Motor
- with CODE (275) Memory package (driver seat, steering column,
mirrors
)
- with CODE (242) Electrically adjustable front passenger seat with memory

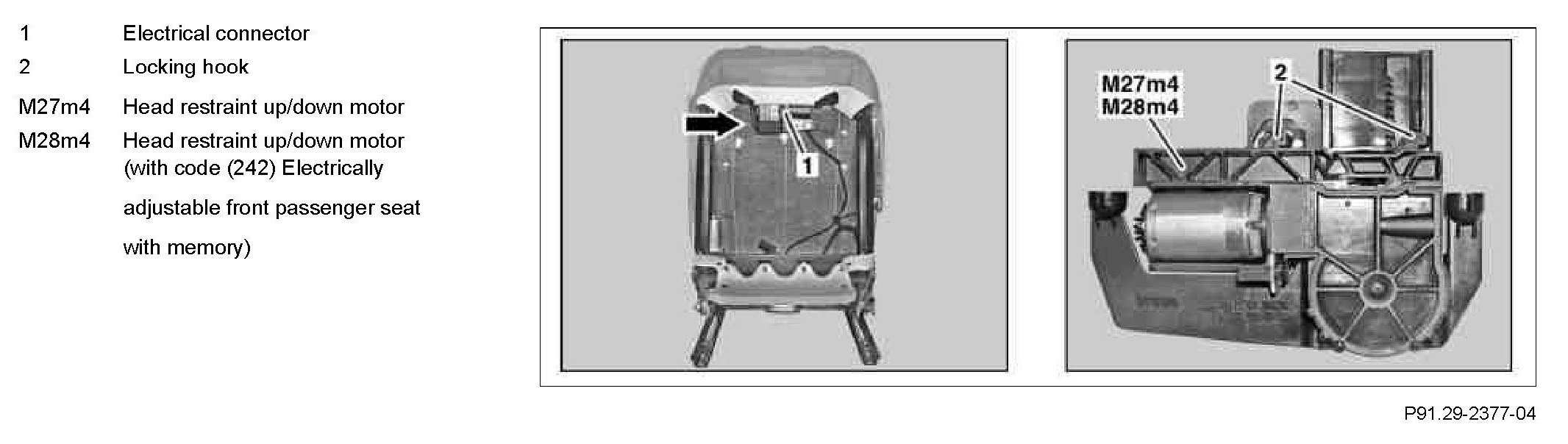

Component Identification:
Steps 1 - 4:
