AR77.21-P-0100T Remove/Install Panoramic Roof Wind Deflector

AR77.21-P-0100T Remove/Install Panoramic Roof Wind Deflector
- with CODE (413) Panoramic sliding roof

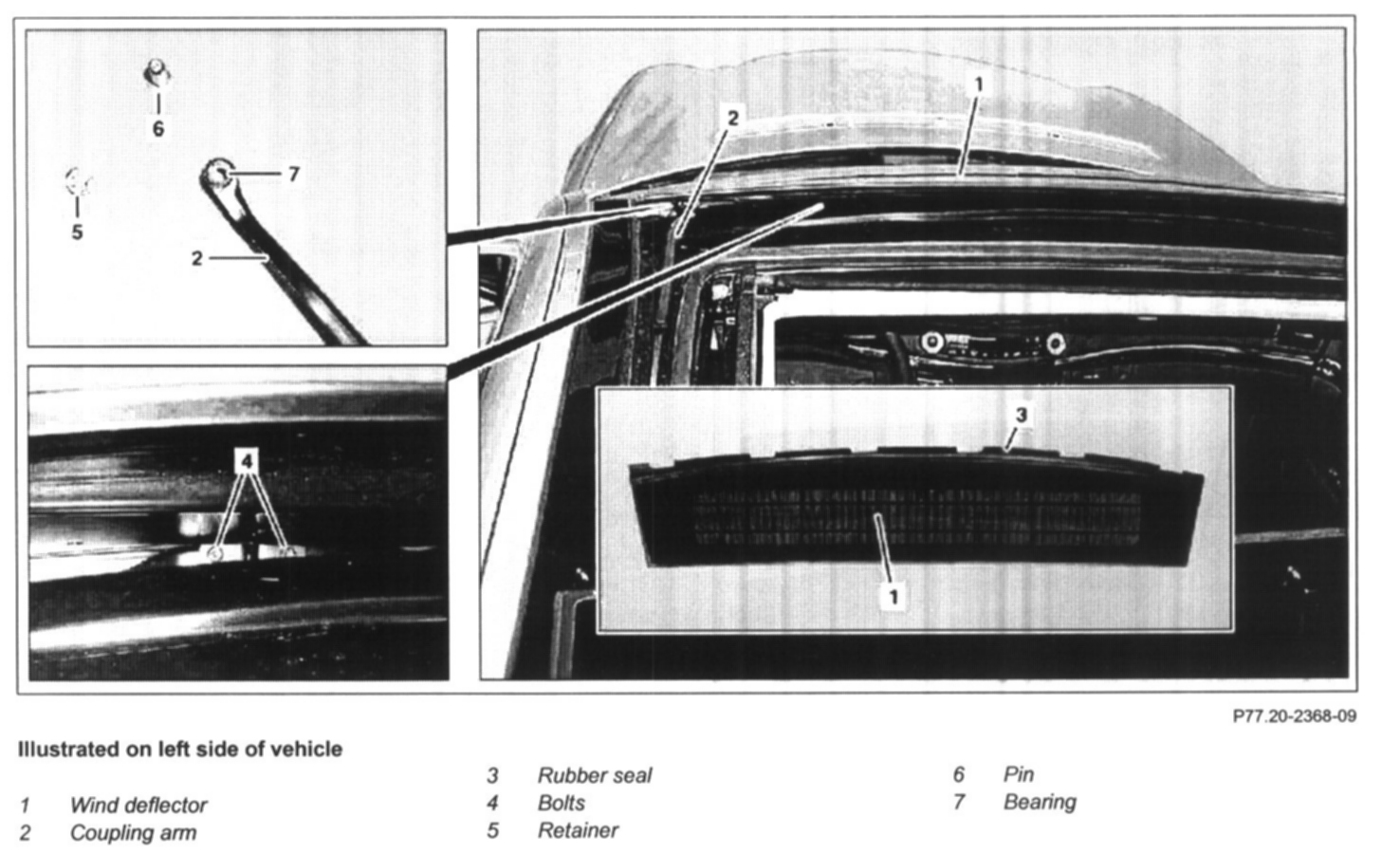

Illustrated On Left Side Of Vehicle:

DANGER:
- Risk of injury to fingers being Jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Open panoramic roof
2 Remove molding on windshield

NOTE: Installation: Sealing rubber (3) must be pinched tightly together with the windshield molding.

3 Cover guide rail in area of coupling arm (2) with clean rag
4 Pull out retainer (5) and press out bolt (6)

NOTE: Installation: position must be noted. Bolts (6) in bearing (7) should not have perceptible play, if necessary replace bearing (7), bolt (6) and retainer (5).

5 Remove bolts (4)
6 Remove wind deflector (1)

NOTE:
- Rubber seal can be glued (3), loosen carefully.
- Installation: When replacing wind deflector (1) use template included.

7 Install in the reverse order
